Wiper/Washer System Schematics

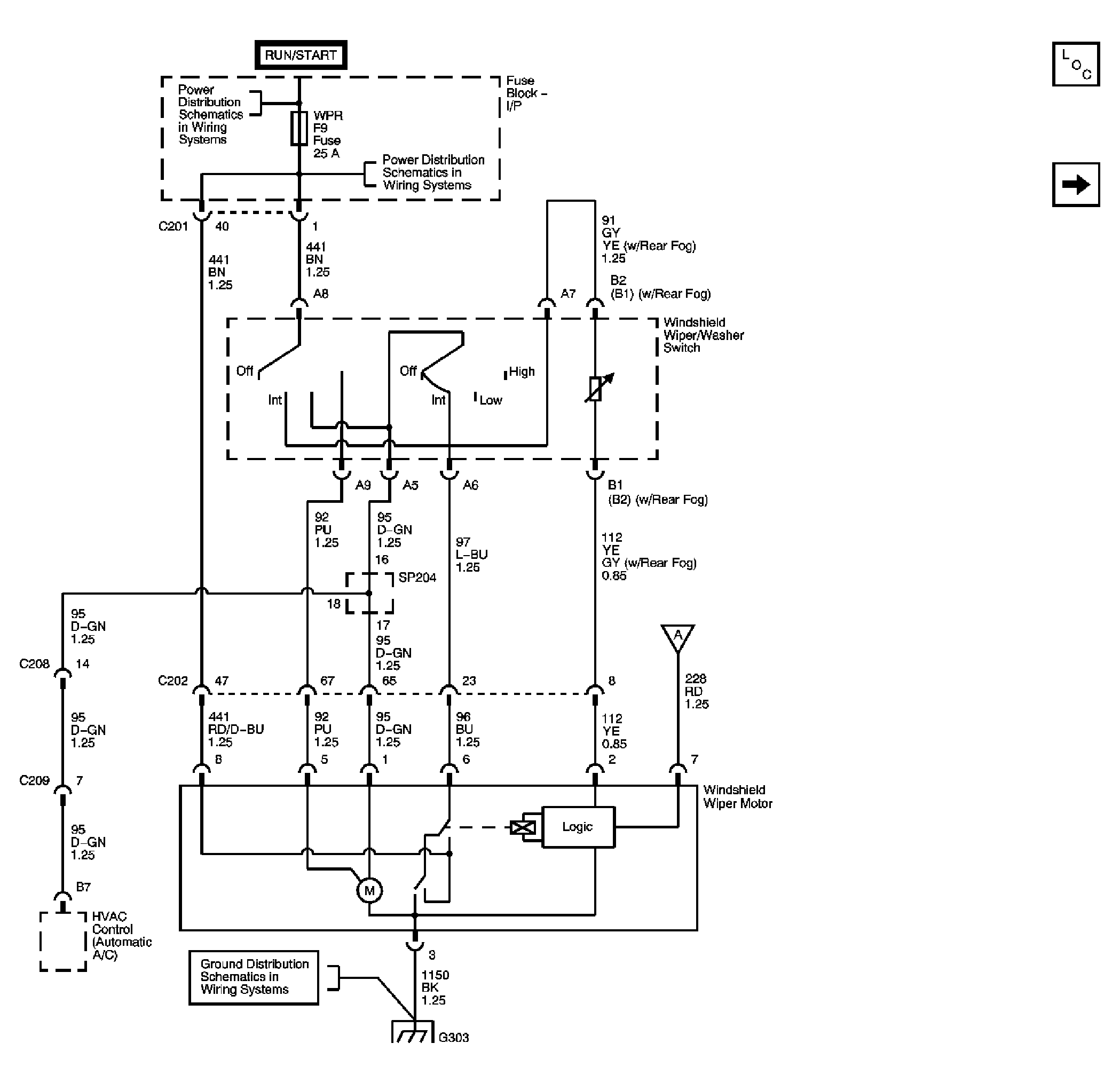

Fig 1: Front Wipers Schematic (w/o Rain Sensor)
GM1360856Courtesy of GENERAL MOTORS CORP.

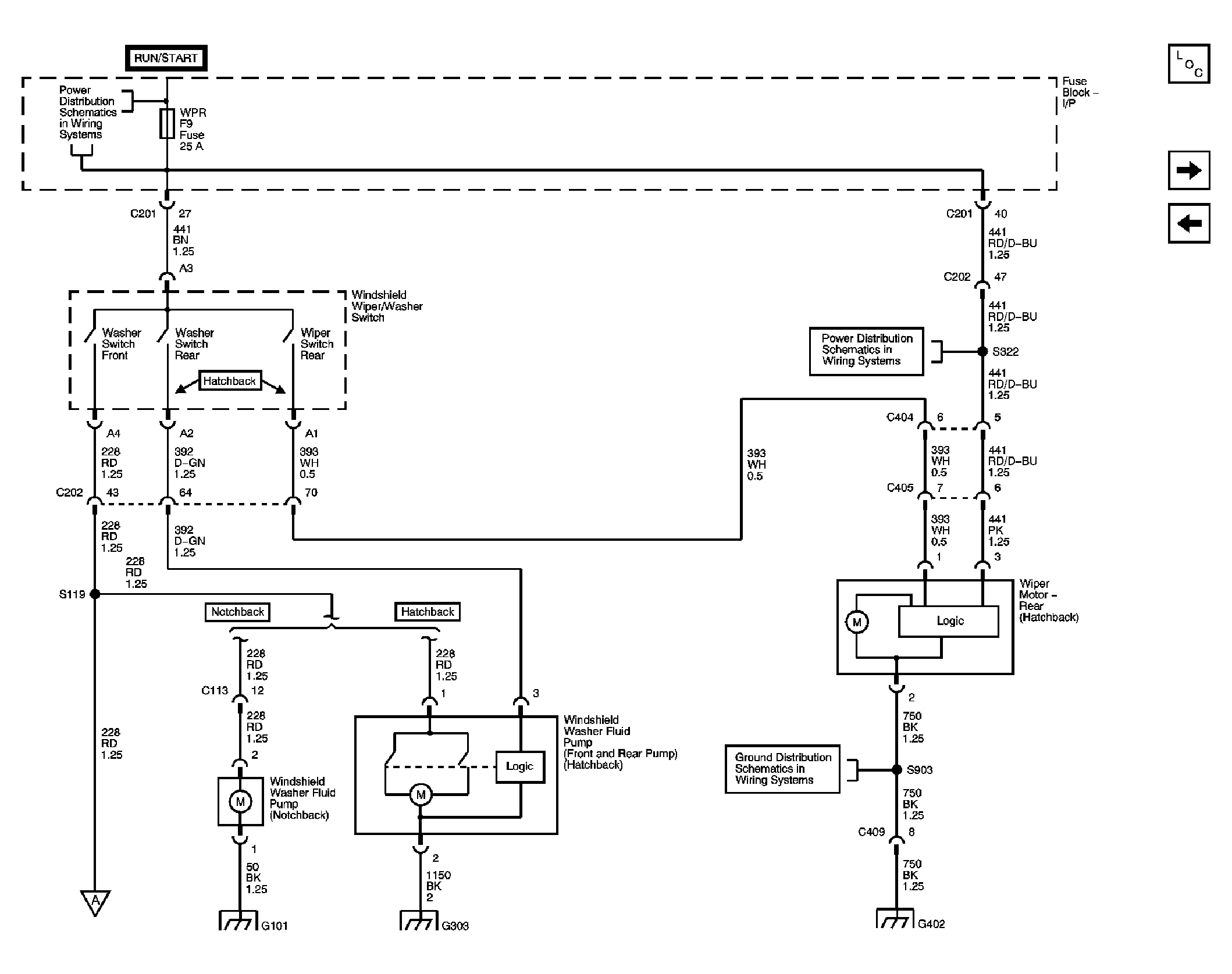

Fig 2: Front and Rear Washers/Rear Wiper Schematic
GM1455071Courtesy of GENERAL MOTORS CORP.

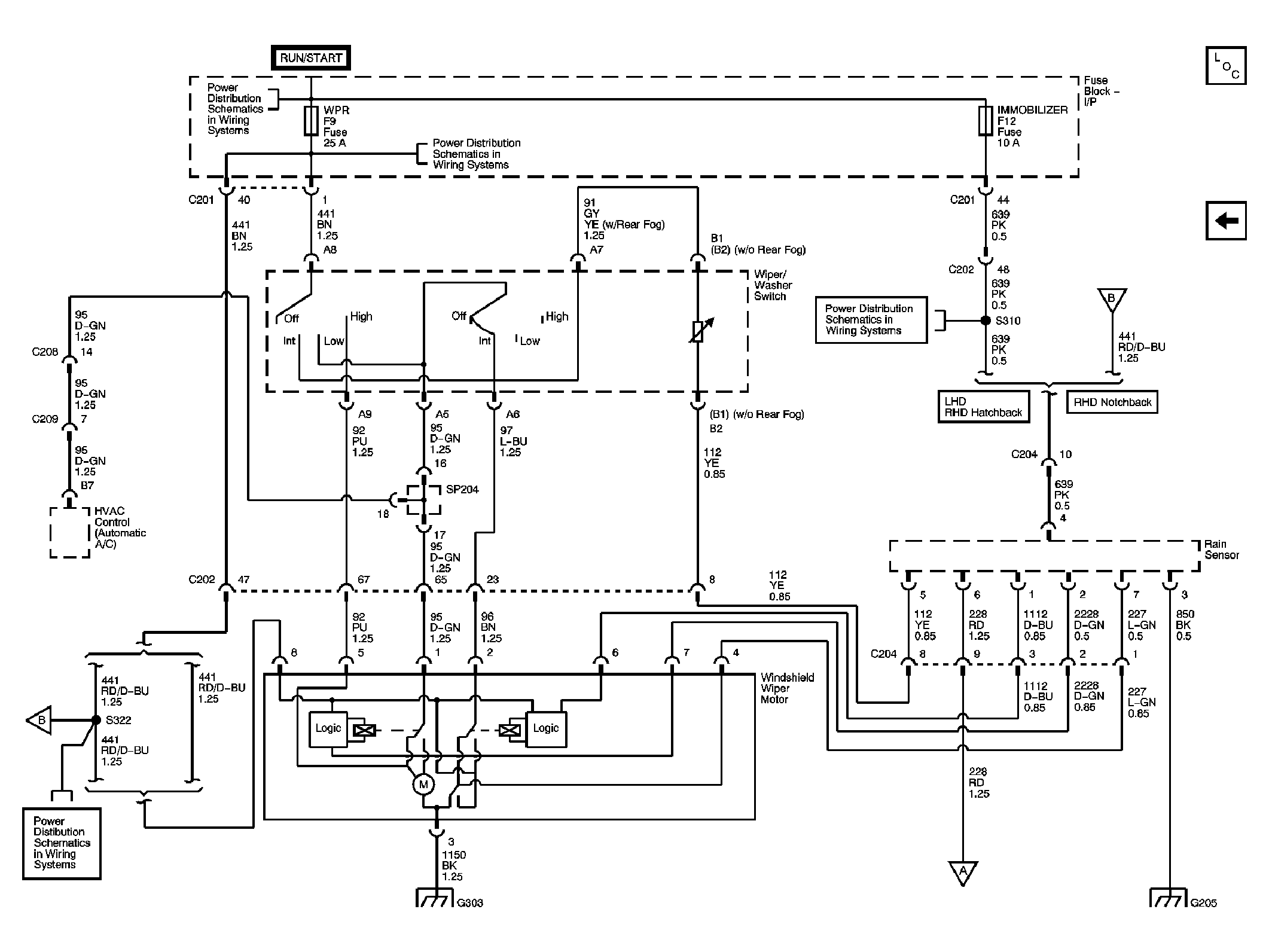

Fig 3: Front Wipers Schematic (w/ Rain Sensor)
GM1360855Courtesy of GENERAL MOTORS CORP.
