Installation Procedure

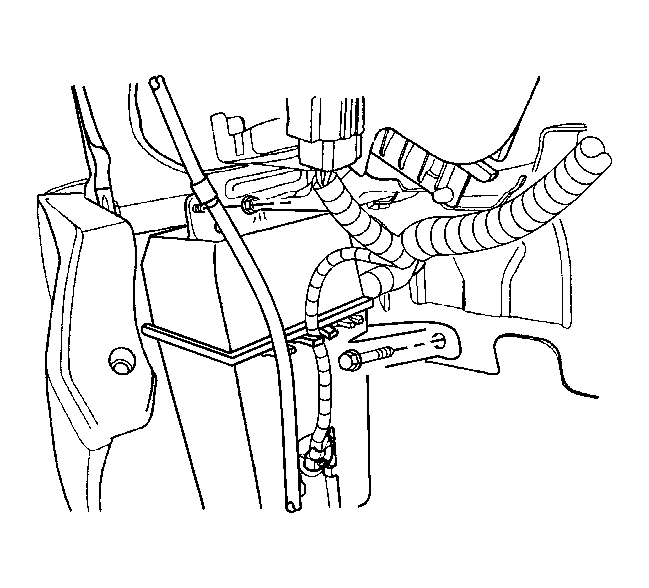

    Fig 1: Identifying Reservoir Bolts
    GM1308538Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the reservoir with the bolts.

    Tighten:  Tighten the washer fluid reservoir bolts to 8 N.m (71 lb in)  .

  2. Connect the reservoir pump electrical connector.
  3. Connect the washer hose to the washer pump.

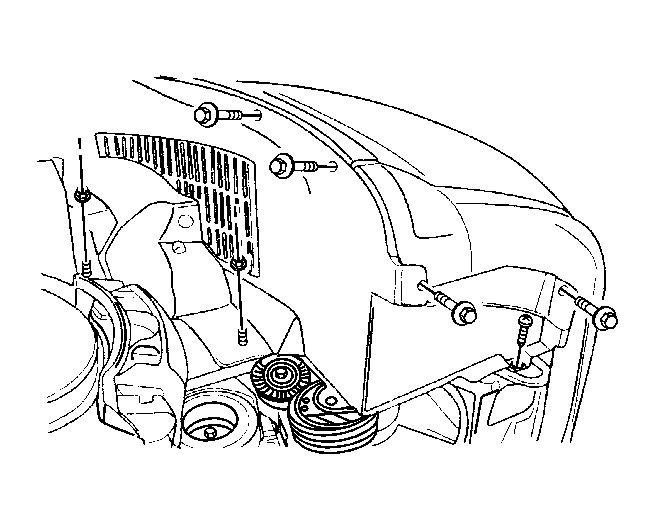

    4. Fig 2: Identifying Front Wheel Splash Shield Bolts And Screws
    GM1308537Courtesy of GENERAL MOTORS CORP.
  4. Install the front wheel well splash shield with the bolts and screws.

    Tighten:  Tighten the front wheel well splash shield bolts to 1.5 N.m (13 lb in)  .

  5. Install the front left wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  6. Connect the negative battery cable.
