Installation Procedure

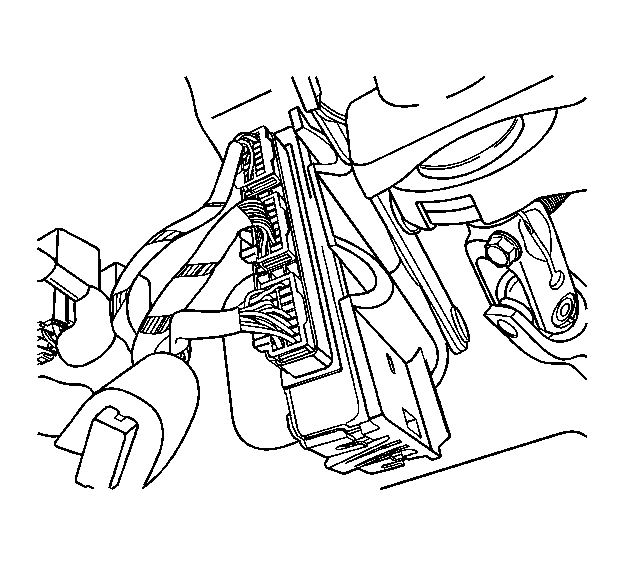

    Fig 1: Identifying TCM Wiring Connectors
    GM1290879Courtesy of GENERAL MOTORS CORP.
  1. Install the TCM to the bracket.
  2. Connect the wiring connectors.
  3. Connect the negative battery cable.
