Installation Procedure

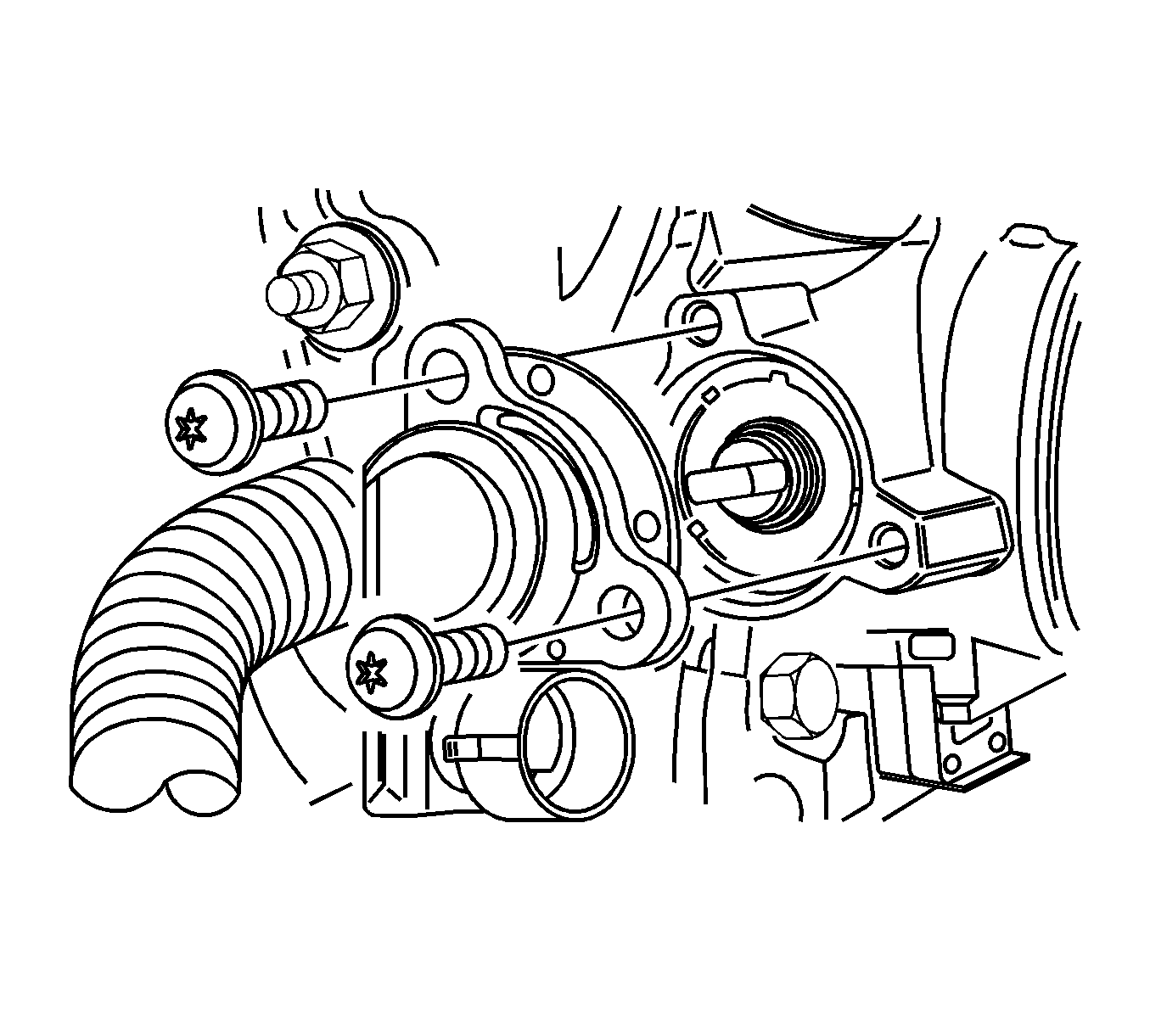

    Fig 1: View Of Throttle Position Sensor And Bolts
    GM1241929Courtesy of GENERAL MOTORS CORP.
  1. With the throttle valve closed, position the TP sensor on the throttle shaft. Align the TP sensor with the bolt holes.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the TP sensor retaining bolts.

    Tighten:  Tighten the throttle position sensor retaining bolts to 2 N.m (18 lb in)  .

  3. Connect the TP sensor connector.
  4. Connect the negative battery cable.
