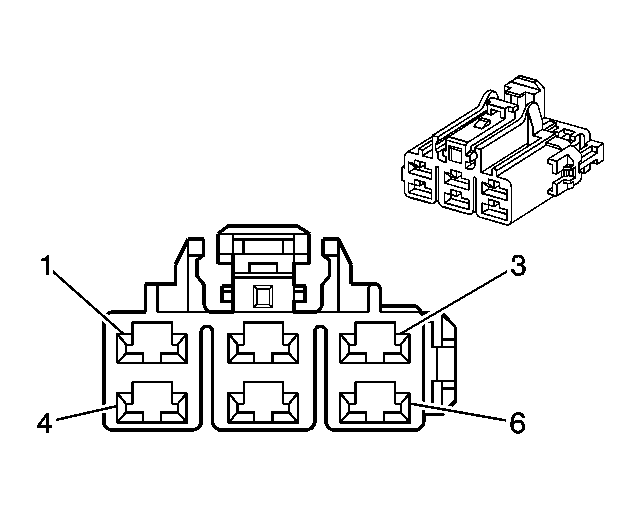

Power and Grounding Connector End Views
Ignition Switch
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- KET MG 650887
- 6-Way F 250 III Series (WH)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
OG |
300 |
Ignition 3 Voltage |
| 2 |
RD |
642 |
Battery Positive Voltage |
| 3 |
D-BU |
5 |
Crank Voltage |
| 4 |
PK |
3 |
Ignition 1 Voltage |
| 5 |
RD |
1642 |
Battery Positive Voltage |
| 6 |
BN |
4 |
Accessory Voltage |
