Removal Procedure

    Fig 1: View Of Drain Hose
    GM1308643Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the headliner. Refer to Headliner Replacement .
  3. Remove the drain hoses.
    4. Fig 2: View Of Sunroof Motor And Screws
    GM1309162Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors.
  5. Remove the screws and the motor.

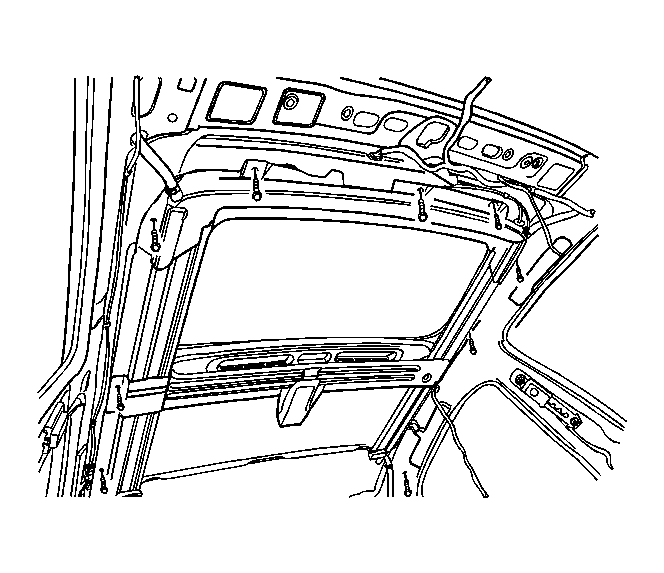

    6. Fig 3: View Of Sunroof Housing Bolts
    GM1309165Courtesy of GENERAL MOTORS CORP.
  6. Remove the motor control module.
  7. Remove the bolts and the housing from the vehicle.
