Rear Side Marker Lamp Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

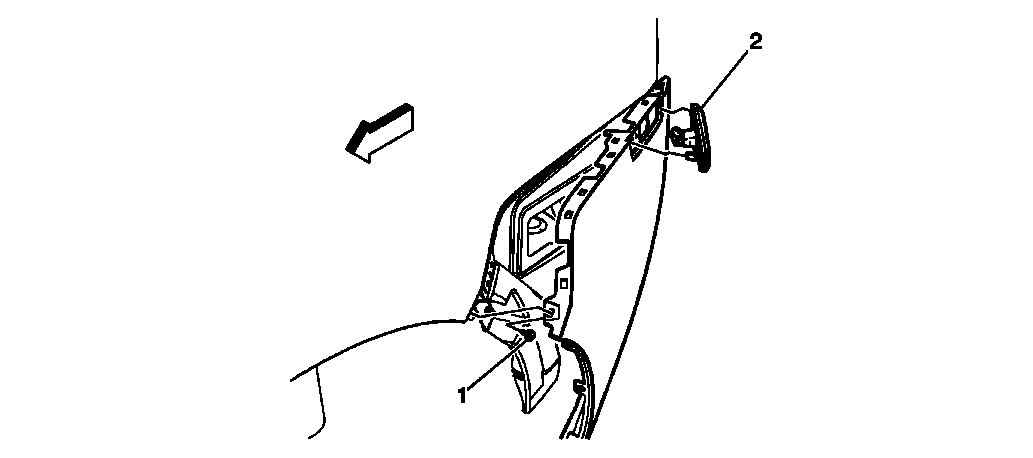

Fig 1: Identifying Rear Side Marker Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Panel Liner Replacement .
1	Rear Bumper Fascia Screw CAUTION: Refer to Fastener Caution . TIP: The screw is hidden under the inside edge of the bumper fascia. Tighten 10 N.m (89 lb in)
2	Rear Side Marker Lamp Procedure Flex the front edge of the rear bumper fascia outward far enough in order to access the electrical connector and the locking tab on the lamp assembly. Disconnect the electrical connector from the lamp socket. Depress the locking tab rearward towards the lamp socket and pull the front edge of the lamp out first. Disengage the lamp from the rear bumper fascia.

Callout

Component Name

Preliminary Procedure
Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Panel Liner Replacement .

Rear Bumper Fascia Screw

CAUTION:

Refer to Fastener Caution .

TIP: The screw is hidden under the inside edge of the bumper fascia.
Tighten
10 N.m (89 lb in)

Rear Side Marker Lamp

Procedure

Flex the front edge of the rear bumper fascia outward far enough in order to access the electrical connector and the locking tab on the lamp assembly.
Disconnect the electrical connector from the lamp socket.
Depress the locking tab rearward towards the lamp socket and pull the front edge of the lamp out first.
Disengage the lamp from the rear bumper fascia.
