Power Window Schematics

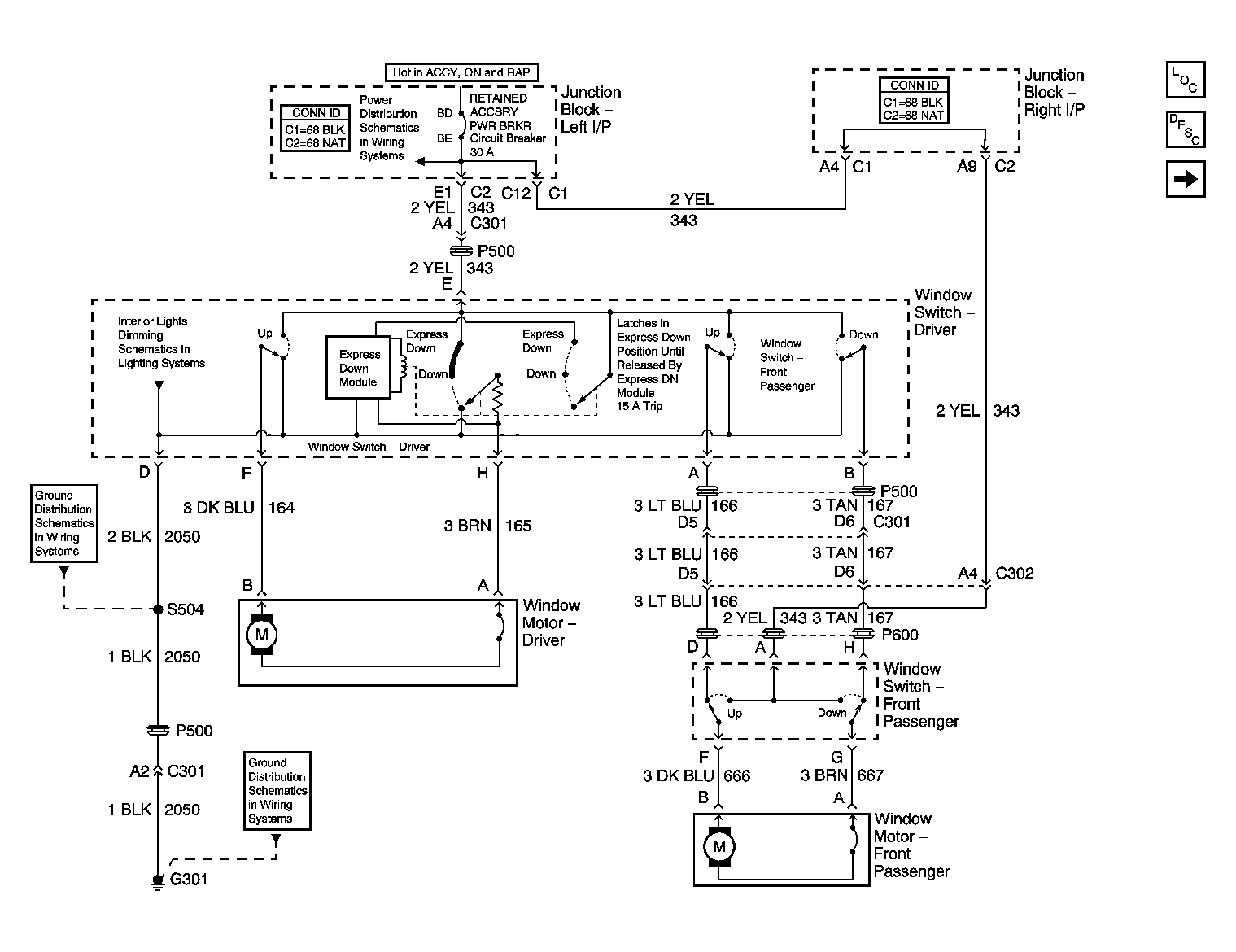

Fig 1: Monte Carlo Power Window Schematic
GM798564Courtesy of GENERAL MOTORS CORP.

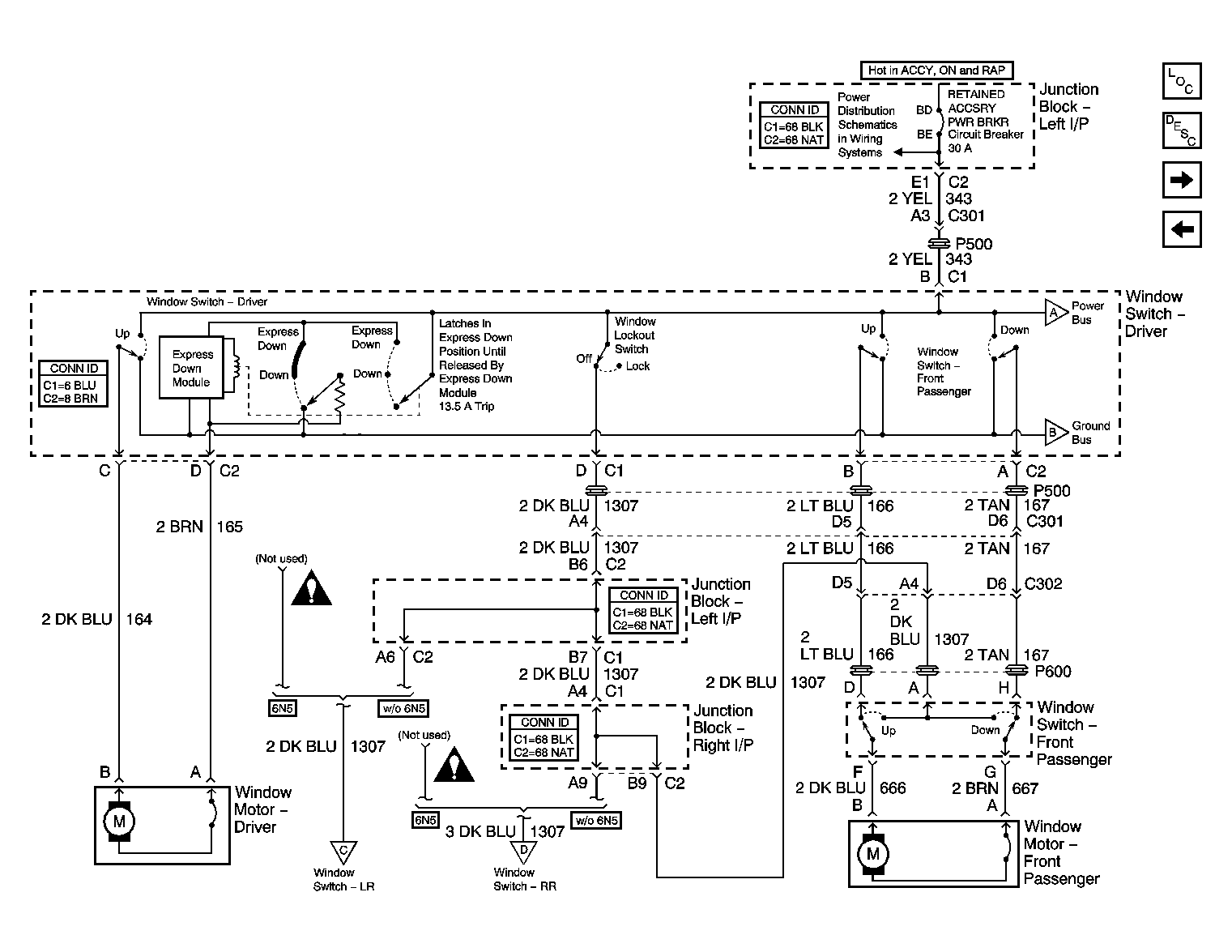

Fig 2: Impala Front Doors Power Window Schematic
GM798565Courtesy of GENERAL MOTORS CORP.

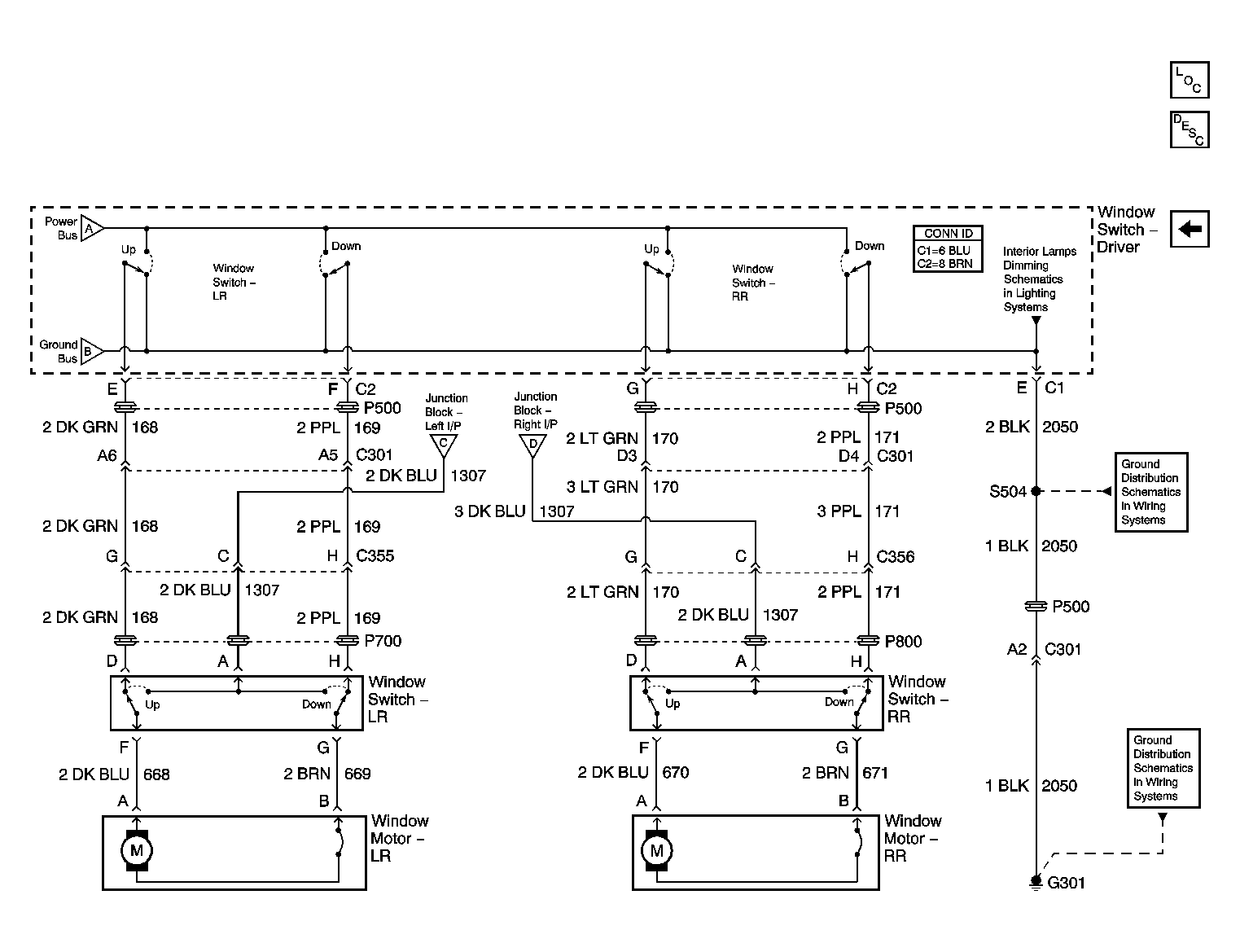

Fig 3: Impala Rear Doors Power Window Schematic
GM789085Courtesy of GENERAL MOTORS CORP.
