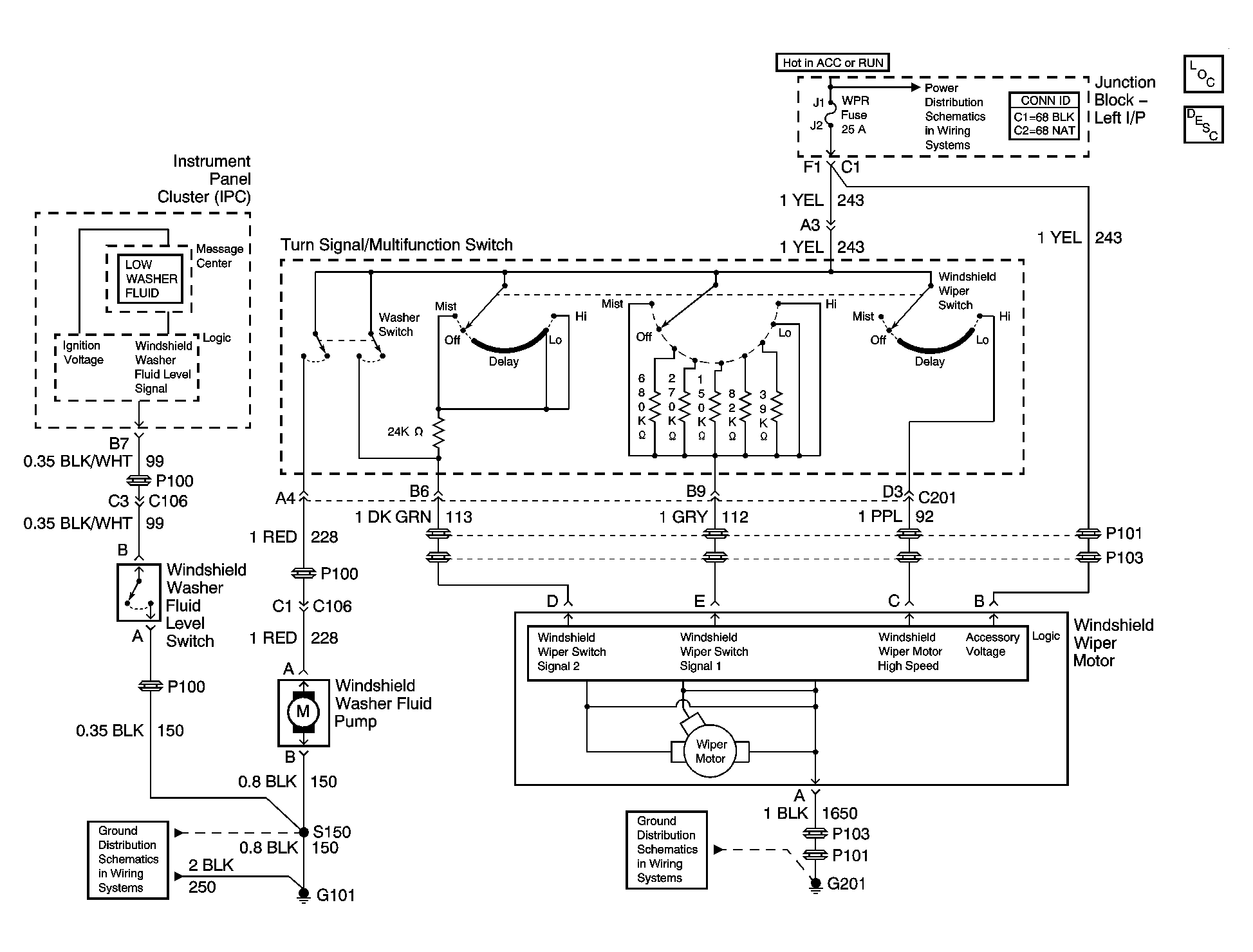

Home >> Chevrolet >> 2005 >> Impala SS >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Wiper/Washer Systems >> Wiper System And Washer System >> Schematic and Routing Diagrams >> Wiper/Washer System Schematics
