Body Control System Schematics

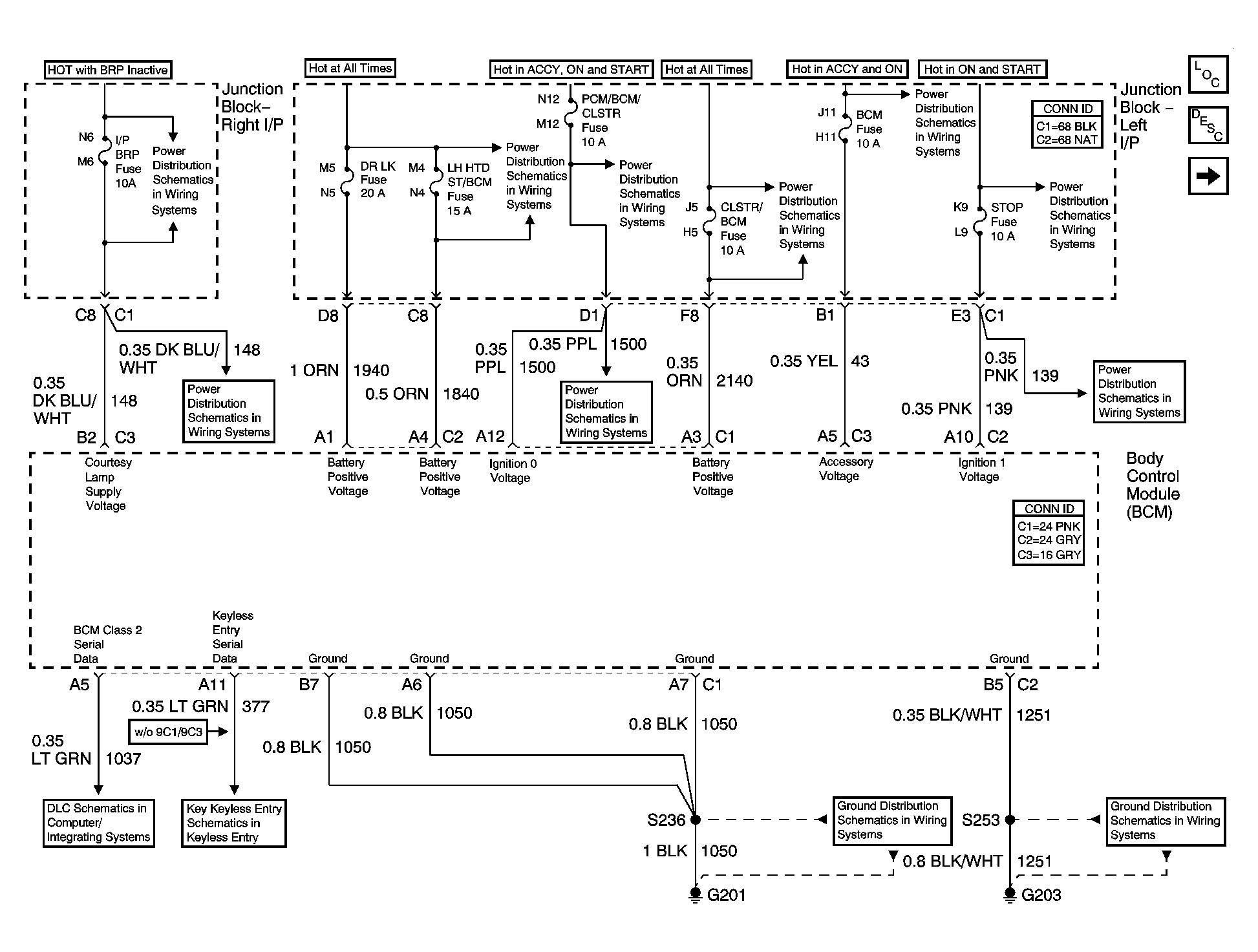

Fig 1: Grounds, Power And References To DLC And Keyless Entry
GM1551717Courtesy of GENERAL MOTORS CORP.

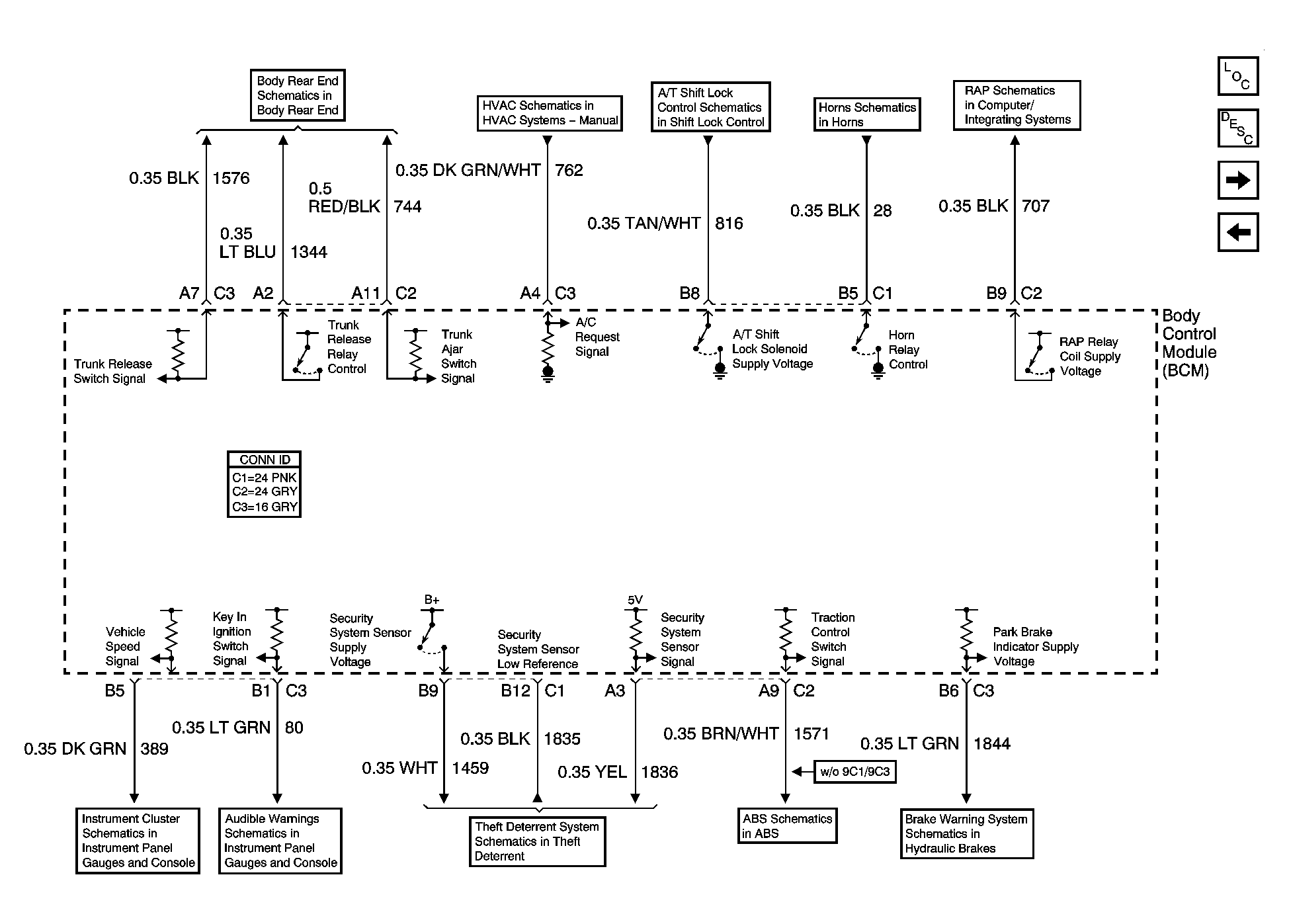

Fig 2: References to ABS, Alt Shift Lock, Audible Warnings, Body Rear End, Horns, HVAC, Hydraulic Brakes, Instrument Cluster, RAP, And Theft Deterrent
GM1551731Courtesy of GENERAL MOTORS CORP.
Fig 3: Body Control System - Lighting
GM1326333Courtesy of GENERAL MOTORS CORP.
Fig 4: References To Doors, Defogger And Lighting
GM1454533Courtesy of GENERAL MOTORS CORP.
