Automatic Transmission Controls Schematics

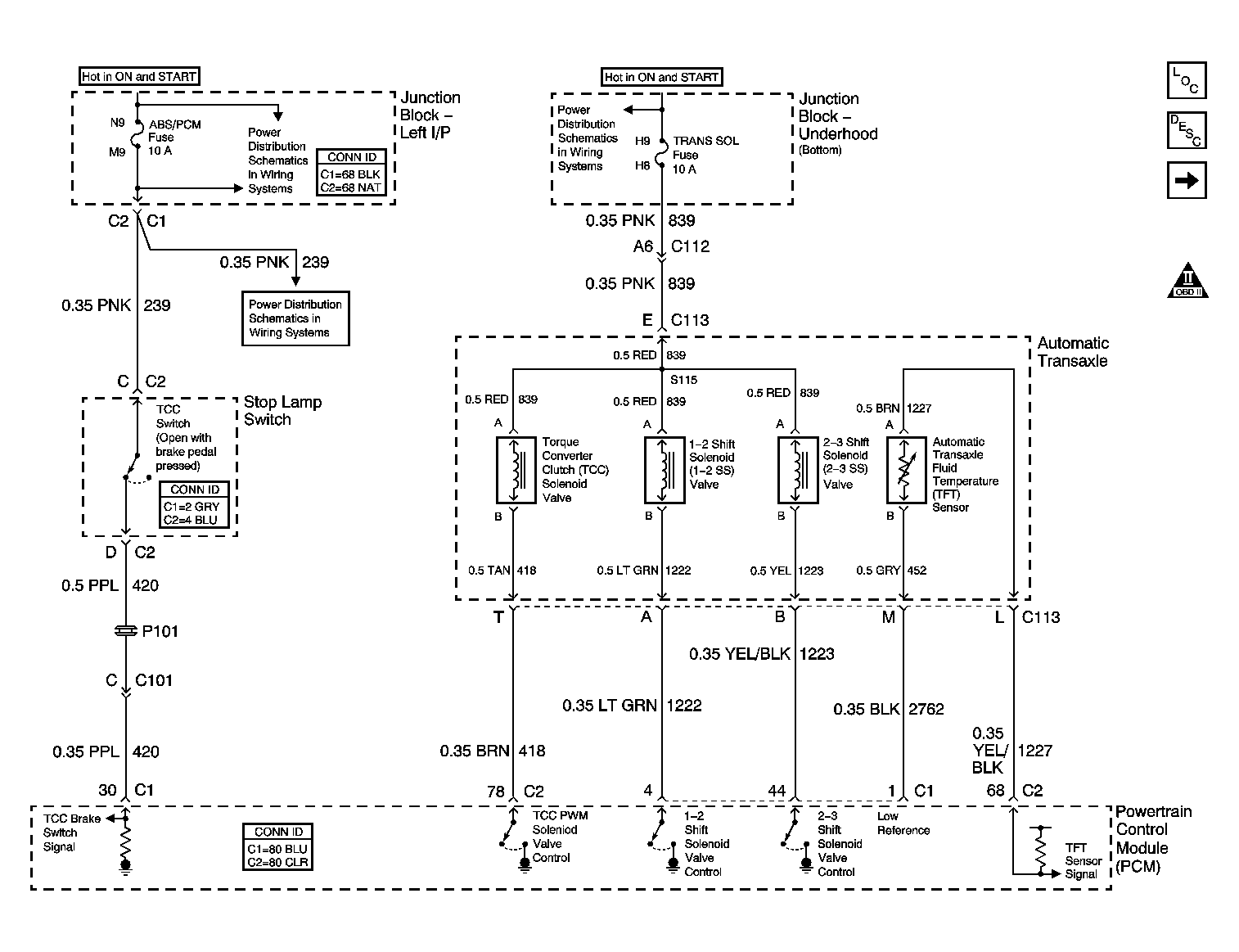

Fig 1: Solenoids, TCC & TFT Schematic

Courtesy of GENERAL MOTORS CORP.

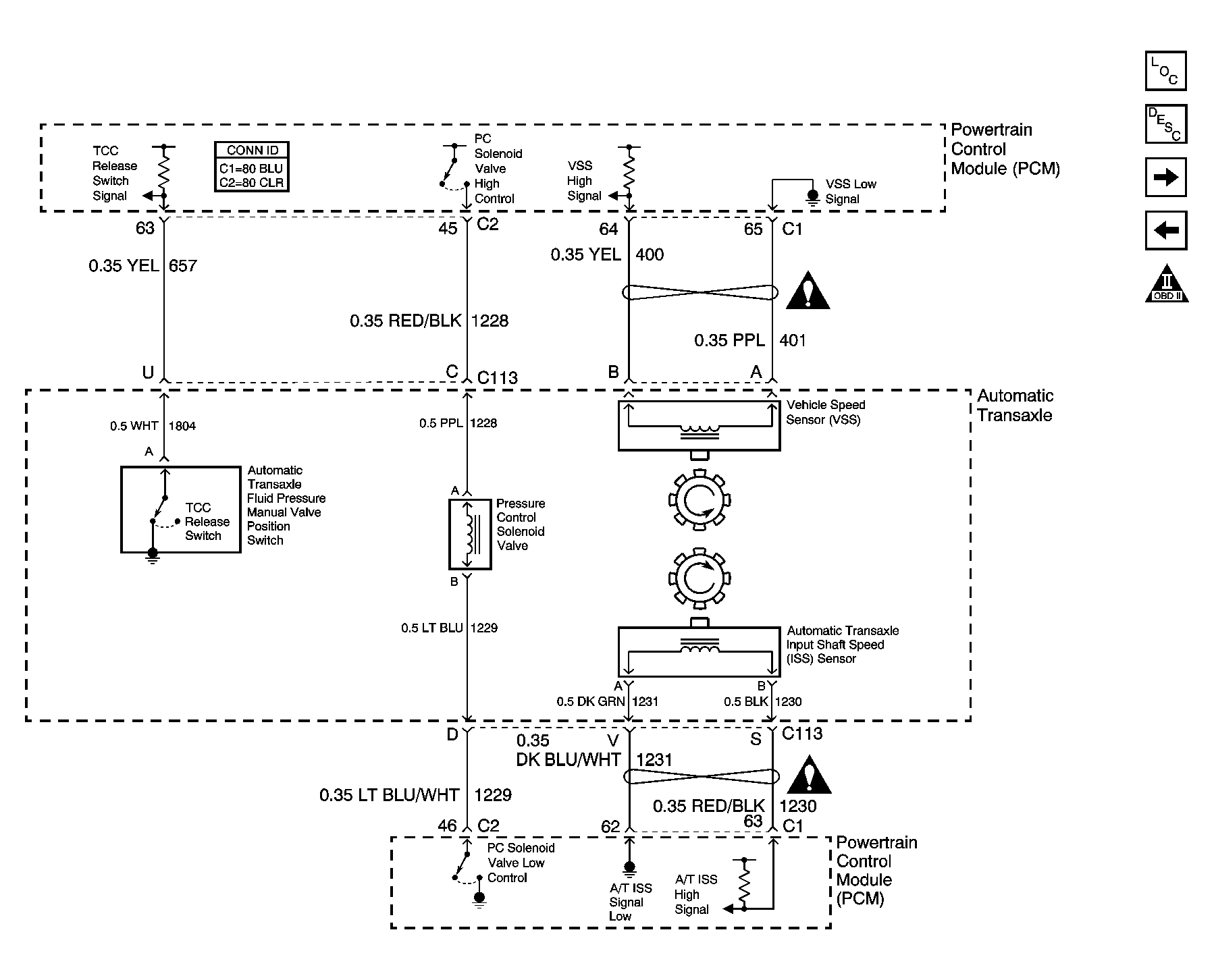

Fig 2: ISS, Pressure Control Solenoid Valve & VSS Schematic

Courtesy of GENERAL MOTORS CORP.

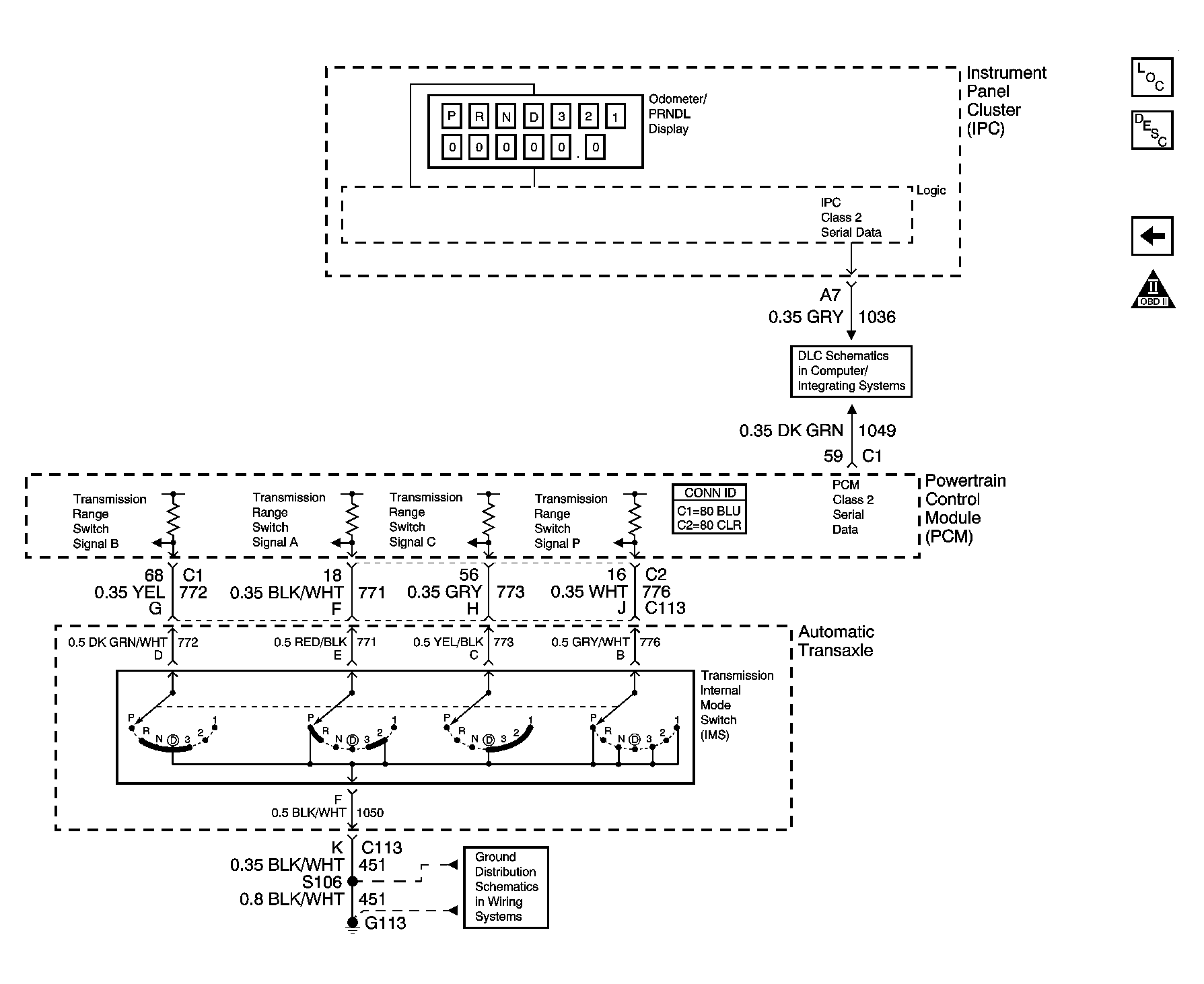

Fig 3: Internal Mode Switch (IMS) Schematic

Courtesy of GENERAL MOTORS CORP.
