Headlamp Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

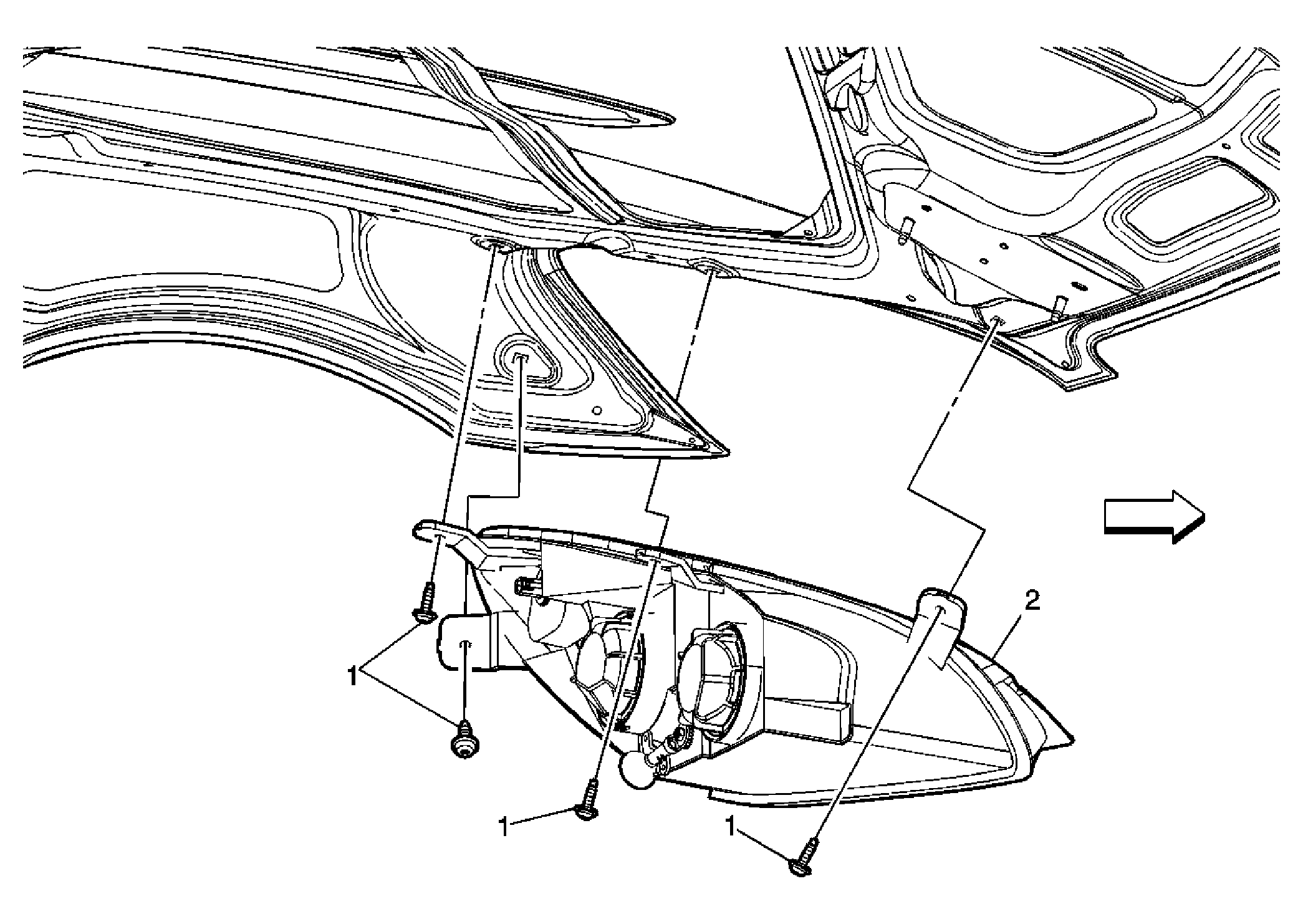

Fig 1: Headlamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Open the hood. Release the connector positive assurance (CPA) connector at the headlamp connector. Disconnect the electrical harness from the headlamp assembly prior to removal.
1	Headlamp Screws (Qty: 4) Tip: Hold the lamp assembly to the hood when removing the screws. Tighten: 9 N.m (80 lb in)
2	Headlamp Assembly Tip: Adjust the headlamps after servicing the headlamp assembly. Refer to Headlamp Aiming .

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Open the hood.
Release the connector positive assurance (CPA) connector at the headlamp connector.
Disconnect the electrical harness from the headlamp assembly prior to removal.

Headlamp Screws (Qty: 4)
Tip: Hold the lamp assembly to the hood when removing the screws.

Tighten: 9 N.m (80 lb in)

Headlamp Assembly
Tip: Adjust the headlamps after servicing the headlamp assembly. Refer to Headlamp Aiming .
