Engine Splash Shield Replacement - Left Side

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

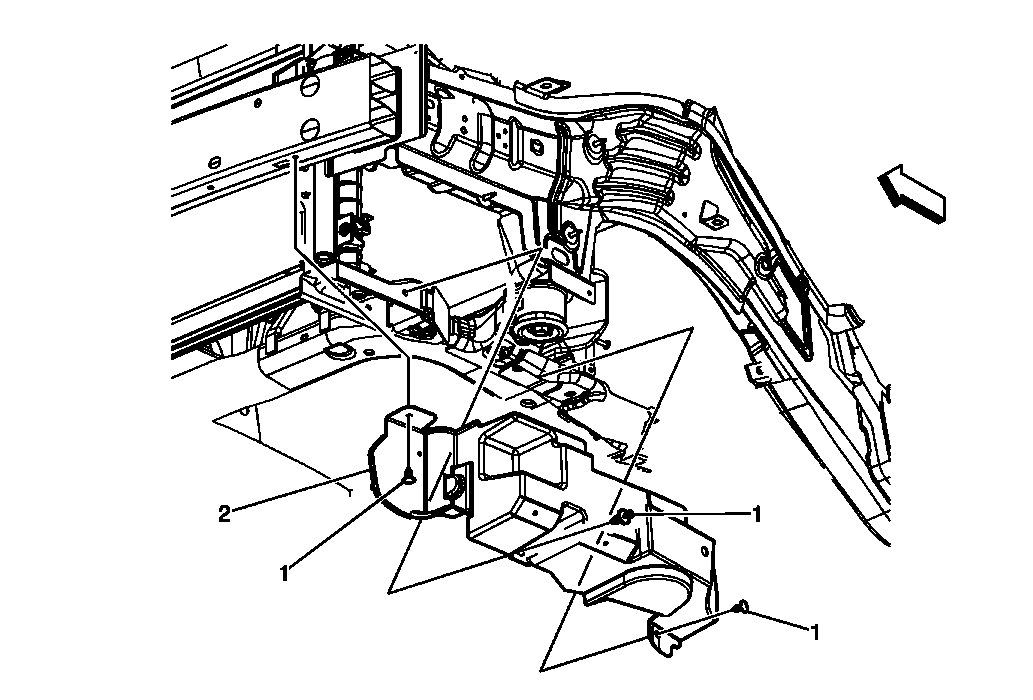

Fig 1: View Of Left Side Engine Splash Shield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the radiator air lower baffle and deflector. Refer to Radiator Air Lower Deflector Replacement . Remove the front wheelhouse panel splash shield. Refer to Front Wheelhouse Panel Splash Shield Replacement . Remove the plastic retainer connecting the radiator air baffle and deflector to the splash shield. Refer to Radiator Air Side Baffle and Deflector Replacement .
1	Engine Splash Shield Replacement Plastic Retainer (Qty: 3)
2	Engine Splash Shield

Callout

Component Name

Preliminary Procedures

Remove the radiator air lower baffle and deflector. Refer to Radiator Air Lower Deflector Replacement .
Remove the front wheelhouse panel splash shield. Refer to Front Wheelhouse Panel Splash Shield Replacement .
Remove the plastic retainer connecting the radiator air baffle and deflector to the splash shield. Refer to Radiator Air Side Baffle and Deflector Replacement .

Engine Splash Shield Replacement Plastic Retainer (Qty: 3)

Engine Splash Shield
