Computer/Integrating Systems Component Views

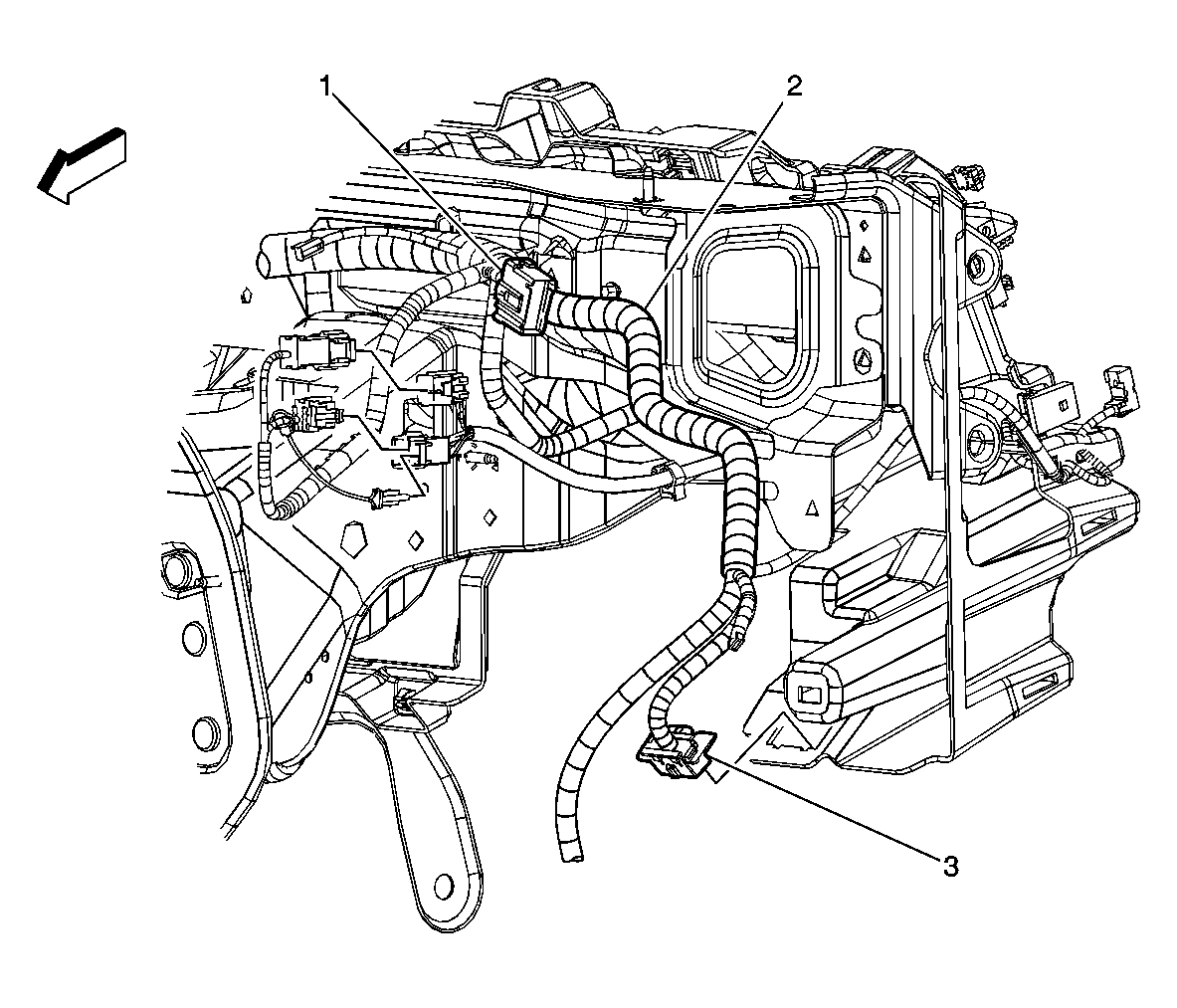

Fig 1: Left Side of the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Splice Pack SP200
2	I/P Harness
3	Data Link Connector (DLC)

Fig 2: Center of the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	I/P Harness
3	Center I/P Support
