Installation Procedure

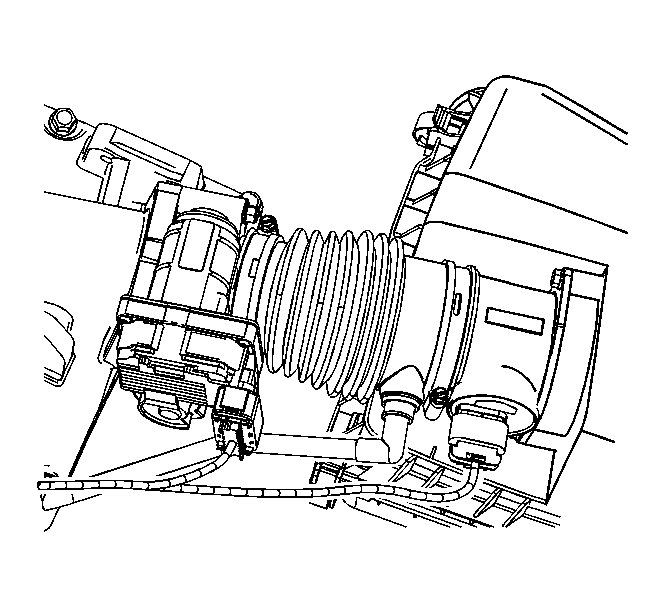

    Fig 1: View Of Air Cleaner Intake Duct
    GM1325733Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner intake duct to the MAF sensor and throttle body.
  2. Install the PCV fresh air pipe to the air cleaner intake duct.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Tighten the clamps at both ends of the air cleaner intake duct.

    Tighten:  Tighten the clamps to 4 N.m (35 lb in).
