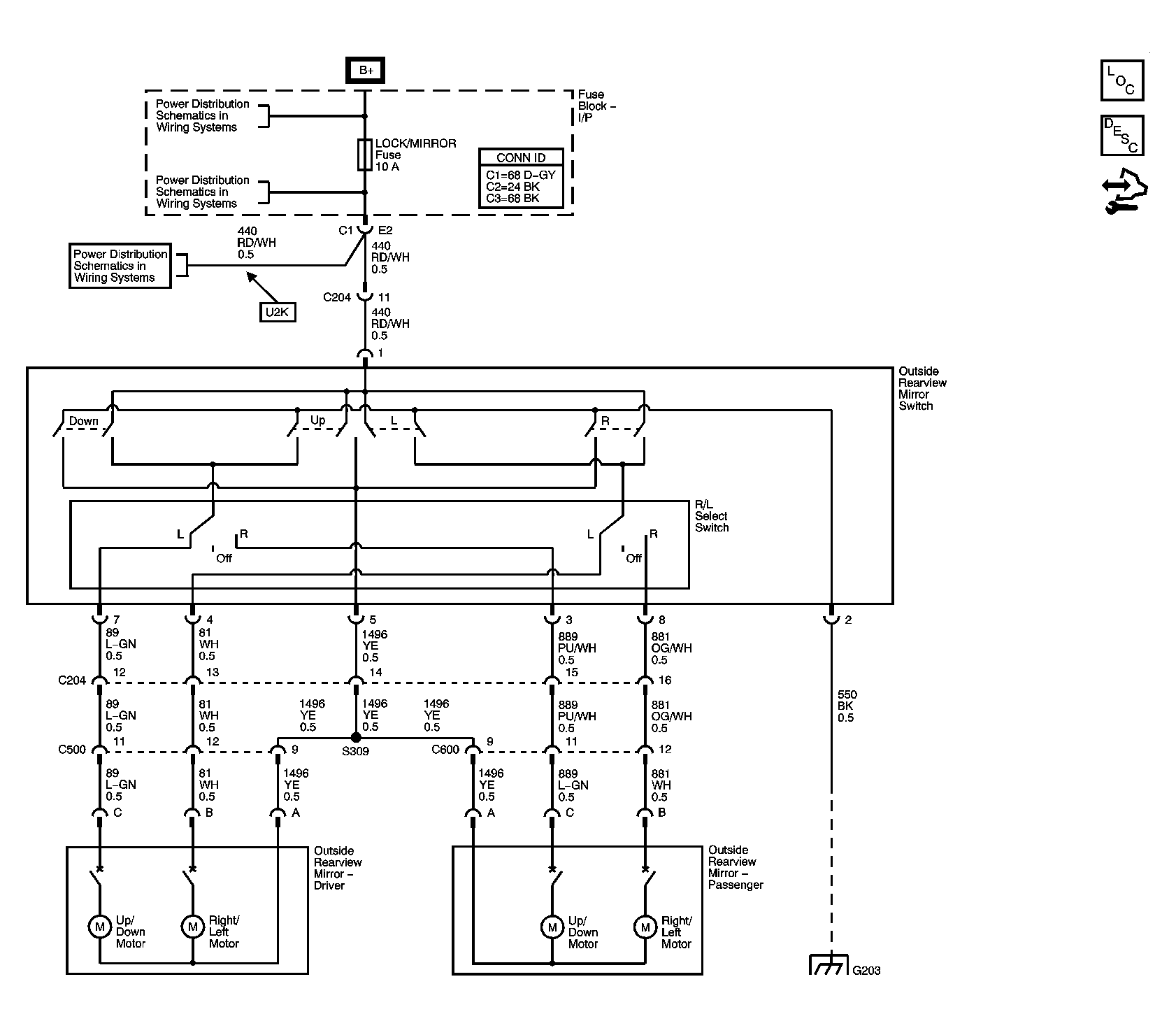

Home >> Chevrolet >> 2005 >> Equinox LS, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Schematic and Routing Diagrams >> Outside Mirror Schematics
