Door Lock/Indicator Schematics

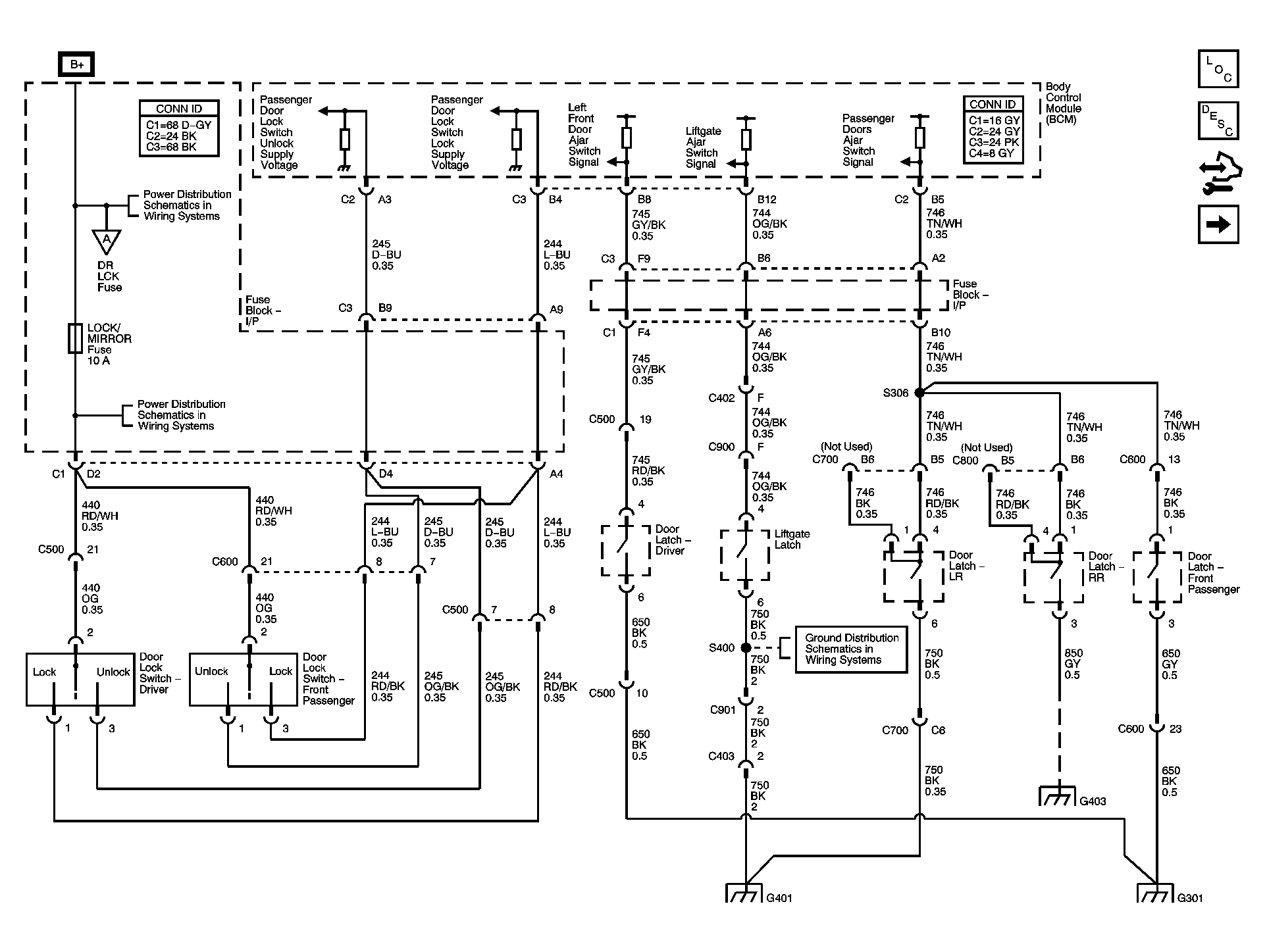

Fig 1: Door Switches & Latch Ajar Signals Schematic

GM1380913

Courtesy of GENERAL MOTORS CORP.

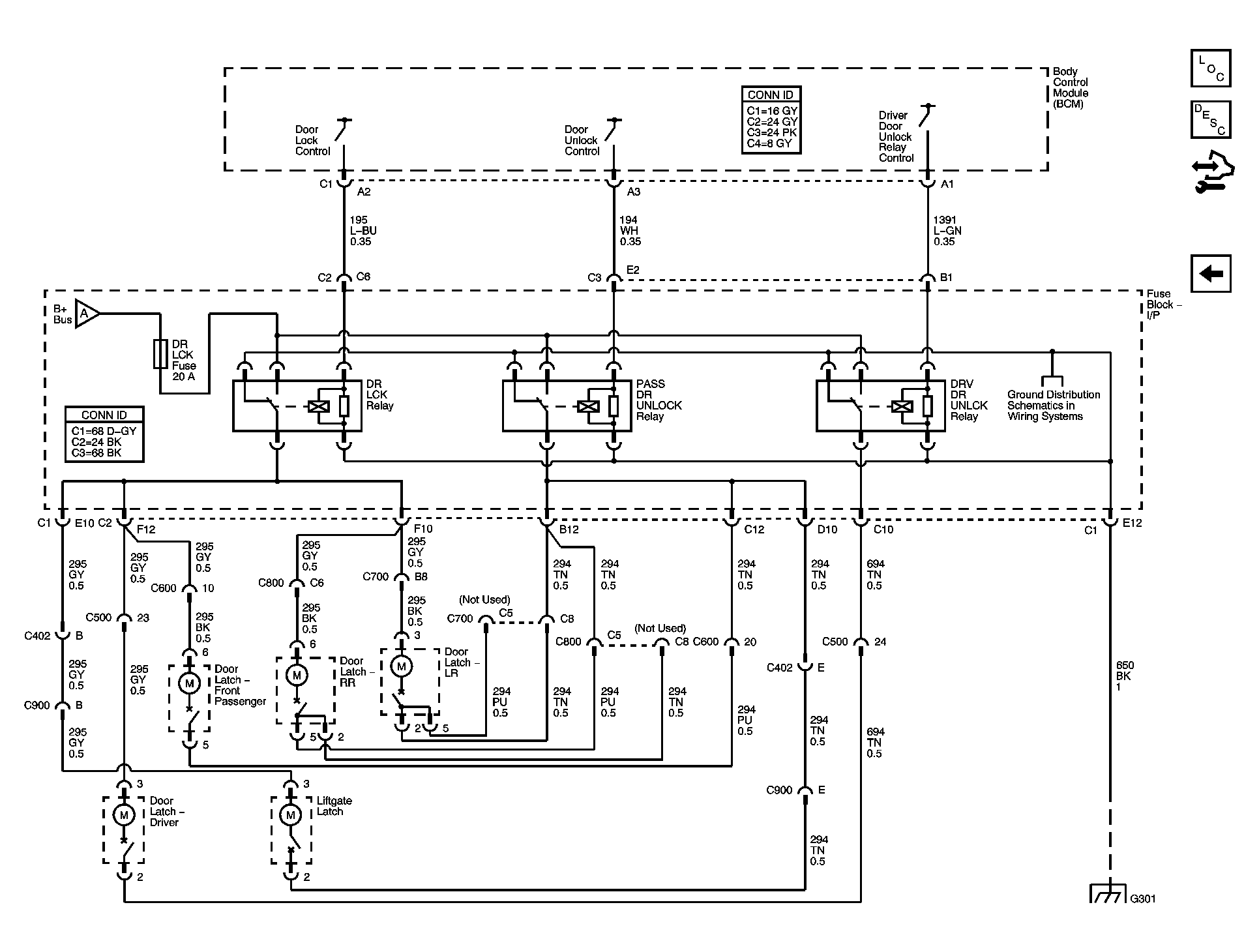

Fig 2: Door Latch Controls Schematic

GM1380914

Courtesy of GENERAL MOTORS CORP.
