Removal Procedure

  1. Remove the front door outside handle. Refer to Door Handle Replacement - Front Outside .
  2. Remove the front door window run channel assembly. Refer to Window Run Channel Replacement - Front Door .
  3. Remove the front door lower speaker. Refer to Speaker Replacement - Front Door in Entertainment.
  4. Disconnect the mirror electrical connector.
  5. Disconnect the 4 electrical connector rosebuds (2 at the mirror and 2 under the speaker).

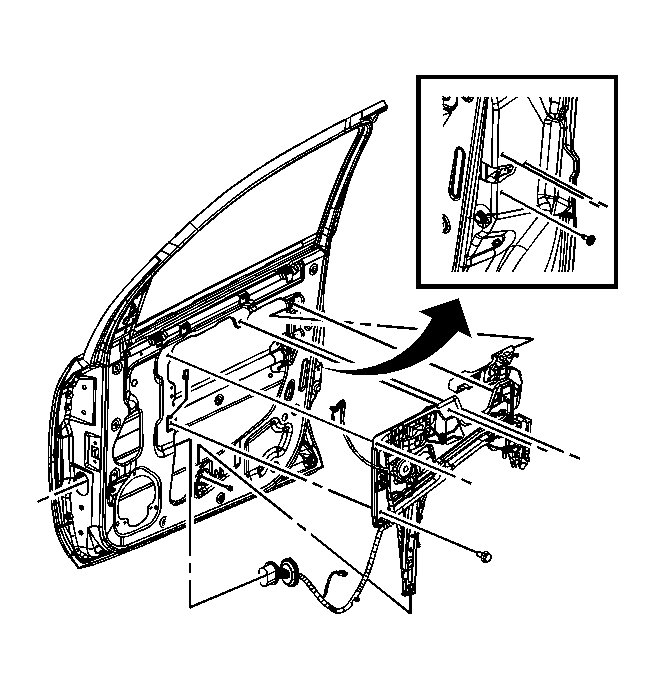

    6. Fig 1: View Of Front Door Window Regulator Module
    GM1378613Courtesy of GENERAL MOTORS CORP.
  6. Loosen the 2 rear module bolts.
  7. Remove the 4 remaining module bolts.
  8. Remove the 3 latch bolts from the door shut face.
  9. Disconnect the door harness at the door jamb.
  10. Remove the window regulator module from the door.
