Installation Procedure

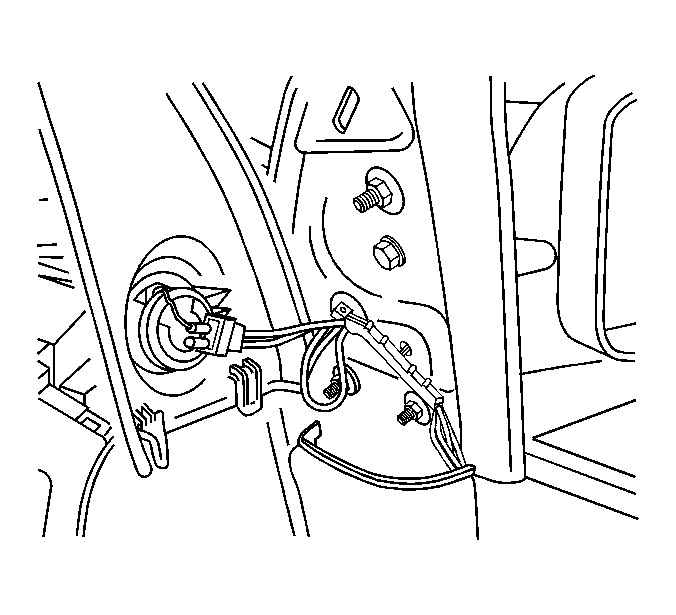

    Fig 1: View Of Speaker Electrical Connector
    GM1344297Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the speaker.
    2. Fig 2: View Of Upper Extension Trim Panel
    GM977574Courtesy of GENERAL MOTORS CORP.
  2. Position the extension panel over the door trim panel with the extension panel mounting tabs behind the door trim panel.
  3. Gently push on the extension panel to engage the attaching clips.
