Seat Belt Component Views
Seat Belt Component Views

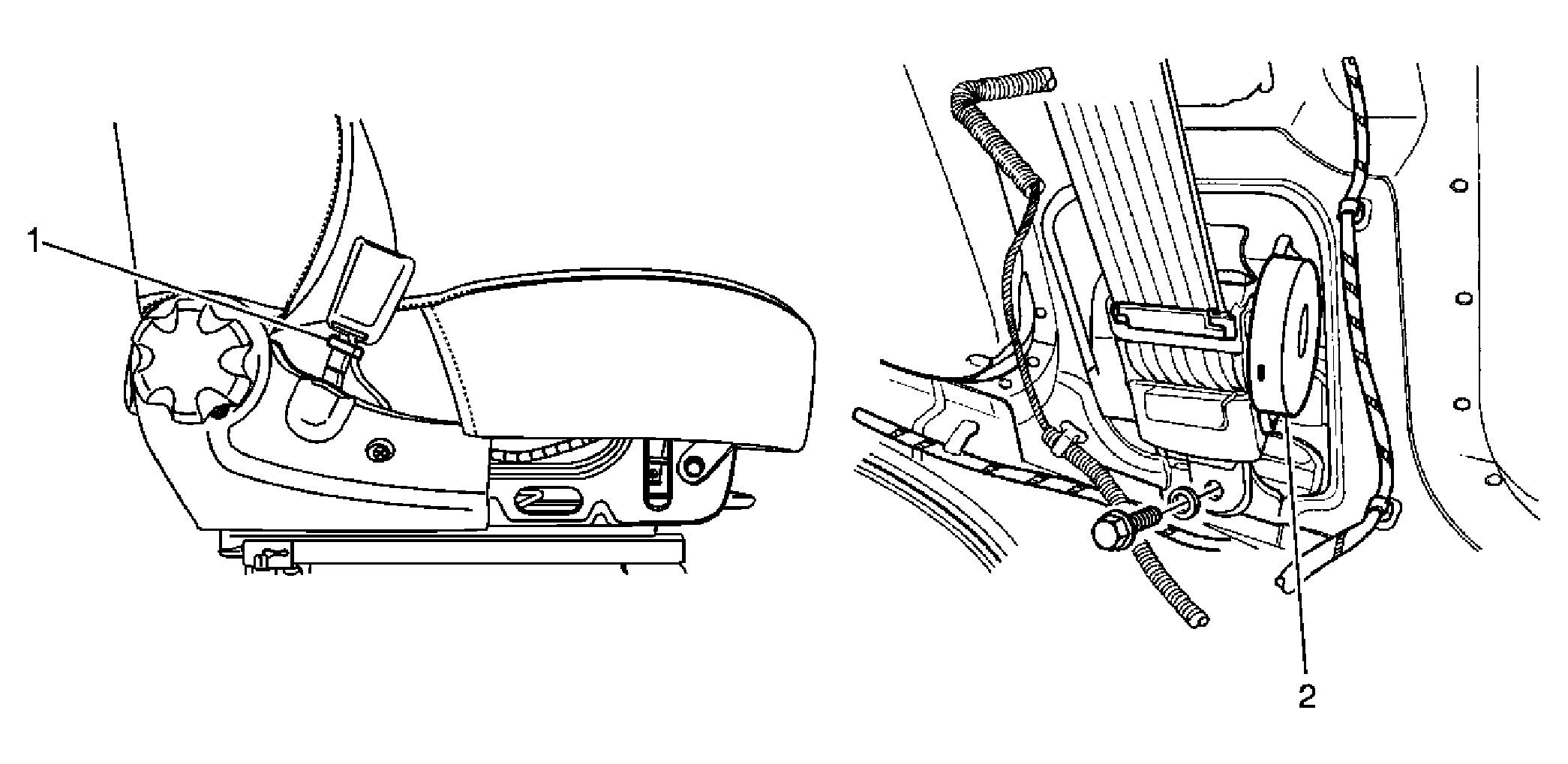

Fig 1: Identifying Seat Belt Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Seat Belt Switch
2
Seat Belt Pretensioner - Driver and Passenger
