Removal Procedure

    Fig 1: View Of Headlamp Assembly And Bolts
    GM1256506Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the bolts and the headlamp assembly.

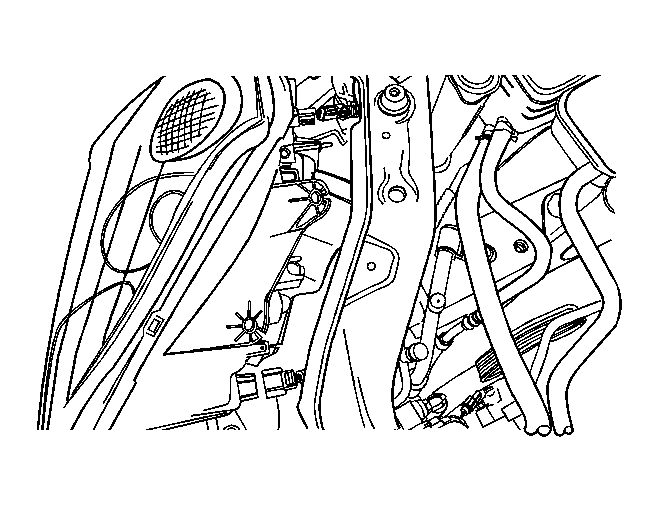

    3. Fig 2: Identifying Headlamp Assembly Electrical Connectors
    GM1256508Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the headlamp assembly electrical connectors.
    4. Fig 3: View Of Cap, Bulbs And Connectors
    GM1256509Courtesy of GENERAL MOTORS CORP.
  4. Remove the cap that conceals the headlamp bulb.
  5. Disconnect the headlamp bulb electrical connectors.
  6. Remove the headlamp bulbs.
