Inline Harness Connector End Views

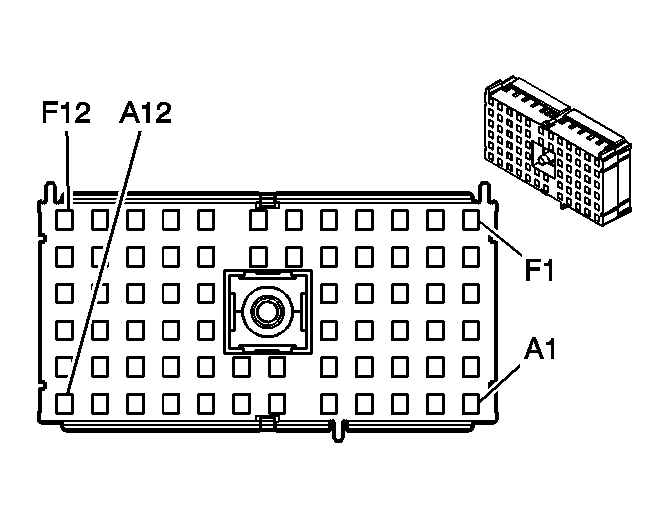

C101 Front Harness to Underhood Fuse Block (2.0L)

GM796890Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 37009
  • 68-Way F Connector (GY)
Pin Wire Color Circuit Number Function
A1 D-BU 15 Right Turn Signal Lamp Supply Voltage
D-BU 15 Right Turn Signal Lamp Supply Voltage
A2 L-GN/BK 735 Ambient Air Temperature Sensor Signal
A3 YE 61 Low Reference
A4 D-GN 189 Headlamp Leveling Motor Supply Voltage (w/Headlamp Leveling)
D-BU/WH 1004 Headlamp Leveling Motor Supply Voltage w/Dual Firing Air Bags)
A5 PK/BK 109 Hood Ajar Switch Signal
A6 YE 261 Arm Alarm Signal
A7 - - Not Used
A8 D-GN 29 Horn Control
A9 L-BU 14 Left Turn Signal Lamp Supply Voltage
L-BU 14 Left Turn Signal Lamp Supply Voltage
A10-A12 - - Not Used
B1 BN/WH 312 Right Headlamp Low Beam Supply Voltage
B2-B3 - - Not Used
B4 D-GN 189 Headlamp Leveling Motor Supply Voltage
B5 - - Not Used
B6 PU/WH 34 Front Fog Lamp Supply Voltage
B7 - - Not Used
B8 D-GN 29 Horn Control
B9 PU 709 Left Park Lamp Supply Voltage
B10 D-GN/WH 711 Left Hand Headlamp High Beam Signal
B11 - - Not Used
B12 RD 228 Windshield Washer Relay Control
C1-C2 - - Not Used
C3 OG 1640 Ignition Voltage (w/Power Mirrors)
YE/BK 1003 Front End Sensor (RH)
C4-C5 - - Not Used
C8 - - Not Used
C9 PU 709 Left Park Lamp Supply Voltage
C10 L-GN/WH 311 Right Headlamp Signal
C11 BN/WH 312 Headlamp Relay Voltage
C12 BK 250 Ground
D1 - - Not Used
D2 YE 712 Left Headlamp Low Beam Supply Voltage
YE 1712 Left Headlamp Low Beam Supply Voltage (w/Headlamp Leveling)
D3 D-GN 532 Cooling Fan Motor Supply Voltage
D4-D5 - - Not Used
D8 BK 250 Ground
D9 BN/WH 309 Right Park Lamp Supply Voltage
D10-D11 - - Not Used
D12 BK 251 Ground
E1 D-GN 59 A/C Compressor Clutch Supply Voltage
E2-E4 - - Not Used
E5 BK 250 Ground
E6 BK 250 Ground
BK 250 Ground
E7 OG 1640 Battery Positive Voltage
E8 - - Not Used
E9 BN/WH 309 Right Park Lamp Supply Volage
E10-E12 - - Not Used
F1 BK 250 Ground
F2 BK 250 Ground
F3-F4 - - Not Used
F5 L-BU/WH 901 Battery Positive Voltage
F6 BK 250 Ground
F7-F10 - - Not Used
F11 D-BU 409 Cooling Fan Motor Supply Voltage
F12 - - Not Used
C101 Front Harness to Underhood Fuse Block (2.5L)

GM796890Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 37009
  • 68-Way F Connector (GY)
Pin Wire Color Circuit Number Function
A1 D-BU 15 Right Hand Turn Signal Lamp Supply Voltage
D-BU 15 Right Hand Turn Signal Lamp Supply Voltage
A2 L-GN/BK 735 Ambient Air Temperature Sensor Signal
A3 YE 61 Low Reference
A4 D-BU/WH 1004 Front End Sensor - RH - Voltage
A5 PK/BK 109 Hood Ajar Switch Signal
A6 YE 261 Arm Alarm Signal
A7 - - Not Used
A8 D-GN 29 Horn Control
A9 L-BU 14 Left Hand Turn Signal Lamp Supply Voltage
L-BU 14 Left Hand Turn Signal Lamp Supply Voltage
A10-A12 - - Not Used
B1 BN/WH 1312 Right Headlamp Low Beam Supply Voltage
B2-B5 - - Not Used
B6 PU/WH 34 Front Fog Lamp Supply Voltage
B7 - - Not Used
B8 D-GN 29 Horn Control
B9 PU 709 Left Park Lamp Supply Voltage
B10 D-GN/WH 711 Left Hand Headlamp High Beam Supply Voltage
B11 - - Not Used
B12 RD 228 Windshield Washer Relay Control
C1-C2 - - Not Used
C3 YE/BK 1003 Front End Sensor - RH - Signal
OG 1640 Ignition 1 Voltage (w/Power Mirrors)
C4-C8 - - Not Used
C9 PU 709 Left Park Lamp Supply Voltage
C10 L-GN/WH 311 Right Hand Headlamp High Beam Supply Voltage
C11 - - Not Used
C12 BK 250 Ground
D1 - - Not Used
D2 YE 712 Left Headlamp Low Beam Supply Voltage
D3 D-GN 532 Cooling Fan Motor Supply Voltage
D4-D5 - - Not Used
D8 BK 250 Ground
D9 BN/WH 309 Right Park Lamp Supply Voltage
D10-D11 - - Not Used
D12 BK 251 Ground
E1 D-GN 59 A/C Compressor Clutch Supply Voltage
E2-E4 - - Not Used
E5 BK 250 Ground
E6 BK 250 Ground
BK 250 Ground
E7-E8 - - Not Used
E9 BN/WH 309 Right Park Lamp Supply Voltage
E10-E12 - - Not Used
F1 BK 250 Ground
F2 BK 250 Ground
F3-F4 - - Not Used
F5 L-BU/WH 901 Battery Positive Voltage
F6 BK 250 Ground
F7-F10 - - Not Used
F11 D-BU 409 Cooling Fan Motor Supply Voltage
F12 - - Not Used
C102 Body Harness to Underhood Fuse Block (2.0L)

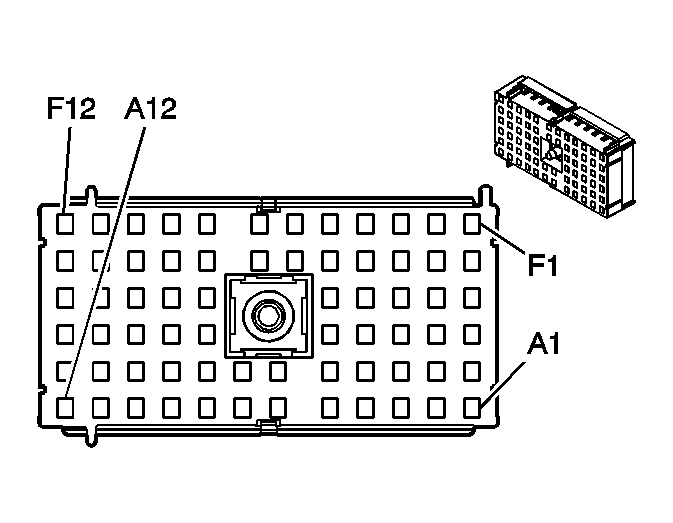

GM796889Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • DC 0680030
  • 68-Way F Metri-Pack 280 Series, Flexlock 3 (BN)
Pin Wire Color Circuit Number Function
A1 GY 120 Fuel Pump Supply Voltage
A2-A3 - - Not Used
A4 PK 239 Ignition 1 Voltage
A5-A6 - - Not Used
A7 PU 709 Left Park Lamp Supply Voltage
A8 PK 739 Ignition 1 Voltage
A9 BK/WH 251 Ground
A10 OG 1340 Battery Positive Voltage
A11 OG 840 Battery Positive Voltage
A12 L-GN 24 Backup Lamp Supply Voltage
B1 GY 120 Fuel Pump Supply Voltage
B2 OG 140 Battery Positive Voltage
B3 L-BU 1346 Headlamp Supply Voltage/ Headlamp Control
B4 PK/BK 109 Hood Ajar Switch Signal
B5 RD/YE 242 Battery Positive Voltage
B6 BN/WH 309 Right Park Lamp Supply Voltage
B7 - - Not Used
B8 WH 1080 Park Lamps Relay Control
B9 - - Not Used
B10 BN 1739 Ignition 1 Voltage
B11-B12 - - Not Used
C1-C5 - - Not Used
C8 PU 709 Left Park Lamp Supply Voltage
C9 - - Not Used
C10 OG 580 Power Window Relay Voltage
C11 OG/BK 740 Battery Positive Voltage
C12 - - Not Used
D1 OG/BK 640 Battery Positive Voltage
D2 - - Not Used
D3 D-GN/BK 1798 Headlamp Relay Control
D4 - - Not Used
D5 OG 540 Battery Positive Voltage
D8 - - Not Used
D9 L-GN 11 Headlamp High Beam Supply Voltage
D10-E1 - - Not Used
E2 BN 41 Ignition 3 Voltage
E3-E5 - - Not Used
E6 YE 261 Arm Alarm Signal
E7 - - Not Used
E8 BN/WH 309 Right Park Lamp Supply Voltage
E9-E10 - - Not Used
E11 BN/WH 312 Right Headlamp Low Beam Supply Voltage
E12 BK 250 Ground
F1 D-BU 15 Right Hand Turn Signal Lamp Supply Voltage
F2 L-GN/BK 735 Ambient Air Temperature Sensor Signal
F3 YE 61 Low Reference
F4 D-GN 189 Headlamp Leveling Motor Supply Voltage
F5 - - Not Used
F6 YE/WH 317 Fog Lamp Relay Coil Supply Voltage
F7 - - Not Used
F8 BK/WH 28 Horn Relay Control
F9 L-BU 14 Left Hand Turn Signal Lamp Supply Voltage
L-BU 14 Left Hand Turn Signal Lamp Supply Voltage
F10 PK/D-BU 638 Power Window Motor Driver Down Control
F11 - - Not Used
F12 RD 228 Windshield Washer Pump Control
C102 Body Harness to Underhood Fuse Block (2.5L)

GM796889Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • DC 0680030
  • 68-Way F Metri-Pack 280 Series, Flexlock 3 (BN)
Pin Wire Color Circuit Number Function
A1 GY 120 Fuel Pump Supply Voltage
A2-A3 - - Not Used
A4 PK 239 Ignition 1 Voltage
A5-A6 - - Not Used
A7 PU 709 Left Park Lamp Supply Voltage
A8 PK 739 Ignition 1 Voltage
A9 BK/WH 251 Ground
A10 OG 1340 Battery Positive Voltage
A11 OG 840 Battery Positive Voltage
A12 L-GN 24 Backup Lamp Supply Voltage
B1 GY 120 Fuel Pump Supply Voltage
B2 OG 140 Battery Positive Voltage
B3 L-BU 1346 Headlamp Supply Voltage/ Headlamp Control
B4 PK/BK 109 Hood Ajar Switch Signal
B5 RD/YE 242 Battery Positive Voltage
B6 BN/WH 309 Right Park Lamp Supply Voltage
B7 - - Not Used
B8 WH 1080 Park Lamps Relay Control
B9 - - Not Used
B10 BN 1739 Ignition 1 Voltage
B11 - - Not Used
B12 PK/BK 1846 Ignition 1 Voltage (North America)
C1 D-BU 1936 Fuel Level Sensor Signal
C2-C3 - - Not Used
C4 BK/WH 1750 Ground
C5 - - Not Used
C8 PU 709 Left Park Lamp Supply Voltage
C9 D-BU/BK 480 Rough Road Sensor Signal
L-GN/BK 1102 Battery Positive Voltage (w/A/D Converter)
C10 OG 580 Power Window Relay Voltage
C11 OG/BK 740 Battery Positive Voltage
C12 D-GN 890 Fuel Tank Pressure Sensor Signal (North America)
D1 OG/BK 640 Battery Positive Voltage
D2 D-BU 1003 Front End Sensor - RH - Signal
D3 D-GN/BK 1798 Headlamp Relay Control
D4 - - Not Used
D5 OG 540 Battery Positive Voltage
D8 PU 1986 EVAP Canister Vent Solenoid Control
D9 L-GN 11 Headlamp High Beam Supply Voltage
D10-D11 - - Not Used
D12 GY/BK 605 Low Reference
E1 - - Not Used
E2 BN 41 Ignition 3 Voltage
E3-E5 - - Not Used
E6 YE 261 Arm Alarm Signal
E7 - - Not Used
E8 BN/WH 309 Right Park Lamp Supply Voltage
E9-E11 - - Not Used
E12 BK 250 Ground
F1 D-BU 15 Right Turn Signal Lamp Supply Voltage
F2 L-GN/BK 735 Ambient Air Temperature Sensor Signal
F3 YE 61 Low Reference
F4 WH 1004 Front End Sensor - RH - Signal
F5 - - Not Used
F6 YE/WH 317 Fog Lamp Relay Coil Supply Voltage
F7 - - Not Used
F8 BK/WH 28 Horn Relay Control
F9 L-BU 14 Left Turn Signal Lamp Supply Voltage
F10 PK/D-BU 638 Power Window Motor Driver Down Control
F11 - - Not Used
F12 RD 228 Windshield Washer Pump Control
C103 Engine Harness to Underhood Fuse Block (2.0L)

GM796888Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 37010
  • 68-Way F Metri-Pack 280 Series, Flexlock T2 (BK)
Pin Wire Color Circuit Number Function
A1-A2 - - Not Used
A3 PK 1846 Engine Main Relay Controlled Voltage
A4 - - Not Used
A5 D-GN/WH 465 Fuel Pump Relay Control
A6 BK/WH 251 Ground (MR-140)
BK/WH 251 Ground (MR-140)
A7 - - Not Used
A8 BK/WH 251 Ground
A9 BK/WH 251 Ground
A10 BK/WH 251 Ground
A11 OG 440 Battery Positive Voltage (MR-140)
OG 440 Battery Positive Voltage
A12-B1 - - Not Used
B2 PK/WH 739 Ignition 1 Voltage
B3 PK 1846 Engine Main Relay Controlled Voltage (ITMS-6F)
B4-B6 - - Not Used
B7 BK/WH 251 Ground (MR-140)
BK/WH 251 Ground
B8 BK/WH 251 Ground (MR-140)
BK/WH 251 Ground (MR-140)
B9 - - Not Used
B10 L-GN 24 Backup Lamp Supply Voltage
B11 OG 440 Battery Positive Voltage
B12-C1 - - Not Used
C2 PK/WH 739 Ignition 1 Voltage (MR-140)
C3 PK 1846 Engine Main Relay Controlled Voltage
C4 BK/WH 251 Ground
C5 - - Not Used
C8 BK/WH 251 Ground (MR-140)
C9 PK/D-BU 539 Ignition 1 Voltage
C10-D1 - - Not Used
D2 BK/WH 1750 Ground (MR-140)
D3 PK/BK 1846 Engine Main Relay Controlled Voltage (MR-140)
D4 PK 1846 Engine Main Relay Controlled Voltage (MR-140)
D5 - - Not Used
D8 PK/D-BU 539 Ignition 1 Voltage
D9-E3 - - Not Used
E4 PK 1846 Engine Main Relay Controlled Voltage (MR-140)
E5-E6 - - Not Used
E7 PK/BK 139 Ignition 1 Voltage (MR-140)
E8 PK/D-BU 539 Ignition 1 Voltage
E9 PK/BK 139 Ignition 1 Voltage (MR-140)
E10-E12 - - Not Used
F1 D-BU 1936 Fuel Level Sensor Signal (MR-140)
F2-F3 - - Not Used
F4 PU/WH 67 A/C Compressor Clutch Coil Supply Voltage
F5 D-BU 473 High Speed Cooling Fan Relay Control
F6 D-GN 335 Low Speed Cooling Fan Relay Control
F7 PK/BK 139 Ignition 1 Voltage (ITMS-6F)
PK/BK 139 Ignition 1 Voltage (ITMS-6F)
F8 PK/D-BU 539 Ignition 1 Voltage
F9 PK/BK 139 Ignition 1 Voltage (ITMS-6F)
PK/BK 139 Ignition 1 Voltage (ITMS-6F)
F10-F12 - - Not Used
C103 Engine Harness to Underhood Fuse Block (2.5L)

GM796888Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 37010
  • 68-Way F Metri-Pack 280 Series, Flexlock T2 (BK)
Pin Wire Color Circuit Number Function
A1-A2 - - Not Used
A3 PK/BK 1846 Engine Main Relay Controlled Voltage
PK/BK 1846 Engine Main Relay Controlled Voltage
A4 - - Not Used
A5 D-GN/WH 465 Fuel Pump Relay Control
A6 - - Not Used
A7 BK/WH 251 Ground
A8 BK 251 Ground
A9 - - Not Used
A10 OG/BK 1029 Main Relay Control
A11 OG 440 Battery Positive Voltage
OG 440 Battery Positive Voltage
A12-B1 - - Not Used
B2 PK 739 Ignition 1 Voltage
B3 PK/BK 1846 Engine Main Relay Controlled Voltage
B4 - - Not Used
B5 PK/BK 1846 Engine Main Relay Controlled Voltage
B6 PU 1986 EVAP Canister Vent Solenoid Control
B7 BK/WH 251 Ground
B8 BK/WH 251 Ground
B9 D-BU/BK 480 Rough Road Surface Signal
B10 L-GN 24 Backup Lamp Supply Voltage (w/Manual Transmission)
B11 OG 440 Battery Positive Voltage
B12 - - Not Used
C1-C2 - - Not Used
C3 PK/BK 1846 Engine Main Relay Controlled Voltage
C4 PK/D-BU 539 Ignition 1 Voltage
C5 - - Not Used
C8 BK/WH 251 Ground
C9 OG 440 Battery Positive Voltage
C10-C12 - - Not Used
D1 - - Not Used
D2 BK 750 Ground
D3 - - Not Used
D4 PK/BK 1846 Engine Main Relay Controlled Voltage
D5 PK/BK 1846 Engine Main Relay Controlled Voltage
D8-E3 - - Not Used
E4 PK/BK 1846 Engine Main Relay Controlled Voltage
E5-E6 - - Not Used
E7 PK/WH 139 Ignition 1 Voltage
E8 PK/D-BU 539 Ignition 1 Voltage
E9 PK/WH 139 Ignition 1 Voltage
E10-E12 - - Not Used
F1 D-BU/WH 1936 Fuel Level Sensor Signal
F2-F3 - - Not Used
F4 PU/WH 67 A/C Compressor Clutch Coil Supply Voltage
F5 D-BU 473 High Speed Cooling Fan Relay Control
F6 D-GN 335 Low Speed Cooling Fan Relay Control
F7 PK/WH 139 Ignition 1 Voltage
F8 PK/D-BU 539 Ignition 1 Voltage
F9 PK/WH 139 Ignition 1 Voltage
F10 GY/BK 605 Low Reference
F11 D-GN 890 Fuel Tank Pressure Sensor Signal
F12 - - Not Used
C104 Body Harness to Underhood Fuse Block

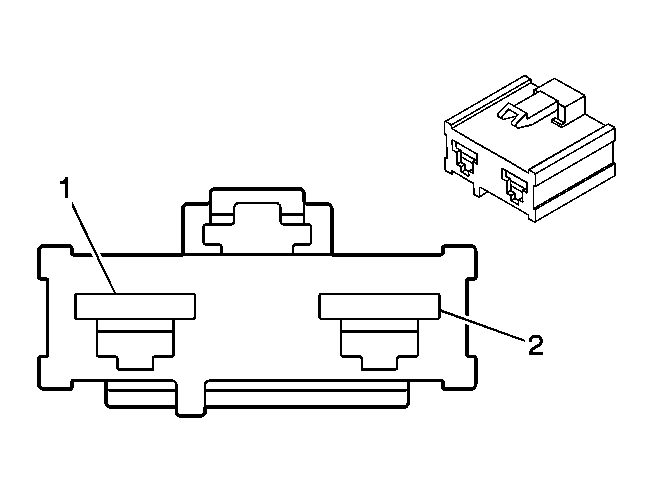

GM1499999Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • DC 0020010
  • 2-Way F Connector (GY)
Pin Wire Color Circuit Number Function
1 RD/BK 1642 Battery Positive Voltage
2 RD/WH 642 Battery Positive Voltage

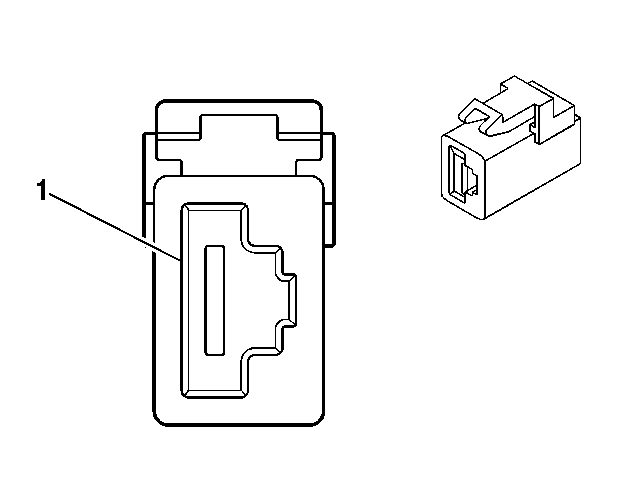

C105 ABS Harness to Underhood Fuse Block

GM1499997Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15303502
  • 1-Way F Connector (BK)
Pin Wire Color Circuit Number Function
1 RD 42 Battery Positive Voltage
RD 42 Battery Positive Voltage
C106 Body Harness to Underhood Fuse Block

GM1499999Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • DC 0020020
  • 2-Way F (WH)
Pin Wire Color Circuit Number Function
1 RD/D-BU 742 Battery Positive Voltage
2 RD 142 Battery Positive Voltage
C107 ABS Harness to Body Harness Block

GM1466992Courtesy of GENERAL MOTORS CORP.
GM1468535Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368047
  • 16-Way F Econoseal J-MARK II(+) CONNECTOR 16Pos. CAP HOUSING (BK)
 Connector Part Information
  • AMP 368050
  • 16-Way M Econoseal J-Mark II + 16P Plug Ass'y (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 D-BU/WH 873 Right Front Wheel Speed Sensor Low Reference 1 D-BU/WH 873 Right Front Wheel Speed Sensor Low Reference
2 D-BU/BK 883 Right Rear Wheel Speed Sensor Signal 2 D-BU/BK 883 Right Rear Wheel Speed Sensor Signal
3 L-BU/WH 220 ABS Warning Lamp Module Signal 3 L-BU/WH 220 ABS Warning Lamp Module Signal
4 BN 1141 Ignition 3 Voltage 4 BN 1141 Ignition 3 Voltage
5 BU 885 Left Rear Wheel Speed Sensor Signal 5 BU 885 Left Rear Wheel Speed Sensor Signal
6 BN 884 Left Rear Wheel Speed Sensor Low Reference 6 BN 884 Left Rear Wheel Speed Sensor Low Reference
7 D-GN/WH 1867 12-Volt Reference 7 D-GN/WH 1867 12-Volt Reference
8 D-GN 905 Serial Data 8 D-GN 905 Serial Data
9 BN/WH 833 Right Front Wheel Speed Sensor Signal 9 BN/WH 833 Right Front Wheel Speed Sensor Signal
10 BN/WH 882 Right Rear Wheel Speed Sensor Low Reference 10 BN/WH 882 Right Rear Wheel Speed Sensor Low Reference
11 WH/BK 1922 CAN Serial Data Low (North America) 11 WH/BK 1922 CAN Serial Data Low (North America)
12 L-BU 20 Stop Lamp Supply Voltage 12 L-BU 20 Stop Lamp Supply Voltage
13 D-GN/WH 2656 Service Traction Control Signal 13 D-GN/WH 2656 Service Traction Control Signal
14 D-GN 1656 Traction Control (TCS) Active Signal 14 D-GN 1656 Traction Control (TCS) Active Signal
15 GY/WH 3656 Traction Control (TCS) Switch Signal 15 GY/WH 3656 Traction Control (TCS) Switch Signal
16 YE/BK 1921 CAN Serial Data High (North America) 16 YE/BK 1921 CAN Serial Data High (North America)
C108 Front Harness to Bumper Harness (Automatic A/C) (Except North America)

GM1468383Courtesy of GENERAL MOTORS CORP.
GM1468518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-06027
  • 6-Way F NMWP 06F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-06020
  • 6-Way M NMWP06M-B (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 PK 239 Ignition 1 Voltage 1 PK 239 Ignition 1 Voltage
2 YE 61 Low Reference 2 YE 61 Low Reference
3 PU/WH 34 Fog Relay Voltage 3 PU/WH 34 Fog Relay Voltage
4 - - Not Used 4 - - Not Used
5 L-GN/BK 735 Ambient Air Temperature Sensor Signal 5 L-GN/BK 735 Ambient Air Temperature Sensor Signal
6 BK 250 Ground 6 BK 250 Ground
C108 Front Harness to Bumper Harness (Automatic A/C) (North America)

GM1468384Courtesy of GENERAL MOTORS CORP.
GM1500004Courtesy of GENERAL MOTORS CORP.
Connector Part Information

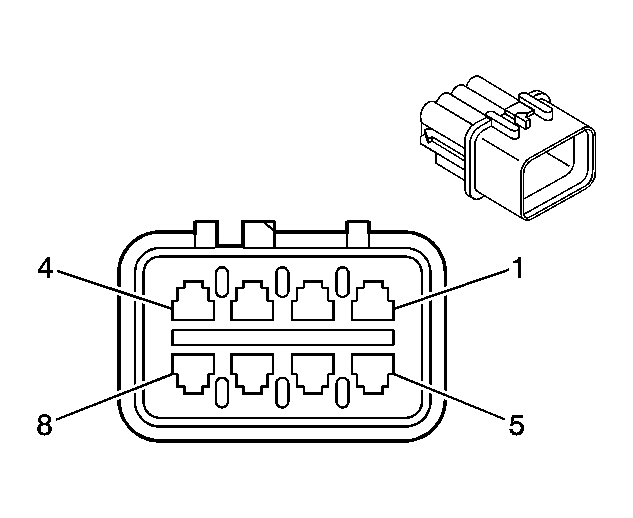

  • KUM PB 625-08027
  • 8-Way F NMWP 08F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-08020
  • 8-Way M Connector (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 L-BU 14 Left Turn Signal Lamp Supply Voltage 1 L-BU 14 Left Turn Signal Lamp Supply Voltage
2 BN/WH 309 Right Park Lamp Supply Voltage 2 BN/WH 309 Right Park Lamp Supply Voltage
3 YE 61 Low Reference 3 YE 61 Low Reference
4 PU/WH 34 Front Fog Lamp Supply Voltage 4 PU/WH 34 Front Fog Lamp Supply Voltage
5 D-BU 15 Right Turn Signal Lamp Supply Voltage 5 D-BU 15 Right Turn Signal Lamp Supply Voltage
6 PU 709 Left Park Lamp Supply Voltage 6 PU 709 Left Park Lamp Supply Voltage
7 L-GN/BK 735 Ambient Air Temperature Sensor Signal 7 L-GN/BK 735 Ambient Air Temperature Sensor Signal
8 BK 250 Ground 8 BK 250 Ground
C108 Front Harness to Bumper Harness (Manual A/C) (Except North America)

GM1468380Courtesy of GENERAL MOTORS CORP.
GM1499995Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-02027
  • 2-Way F NMWP 04F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-02020
  • 2-Way M Connector (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BK 250 Ground (with Front Fog Lamps) 1 BK 250 Ground (with Front Fog Lamps)
2 PU/WH 34 Front Fog Lamps Supply Voltage 2 PU/WH 34 Front Fog Lamps Supply Voltage
C108 Front Harness to Bumper Harness (Manual A/C) (North America)

GM1468383Courtesy of GENERAL MOTORS CORP.
GM1468518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-06027
  • 6-Way F NMWP 06F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-06020
  • 6-Way M NMWP06M-B (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 PU/WH 34 Front Fog Lamp Supply Voltage 1 PU/WH 34 Front Fog Lamp Supply Voltage
2 BN/WH 309 Right Park Lamp Supply Voltage 2 BN/WH 309 Right Park Lamp Supply Voltage
3 L-BU 14 Left Turn Signal Lamp Supply Voltage 3 L-BU 14 Left Turn Signal Lamp Supply Voltage
4 BK 250 Ground 4 BK 250 Ground
5 PU 709 Left Park Lamp Supply Voltage 5 PU 709 Left Park Lamp Supply Voltage
6 D-BU 15 Right Turn Signal Lamp Supply Voltage 6 D-BU 15 Right Turn Signal Lamp Supply Voltage
C109 Engine Harness to ECM Jumper Harness (ITMS-6F)

GM646433Courtesy of GENERAL MOTORS CORP.
GM655777Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15336418
  • 38-Way F GT 150 280 Sealed 4.0 5.2 (BK)
 Connector Part Information
  • PED 15317380
  • 38-Way M GT 150 280 Sealed 4.0 5.2 (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
A1 OG 440 Battery Positive Voltage A1 OG 440 Battery Positive Voltage
OG 440 Battery Positive Voltage
A2 PK/D-BU 539 Ignition 1 Voltage A2 PK/D-BU 539 Ignition 1 Voltage
A3 PU/WH 67 AC Compressor Clutch Coil Supply Voltage A3 PU/WH 67 AC Compressor Clutch Coil Supply Voltage
A4 WH 423 Ignition Coil 1 and 4 Control A4 WH 423 Ignition Coil 1 and 4 Control
A5 PU/WH 1665 HO2S High Signal A5 PU/WH 1665 HO2S High Signal
A6 BK/WH 2251 Low Reference A6 BK/WH 2251 Low Reference
A7 YE/BK 1868 Low Reference A7 YE/BK 1868 Low Reference
A8 D-BU/WH 1869 Engine Main Relay Controlled Voltage A8 D-BU/WH 1869 Engine Main Relay Controlled Voltage
B1 L-BU/WH 1747 IAC Coil A High Control B1 L-BU/WH 1747 IAC Coil A High Control
B2 L-BU/BK 1748 IAC Coil A Low Control B2 L-BU/BK 1748 IAC Coil A Low Control
B3 BN 25 Charge Indicator Control/Charge Indicator Signal B3 BN 25 Charge Indicator Control/Charge Indicator Signal
B4 BN/WH 31 Oil Pressure Indicator Control B4 BN/WH 31 Oil Pressure Indicator Control
B5 D-GN/WH 817 Vehicle Speed Signal B5 D-GN/WH 817 Vehicle Speed Signal
B6 OG 406 Ignition Coil 2 and 3 Control B6 OG 406 Ignition Coil 2 and 3 Control
B7 WH 1653 Low Reference B7 WH 1653 Low Reference
B8 D-BU 417 TP Sensor Signal B8 D-BU 417 TP Sensor Signal
B9 L-GN 432 Manifold Absolute Pressure Sensor Signal B9 L-GN 432 Manifold Absolute Pressure Sensor Signal
B10 D-GN/WH 428 EVAP Canister Purge Solenoid Control B10 D-GN/WH 428 EVAP Canister Purge Solenoid Control
B11 D-GN 335 Low Speed Cooling Fan Relay Control B11 D-GN 335 Low Speed Cooling Fan Relay Control
B12 D-GN 135 Engine Coolant Temperature Sensor Gage Signal B12 D-GN 135 Engine Coolant Temperature Sensor Gage Signal
C1 L-GN/WH 1749 IAC Coil B High Control C1 L-GN/WH 1749 IAC Coil B High Control
C2 L-GN/BK 444 IAC Coil B Low Control C2 L-GN/BK 444 IAC Coil B Low Control
C3 D-GN/WH 465 Fuel Pump Relay Control C3 D-GN/WH 465 Fuel Pump Relay Control
C4 BN 472 Intake Air Temperature Sensor Signal C4 BN 472 Intake Air Temperature Sensor Signal
C5 PK 839 Ignition 1 Voltage (w/Manual Transmission) C5 PK 839 Ignition 1 Voltage
C6 PU 6 Crank Voltage C6 PU 6 Crank Voltage
C7 BK/WH 251 Ground C7 BK/WH 251 Ground
C8 OG/BK 469 Low Reference C8 OG/BK 469 Low Reference
C9 L-BU/BK 1688 5-Volt Reference C9 L-BU/BK 1688 5-Volt Reference
C10 BK 808 Low Reference C10 BK 808 Low Reference
C11 D-BU 473 High Speed Coil Fan Relay Control C11 D-BU 473 High Speed Coil Fan Relay Control
C12 YE 410 ECT Sensor Signal C12 YE 410 ECT Sensor Signal
D1 BK 808 Low Reference D1 BK 808 Low Reference
D2 BK 1744 Fuel Injector 1 and 4 Control D2 BK 1744 Fuel Injector 1 and 4 Control
D3 L-GN/BK 1745 Fuel Injector 2 and 3 Control D3 L-GN/BK 1745 Fuel Injector 2 and 3 Control
D6 BK/WH 1251 Shield Ground D6 BK/WH 1251 Shield Ground
D7 YE/BK 469 Low Reference D7 YE/BK 469 Low Reference
D8 D-BU/WH 496 Knock Sensor (KS) Signal D8 D-BU/WH 496 Knock Sensor (KS) Signal
C110 Body Harness to Body Jumper Harness

GM1468380Courtesy of GENERAL MOTORS CORP.
GM1499995Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-02027
  • 2-Way F NMWP 04F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-02020
  • 2-Way M Connector (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BN 250 Ground 1 BK 250 Ground
2 D-BU 15 Right Turn Signal Lamp Supply Voltage 2 WH 15 Right Turn Signal Lamp Supply Voltage
C110 Body Harness to Body Jumper Harness (w/ABS)

GM1468380Courtesy of GENERAL MOTORS CORP.
GM1499995Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-02027
  • 2-Way F NMWP 02F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-02020
  • 2-Way M Connector (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 D-BU/WH 873 Right Front Wheel Low Reference 1 D-BU/WH 873 Right Front Wheel Low Reference
2 BN/WH 833 Right Front Wheel Speed Sensor Signal 2 BN/WH 833 Right Front Wheel Speed Sensor Signal
C118 Engine Harness to Injector Harness (2.5L)

GM1468383Courtesy of GENERAL MOTORS CORP.
GM1468518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-06027
  • 6-Way F NMWP 06F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-06020
  • 6-Way M NMWP06M-B (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 L-BU 1153 Ignition Coil 1 Control 1 L-BU 1153 Ignition Coil 1 Control
2 D-BU 1154 Ignition Coil 2 Control 2 D-BU 1154 Ignition Coil 2 Control
3 YE 1155 Ignition Coil 3 Control 3 YE 1155 Ignition Coil 3 Control
4 BK 1744 Fuel Injector 1 Control 4 BK 1744 Fuel Injector 1 Control
5 L-GN/BK 1745 Fuel Injector 2 Control 5 L-GN/BK 1745 Fuel Injector 2 Control
6 RD/BK 1746 Fuel Injector 3 Control 6 RD/BK 1746 Fuel Injector 3 Control
C119 Engine Harness to Injector Harness (2.5L)

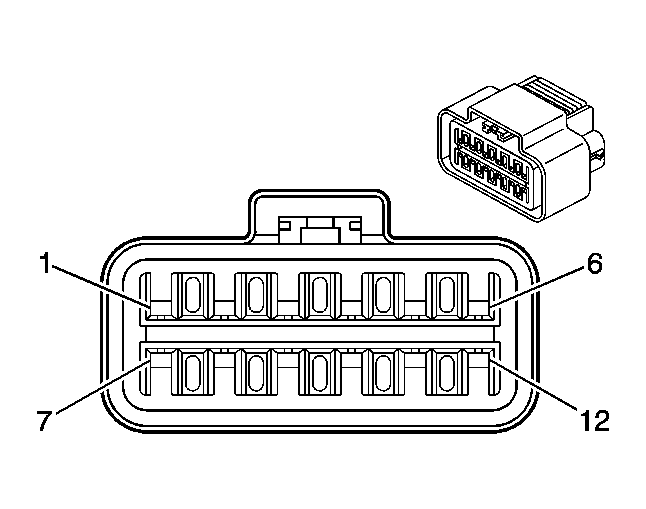

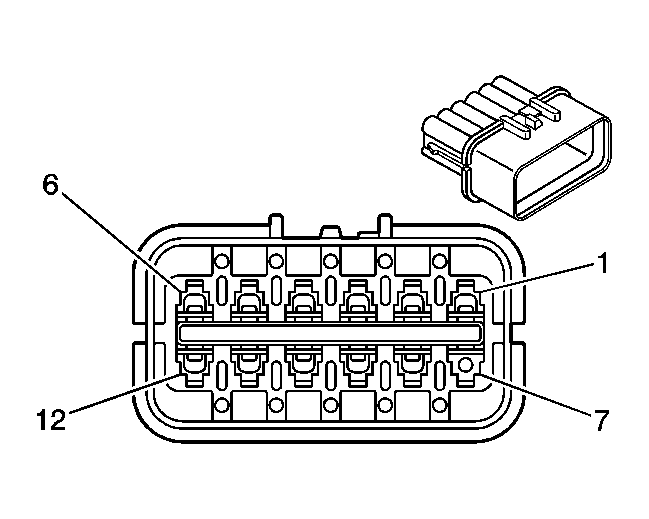

GM1468436Courtesy of GENERAL MOTORS CORP.
GM1468428Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-12027
  • 12-Way F NMWP12F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-12020
  • 12-Way M NMWP12M-B (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 RD 1156 Ignition Coil 4 Control 1 RD 1156 Ignition Coil 4 Control
2 D-GN 1157 Ignition Coil 5 Control 2 D-GN 1157 Ignition Coil 5 Control
3 GY 1158 Ignition Coil 6 Control 3 YE 1158 Ignition Coil 6 Control
4 PK/WH 139 Ignition 1 Voltage 4 PK/WH 139 Ignition 1 Voltage
5 PK 739 Ignition 1 Voltage 5 PK 739 Ignition 1 Voltage
6 YE 410 Engine Coolant Temperature (ECT) Sensor Signal 6 YE 410 Engine Coolant Temperature (ECT) Sensor Signal
7 D-BU/BK 844 Fuel Injector 4 Control 7 D-BU/BK 844 Fuel Injector 4 Control
8 D-BU/BK 845 Fuel Injector 5 Control 8 D-BU/BK 845 Fuel Injector 5 Control
9 YE/BK 846 Fuel Injector 6 Control 9 YE/BK 846 Fuel Injector 6 Control
10 BK 350 Ground 10 BK 350 Ground
11 - - Not Used 11 - - Not Used
12 BK/WH 645 Low Reference 12 BK/WH 645 Low Reference
C120 Front Harness to Right Headlamp Jumper (Except North America)

GM1468383Courtesy of GENERAL MOTORS CORP.
GM1468518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-06027
  • 6-Way F NMWP6F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-06020
  • 6-Way M NMWP06M-B (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BN/WH 309 Right Park Lamp Supply Voltage 1 BN/WH 309 Right Park Lamp Supply Voltage
2 BK 250 Ground 2 BK 250 Ground
3 D-GN 189 Headlamp Leveling Motor Supply Voltage 3 D-GN 189 Headlamp Leveling Motor Supply Voltage
4 D-GN/WH 311 Right Headlamp High Beam Supply Voltage 4 D-GN/WH 311 Right Headlamp High Beam Supply Voltage
5 BN/WH 312 Right Headlamp Low Beam Supply Voltage 5 BN/WH 312 Right Headlamp Low Beam Supply Voltage
6 BK 250 Ground 6 BK 250 Ground
C120 Front Harness to Right Headlamp Jumper (North America)

GM1468381Courtesy of GENERAL MOTORS CORP.
GM1497839Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-04027
  • 4-Way F NMWP 02F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-04020
  • 4-Way M Connector NMWP04M-B (GY)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 L-GN/BK 311 Right Headlamp High Beam Supply Voltage 1 RD 311 Right Headlamp High Beam Supply Voltage
2 BN/WH 1312 Right Headlamp Low Beam Supply Voltage 2 L-GN 1312 Right Headlamp Low Beam Supply Voltage
3 BK 1250 Ground 3 BK/WH 1250 Ground
4 - - Not Used 4 - - Not Used
C121 Front Harness to Left Headlamp Jumper (Except North America)

GM1468383Courtesy of GENERAL MOTORS CORP.
GM1468518Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-06027
  • 6-Way F NMWP6F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-06020
  • 6-Way M NMWP06M-B (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 PU 709 Left Park Lamp Supply Voltage 1 PU 709 Left Park Lamp Supply Voltage
2 BK 250 Ground 2 BK 250 Ground
3 D-GN 189 Headlamp Leveling Motor Supply Voltage 3 D-GN 189 Headlamp Leveling Motor Supply Voltage
4 D-GN/WH 711 Left Headlamp High Beam Supply Voltage 4 D-GN/WH 711 Left Headlamp High Beam Supply Voltage
5 BN/WH 712 Left Headlamp Low Beam Supply Voltage 5 BN/WH 712 Left Headlamp Low Beam Supply Voltage
6 BK 250 Ground 6 BK 250 Ground
C121 Front Harness to Left Headlamp Jumper (North America)

GM1468381Courtesy of GENERAL MOTORS CORP.
GM1497839Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-04027
  • 4-Way F NMWP 02F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-04020
  • 4-Way M Connector NMWP04M-B (GY)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 D-GN/WH 711 Left Headlamp High Beam Supply Voltage 1 RD 711 Left Headlamp High Beam Supply Voltage
2 YE 1712 Left Headlamp Low Beam Supply Voltage 2 L-GN 1712 Left Headlamp Low Beam Supply Voltage
3 BK 1250 Ground 3 BK/WH 1250 Ground
4 - - Not Used 4 - - Not Used
C191 ABS Harness to Left Front Wheel Speed Sensor Jumper Harness

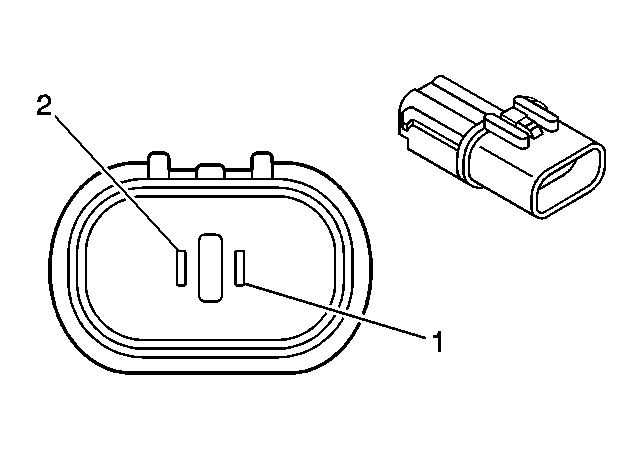

GM1466982Courtesy of GENERAL MOTORS CORP.
GM1466983Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174352-2
  • 2-Way F Econoseal J Mark II + Connector Plug Housing (BK)
 Connector Part Information
  • AMP 174354-2
  • 2-Way M Econoseal J-Mark II+ Connector Cap Hsg (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BN 830 Left Front Wheel Speed Sensor Signal 1 BK 830 Left Front Wheel Speed Sensor Signal
2 D-BU 872 Left Front Wheel Speed Sensor Low Reference 2 WH 872 Left Front Wheel Speed Sensor Low Reference
C192 Body Sub Harness to Right Front Wheel Speed Sensor Jumper Harness

GM1466982Courtesy of GENERAL MOTORS CORP.
GM1466983Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174352-2
  • 2-Way F Econoseal J Mark II + Connector Plug Housing (BK)
 Connector Part Information
  • AMP 174354-2
  • 2-Way M Econoseal J-Mark II+ Connector Cap Hsg (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BN/WH 833 Right Front Wheel Speed Sensor Signal 1 BK 833 Right Front Wheel Speed Sensor Signal
2 D-BU/WH 873 Right Front Wheel Speed Sensor Low Reference 2 WH 873 Right Front Wheel Speed Sensor Low Reference
C201 IP Harness to IP Fuse Block

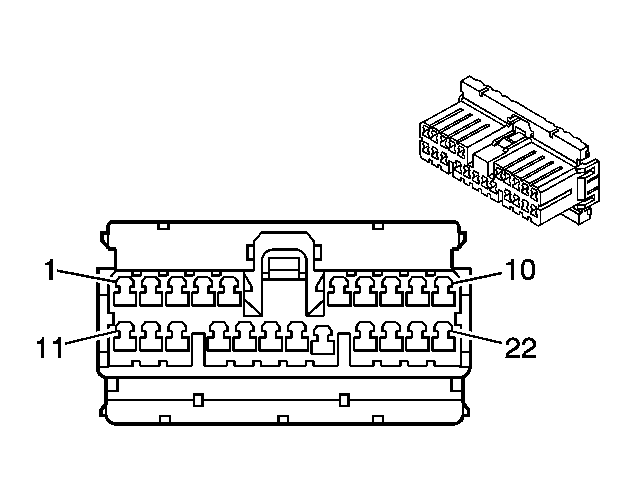

GM1500005Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85096-1
  • 22-Way F .070 MLC 22P PLUG HSG. (WH)
Pin Wire Color Circuit Number Function
1 PK 739 Ignition 1 Voltage
2 - - Not Used
3 PK 839 Ignition 1 Voltage
4 PK 839 Ignition 1 Voltage (North America)
5 PK 839 Ignition 1 Voltage
6 PK 239 Ignition 1 Voltage
PK 239 Ignition 1 Voltage
7 BN 41 Ignition 3 Voltage
8 BN/WH 41 Ignition 3 Voltage (w/Auto A/C)
9-11 - - Not Used
12 YE 43 Accessory Voltage
13 - - Not Used
14 YE 43 Accessory Voltage
15 YE 43 Accessory Voltage (w/A/T Except ITMS-6F)
16 BN 1141 Ignition 3 Voltage
17 PK/BK 239 Ignition 1 Voltage
18 PK 239 Ignition 1 Voltage
19-20 - - Not Used
21 BN/BK 41 Ignition 3 Voltage
22 PK 639 Ignition 1 Voltage
C202 IP Harness to IP Fuse Block

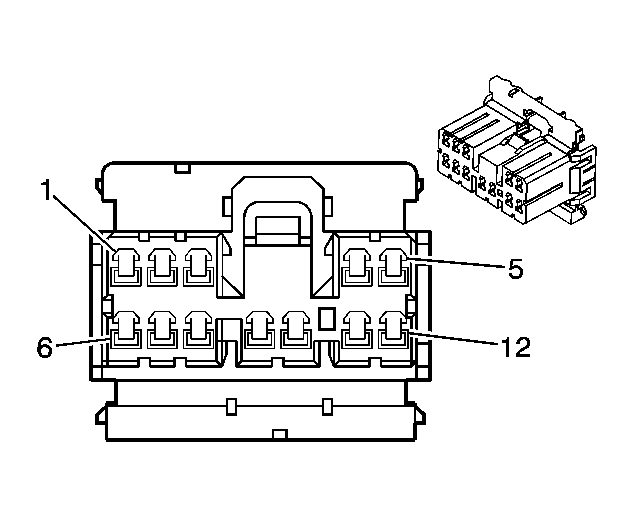

GM1500006Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 173851-1
  • 12-Way F .070 series multilock i/o connector, 12pos. plug housing) (WH)
Pin Wire Color Circuit Number Function
1-5 - - Not Used
6 PK 1139 Ignition 1 Voltage
7 PK/WH 439 Ignition 1 Voltage
8 PK/WH 439 Ignition 1 Voltage
9 PK/BK 439 Ignition 1 Voltage
10 PK 339 Ignition 1 Voltage
11 PK 339 Ignition 1 Voltage
12 - - Not Used
C203 IP Harness to IP Fuse Block

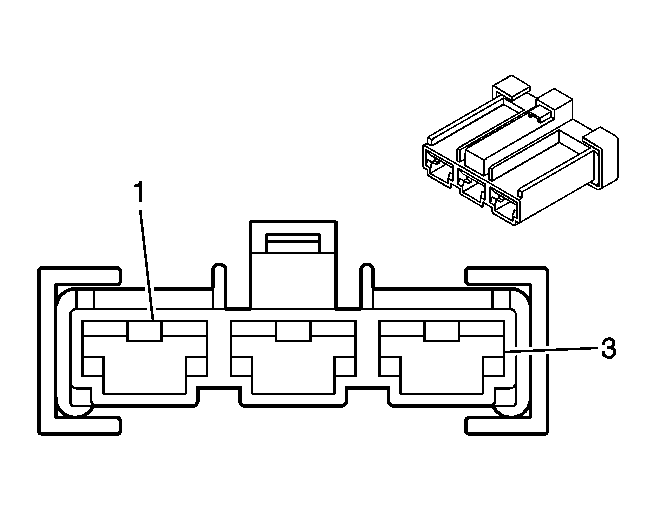

GM1500007Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 36331
  • 3-Way F Connector (BN)
Pin Wire Color Circuit Number Function
1 PK/D-BU 300 Ignition 3 Voltage
2 YE/WH 4 Accessory Voltage
3 PK 3 Ignition 1 Voltage
C204 IP Harness to IP Fuse Block

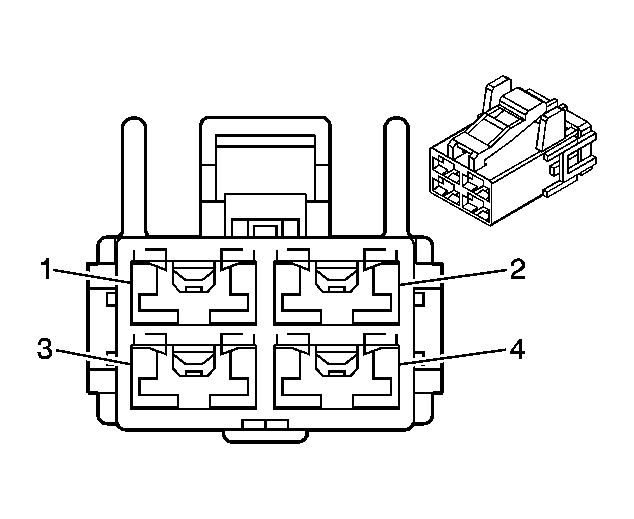

GM1500008Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MOLEX 35270-0410
  • 4-Way F Powermate Female Assy-4P (WH)
Pin Wire Color Circuit Number Function
1 PK 939 Ignition 1 Voltage
PK 939 Ignition 1 Voltage
2 RD/YE 242 Battery Positive Voltage
3 PK/BK 141 Ignition 3 Voltage (w/Auto A/C)
PK/BK 141 Ignition 3 Voltage
4 PU/WH 1293 Heated Mirror/Rear Defog Supply Voltage
C205 IP Harness to IP Fuse Block

GM1466978Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 173853-1
  • 18-Way M 070 Series Multilock Plug 18P (WH)
Pin Wire Color Circuit Number Function
1 OG 1140 Battery Positive Voltage
2 OG 1140 Battery Positive Voltage
3 YE/BK 343 Accessory Voltage
4 YE/BK 343 Accessory Voltage
5 YE/WH 143 Accessory Voltage
6 OG 40 Battery Positive Voltage (w/Cruise Control)
7 OG 40 Battery Positive Voltage
8 - - Not Used
9 OG 1840 Battery Positive Voltage
10-11 - - Not Used
12 YE/BK 343 Accessory Voltage
13-14 - - Not Used
15 YE/WH 143 Accessory Voltage
16 - - Not Used
17 YE 243 Ignition 3 Voltage
18 OG 267 Heated Mirror/Rear Defog Supply Voltage
C206 Body Harness to Roof Harness

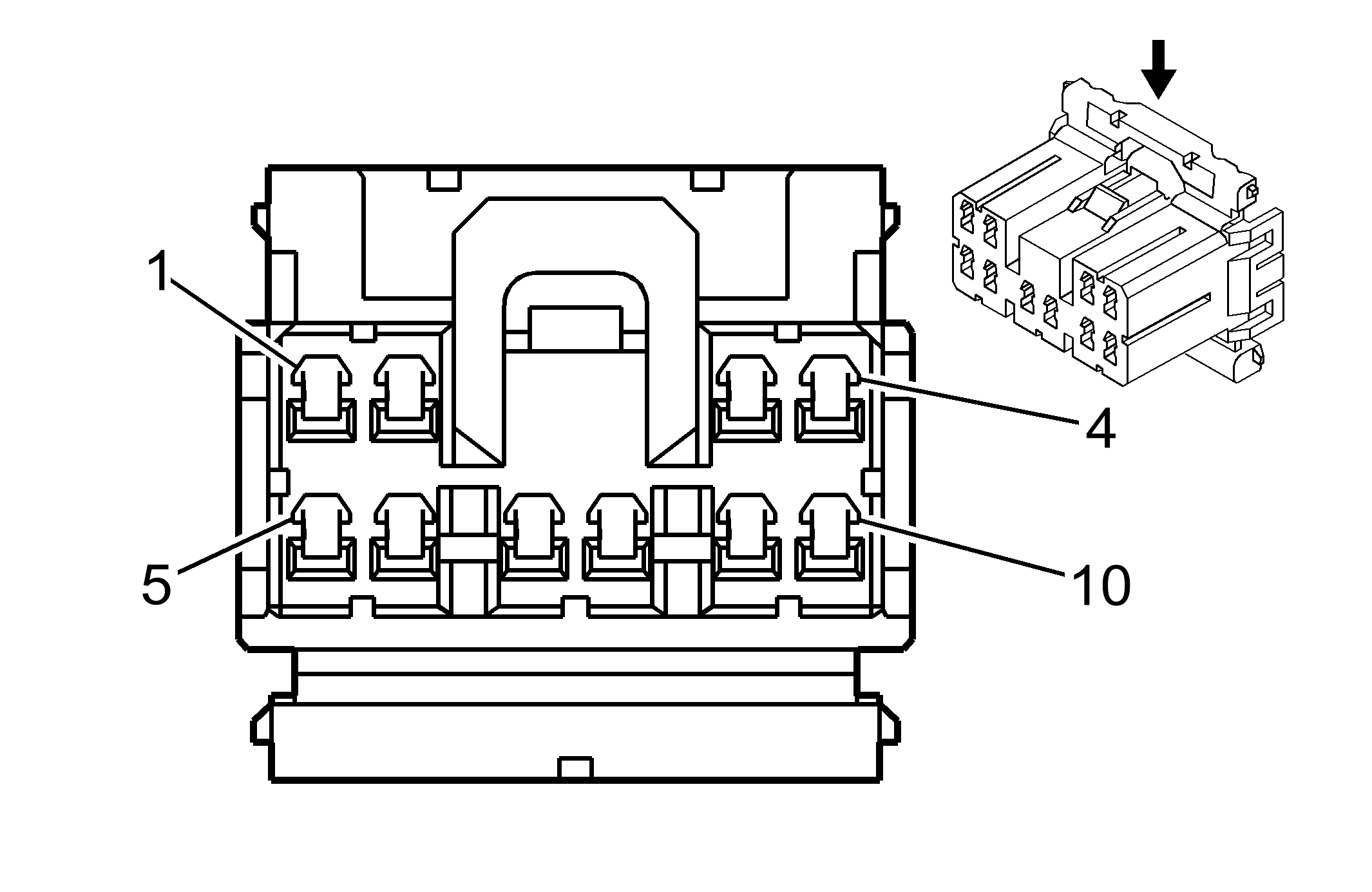

GM1500013Courtesy of GENERAL MOTORS CORP.

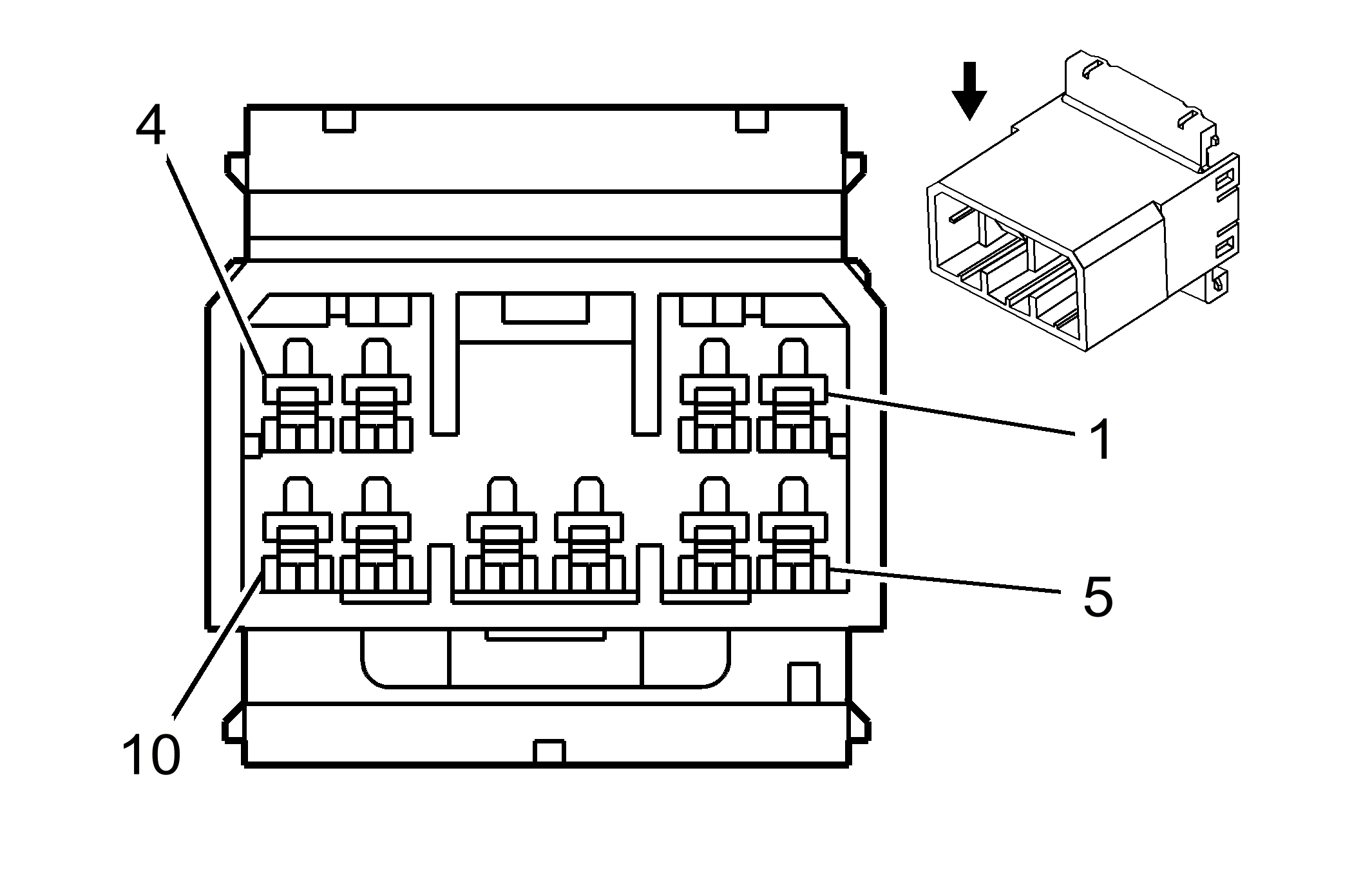

GM1500010Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368541-1
  • 10-Way F .070 MLC 10P PLUG HSG. (WH)
 Connector Part Information
  • AMP 368506
  • 10-Way M .070 MLC 10P CAP HSG. (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 L-GN/BK 80 Key In Ignition Switch Signal 1 L-GN/BK 80 Key In Ignition Switch Signal
2 L-GN 24 Back up Lamp Supply Voltage 2 L-GN 24 Back up Lamp Supply Voltage
3 PK 839 Ignition 1 Voltage 3 PK 839 Ignition 1 Voltage
4 YE 43 Accessory Voltage 4 YE 43 Accessory Voltage
5 D-GN/WH 817 Vehicle Speed Signal 5 D-GN/WH 817 Vehicle Speed Signal
D-GN/WH 817 Vehicle Speed Signal
6 OG 640 Battery Positive Voltage 6 OG 640 Battery Positive Voltage
7 - - Not Used 7 - - Not Used
8 OG 840 Battery Positive Voltage 8 OG 840 Battery Positive Voltage
9 D-BU 107 Front Interior Lamp Control 9 D-BU 107 Front Interior Lamp Control
10 - - Not Used 10 - - Not Used
C207 Body Harness to IP Harness (2.0L)

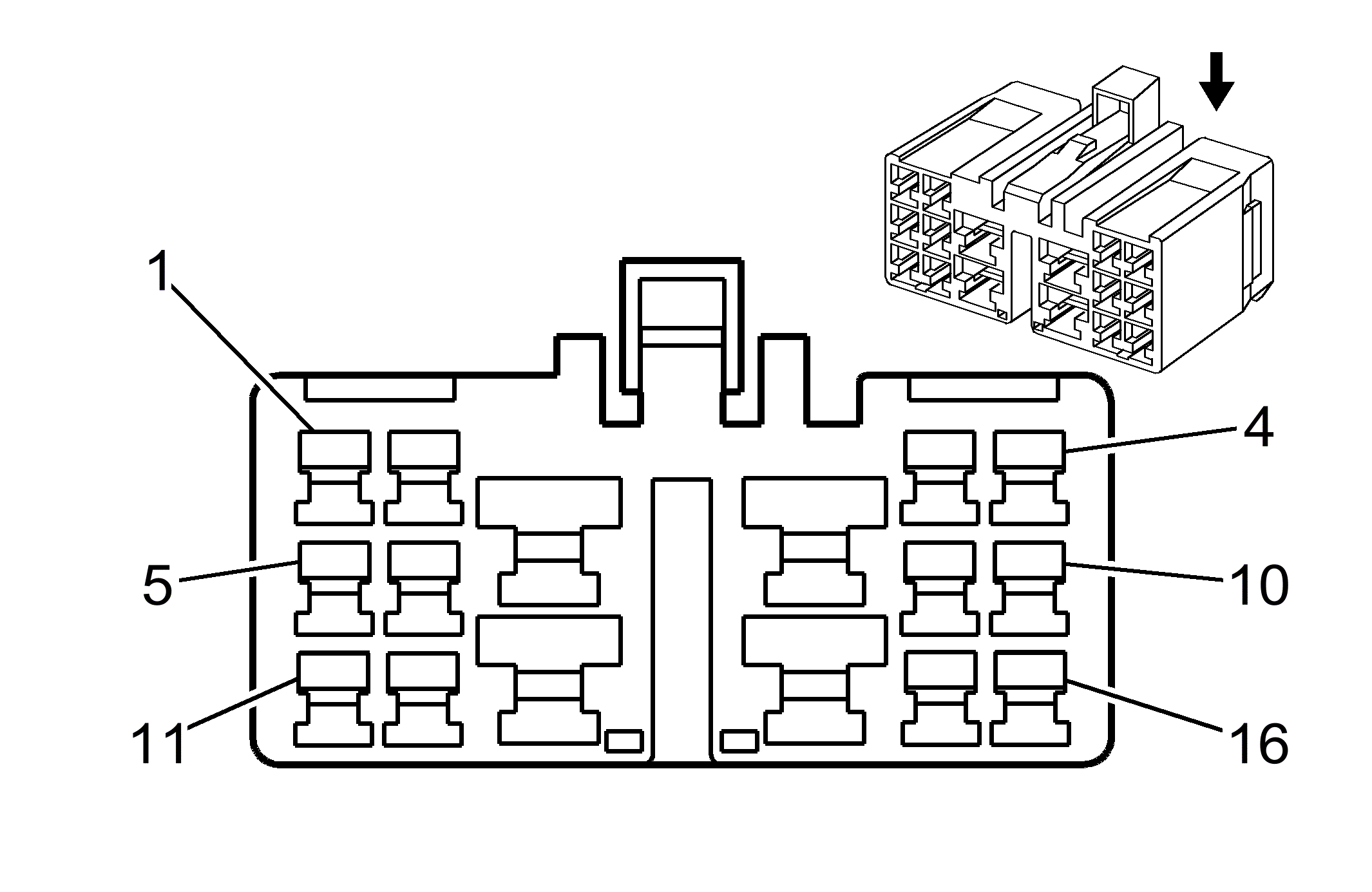

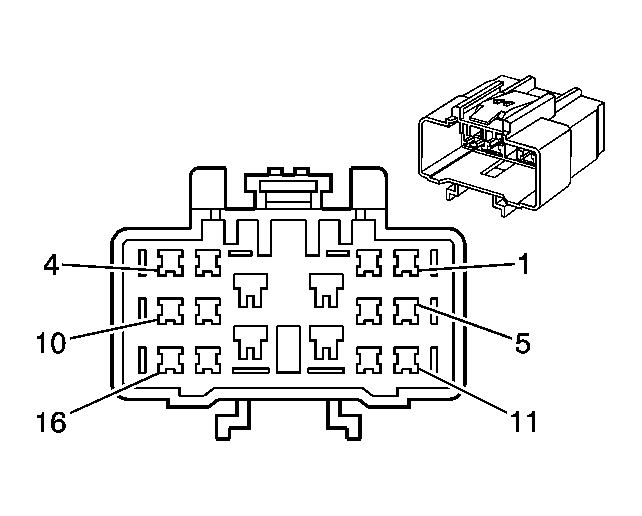

GM1500016Courtesy of GENERAL MOTORS CORP.
GM1500015Courtesy of GENERAL MOTORS CORP.

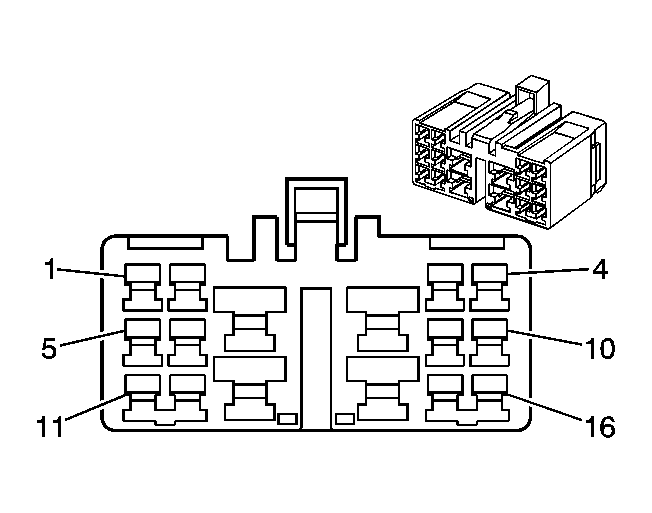

Connector Part Information

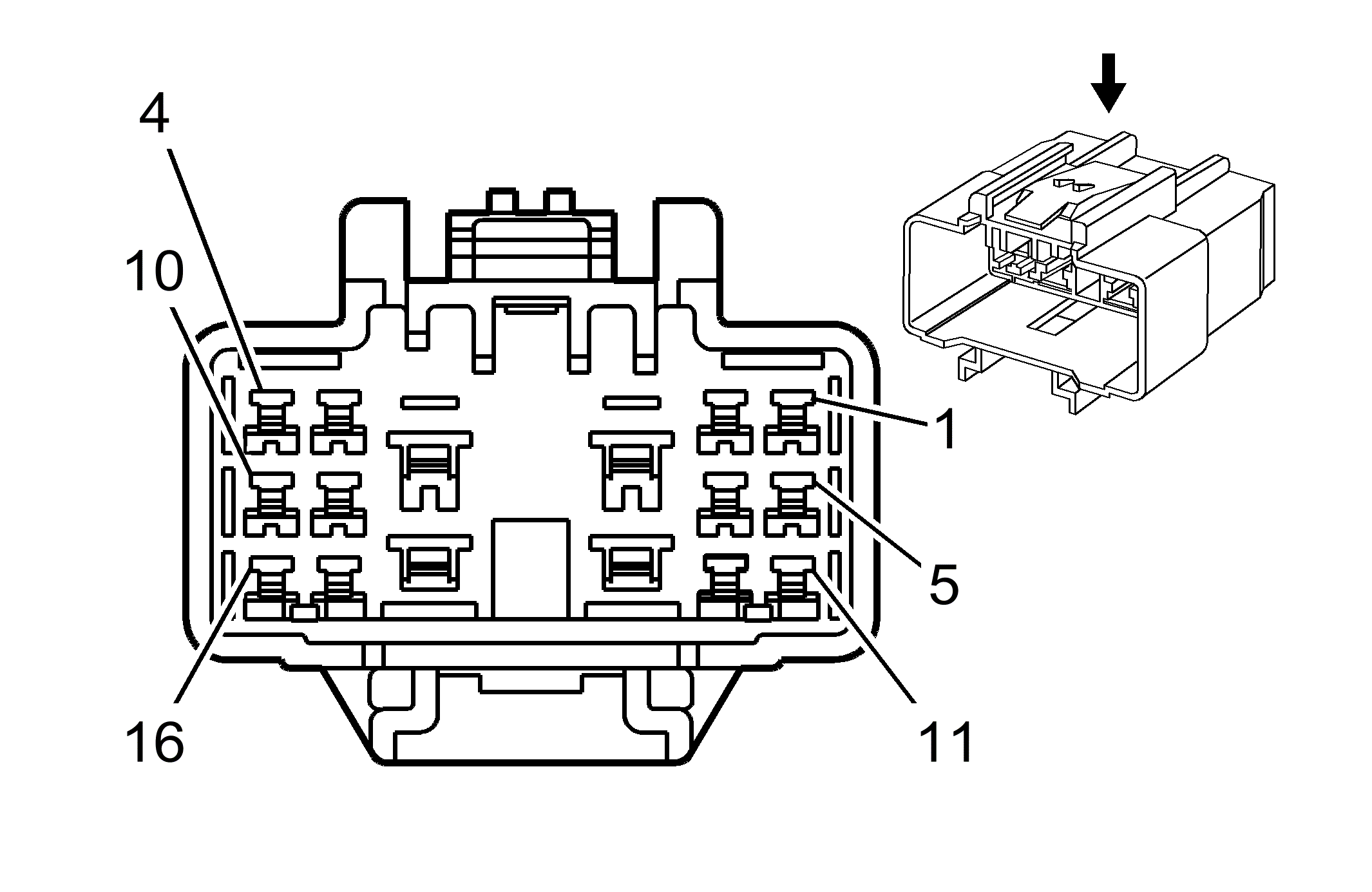

  • KET MG 651881
  • 16-Way F Connector (WH)
 Connector Part Information
  • KET MG 641883
  • 16-Way M Connector (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 D-BU 15 Right Turn Signal Lamp Supply Voltage 1 D-BU 15 Right Turn Signal Lamp Supply Voltage
2 GY 120 Fuel Pump Supply Voltage 2 GY 120 Fuel Pump Supply Voltage
3 PK 839 Ignition 1 Voltage 3 PK 839 Ignition 1 Voltage
4 - - Not Used 4 - - Not Used
5 L-BU 14 Left Turn Signal Lamp Supply Voltage 5 L-BU 14 Left Turn Signal Lamp Supply Voltage
6 BN 157 Courtesy Lamp Control 6 BN 157 Courtesy Lamp Control
7 RD/YE 242 Battery Positive Voltage 7 RD/YE 242 Battery Positive Voltage
8 PU/WH 1293 Rear Defog Element Supply Voltage 8 PU/WH 1293 Rear Defog Element Supply Voltage
9 RD 122 Rear Fog Lamp Supply Voltage 9 RD 122 Rear Fog Lamp Supply Voltage
10 PK/WH 439 Ignition 1 Voltage 10 PK/WH 439 Ignition 1 Voltage
11 - - Not Used 11 - - Not Used
12 PU 30 Fuel Lever Sensor Signal 12 PU 30 Fuel Lever Sensor Signal
13 PK 739 Ignition 1 Voltage 13 PK 739 Ignition 1 Voltage
14 D-GN 267 Wiper Low Signal 14 D-GN 267 Wiper Low Signal
D-GN 267 Wiper Low Signal D-GN 267 Wiper Low Signal
15 BN 1141 Ignition 3 Voltage 15 BN 1141 Ignition 3 Voltage
16 OG 1340 Battery Positive Voltage 16 OG 1340 Battery Positive Voltage
C207 Body Harness to IP Harness (2.5L)

GM1500016Courtesy of GENERAL MOTORS CORP.
GM1500015Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651881
  • 16-Way F Connector (WH)
 Connector Part Information
  • KET MG 641883
  • 16-Way M Connector (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 D-BU 15 Right Turn Signal Lamp Supply Voltage 1 D-BU 15 Right Turn Signal Lamp Supply Voltage
2 GY 120 Fuel Pump Supply Voltage 2 GY 120 Fuel Pump Supply Voltage
3 PK 839 Ignition 1 Voltage 3 PK 839 Ignition 1 Voltage
4 L-GN 1100 Wheel Speed Signal (w/o ABS) 4 L-GN 1100 Wheel Speed Signal (w/o ABS)
5 L-BU 14 Left Turn Signal Lamp Supply Voltage 5 L-BU 14 Left Turn Signal Lamp Supply Voltage
6 BN 137 Courtesy Lamp Control 6 BN 137 Courtesy Lamp Control
7 RD/YE 242 Battery Positive Voltage 7 RD/YE 242 Battery Positive Voltage
8 PU/WH 1293 Rear Defog Element Supply Voltage (w/Heated Mirrors) 8 PU/WH 1293 Rear Defog Element Supply Voltage (w/Heated Mirrors)
9 - - Not Used 9 - - Not Used
10 PK/WH 439 Ignition 1 Voltage 10 PK/WH 439 Ignition 1 Voltage
11 YE 427 Idle Speed Control Motor Switch Signal 11 YE 427 Idle Speed Control Motor Switch Signal
12 L-GN/BK 1102 Rough Road Sensor Signal (w/o ABS) 12 L-GN/BK 1102 Rough Road Sensor Signal (w/o ABS)
13 PK 739 Ignition 1 Voltage 13 PK 739 Ignition 1 Voltage
14 D-GN 267 Wiper Low Signal (w/Heated Mirrors) 14 D-GN 267 Wiper Low Signal (w/Heated Mirrors)
D-GN 267 Wiper Low Signal (w/Heated Mirrors) D-GN 267 Wiper Low Signal (w/Heated Mirrors)
15 BN 1141 Ignition 3 Voltage 15 BN 1141 Ignition 3 Voltage
BN 1141 Ignition 3 Voltage
16 OG 1340 Battery Positive Voltage 16 OG 1340 Battery Positive Voltage
C208 IP Harness to Body Harness

GM1500018Courtesy of GENERAL MOTORS CORP.
GM1500019Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 641884
  • 16-Way F Connector (YE)
 Connector Part Information
  • KET MG 651882
  • 16-Way M Connector (YE)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 WH 1080 Park Lamp Relay Control 1 WH 1080 Park Lamp Relay Control
2 D-GN/BK 1798 Park/Headlamps On Signal 2 D-GN/BK 1798 Park/Headlamps On Signal
3 BN 41 Ignition 3 Voltage 3 BN 41 Ignition 3 Voltage
BN 41 Ignition 3 Voltage
4 GY 161 Antenna Motor Up 4 GY 161 Antenna Motor Up
5 GY 118 Left Front Speaker Output (-) 5 GY 118 Left Front Speaker Output (-)
6 YE 116 Left Rear Speaker Output (-) 6 YE 116 Left Rear Speaker Output (-)
7 PK 939 Ignition 1 Voltage 7 PK 939 Ignition 1 Voltage
8 RD/BK 1642 Battery Positive Voltage 8 RD/BK 1642 Battery Positive Voltage
9 PK/BK 1739 Ignition 1 Voltage 9 BN 1739 Ignition 1 Voltage
10 D-GN/BK 2905 Serial Data 10 D-GN/BK 2905 Serial Data
11 BN/WH 201 Left Front Speaker Output (+) 11 BN/WH 201 Left Front Speaker Output (+)
12 BN 119 Left Rear Speaker High Signal 12 BN 119 Left Rear Speaker High Signal
13 RD/D-BU 742 Battery Positive Voltage 13 RD/D-BU 742 Battery Positive Voltage
14 RD/WH 642 Battery Positive Voltage 14 RD/WH 642 Battery Positive Voltage
15 D-GN/BK 2656 Service Traction Control Signal 15 D-GN/WH 2656 Service Traction Control Signal
16 GY/WH 3656 TCS Switch Signal 16 GY/WH 3656 TCS Switch Signal
C209 IP Harness to Body Harness

GM1479698Courtesy of GENERAL MOTORS CORP.
GM1468554Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651086
  • 22-Way F 090-II Connector (WH)
 Connector Part Information
  • KET MG 641089
  • 22-Way M 090-II Connector (WH)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 BK/WH 28 Horn Relay Control 1 BK/WH 28 Horn Relay Control
2 BN/WH 312 Right Headlamp Low Beam Supply (w/Headlamp Leveling) 2 BN/WH 312 Right Headlamp Low Beam Supply (w/Headlamp Leveling)
3 L-GN 24 Back up Lamp Supply Voltage 3 L-GN 24 Back up Lamp Supply Voltage
4 PK/BK 2501 Heated Seat Supply Voltage - (w/Heated Seats) 4 PK/BK 2501 Heated Seat Supply Voltage - (w/Heated Seats)
5 OG 640 Battery Positive Voltage 5 OG/BK 640 Battery Positive Voltage
6 OG 140 Battery Positive Voltage 6 OG 140 Battery Positive Voltage
7 BN/WH 309 Right Park Lamp Supply Voltage 7 BN/WH 309 Right Park Lamp Supply Voltage
8 D-GN 95 Windshield Washer Switch Signal 8 D-GN/WH 95 Windshield Washer Switch Signal
9 RD 228 Windshield Washer Pump Control 9 RD 228 Windshield Washer Pump Control
10 PU/WH 92 Windshield Wiper Motor High Speed 10 PU/WH 92 Windshield Wiper Motor High Speed
11 BN/WH 33 Brake Warning Indicator Control 11 BN/WH 33 Brake Warning Indicator Control
12 BN/WH 186 AT Shift Lock Solenoid Control (w/A/T Except ITMS-6F) 12 BN/WH 186 AT Shift Lock Solenoid Control
13 L-BU 20 Stoplamp Supply Voltage 13 L-BU 20 Stoplamp
14 PK/BK 141 Ignition 3 Voltage 14 PK/BK 141 Ignition 3 Voltage
15 YE 43 Accessory Voltage 15 YE 43 Accessory Voltage
16 L-BU 1346 Headlamp Supply Voltage/Headlamp Control 16 L-BU 1346 Headlamp Supply Voltage/Headlamp Control
17 D-GN 905 Serial Data 17 D-GN 905 Serial Data
D-GN 905 Serial Data
18 L-GN 11 Headlamp High Beam Supply Voltage 18 L-GN 11 Headlamp High Beam Supply Voltage
19 PU 709 Left Park Lamp Supply Voltage 19 PU 709 Left Park Lamp Supply Voltage
20 BK/WH 251 Ground 20 BK/WH 251 Ground
21 L-BU 97 Windshield Wiper Switch Signal 21 L-BU 97 Windshield Wiper Switch Signal
22 BN/WH 96 Windshield Wiper Switch Pulse Delay Signal 22 BN/WH 96 Windshield Wiper Switch Pulse Delay Signal
C210 Body Harness to IP Harness (Except North America)

GM1467134Courtesy of GENERAL MOTORS CORP.
GM1500020Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651563
  • 23-Way F PCB 050 Series (WH)
 Connector Part Information
  • KET MG 641560
  • 23-Way M Connector (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 YE/WH 317 Fog Lamp Relay Coil Supply Voltage 1 YE/WH 317 Fog Lamp Relay Coil Supply Voltage
2 - - Not Used 2 - - Not Used
3 L-GN 89 Mirror Motor Down Control 3 L-GN 89 Mirror Motor Down Control
4 WH 81 Mirror Motor Right Control 4 WH 81 Mirror Motor Right Control
5 YE 61 Low Reference 5 YE 61 Low Reference
6-7 - - Not Used 6-7 - - Not Used
8 PK/BK 1303 Liftgate Ajar Switch Signal 8 PK/BK 1303 Liftgate Ajar Switch Signal
9 PK 339 Ignition 1 Voltage 9 PK 339 Ignition 1 Voltage
10 L-BU 263 Rear Compartment Lid Ajar Switch Signal 10 L-BU 263 Rear Compartment Lid Ajar Switch Signal
11 D-BU/WH 555 Serial Data 11 D-BU/WH 555 Power Steering Control Module Serial Data
12 - - Not Used 12 - - Not Used
13 L-GN/BK 1555 SSPS Warning Lamp Signal 13 L-GN/BK 1555 SSPS Warning Lamp Signal
14 GY 90 Passenger Mirror Motor Left Control 14 GY 90 Passenger Mirror Motor Left Control
15 L-GN/BK 735 Ambient Air Temperature Sensor Signal 15 L-GN/BK 735 Ambient Air Temperature Sensor Signal
16 L-BU/WH 220 Vehicle Anti-theft System Signal Starter Inhibit 16 L-BU/WH 220 Vehicle Anti-theft System Signal Starter Inhibit
17 D-GN 1656 Traction Control Active Signal 17 D-GN 1656 Traction Control Active Signal
18 D-GN/WH 1867 12 Volt Reference 18 D-GN/WH 1867 12 Volt Reference
19-20 - - Not Used 19-21 - - Not Used
21 YE 172 Low Fuel Indicator Control
22 L-GN 80 Key in Ignition Switch Signal 22 L-GN 80 Key in Ignition Switch Signal
23 BN/WH 238 Seat Belt Switch Left 23 BN/WH 238 Seat Belt Switch Left
C210 Body Harness to IP Harness (North America)

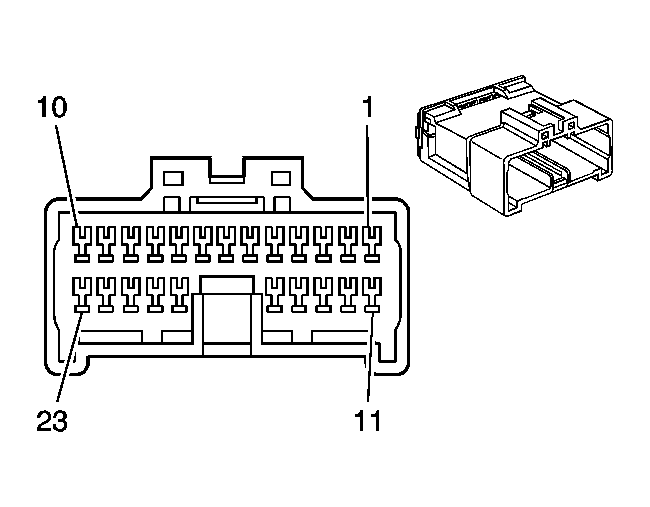

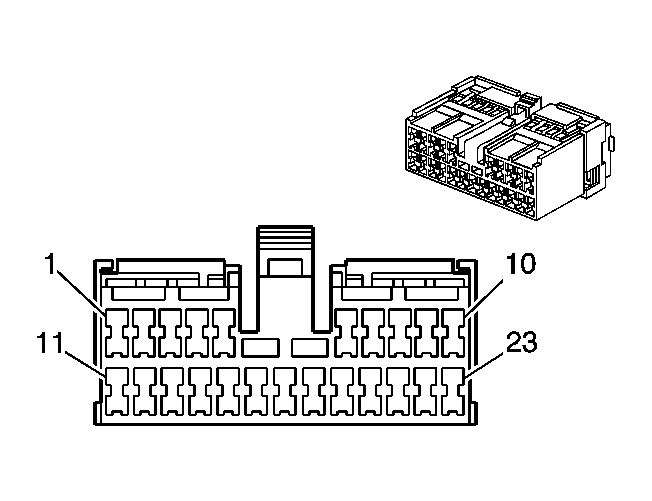

GM1467134Courtesy of GENERAL MOTORS CORP.
GM1500020Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651563
  • 23-Way F PCB 050 Series (WH)
 Connector Part Information
  • KET MG 641560
  • 23-Way M PCB 050 Series (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 YE/WH 317 Fog Lamp Relay Coil Supply Voltage 1 YE/WH 317 Fog Lamp Relay Coil Supply Voltage
2 YE/BK 1921 CAN Serial Data High 2 YE/BK 1921 CAN Serial Data High
3 L-GN 89 Mirror Motor Down Control 3 L-GN 89 Mirror Motor Down Control
4 WH 81 Mirror Motor Right Control 4 WH 81 Mirror Motor Right Control
5 YE 61 Low Reference (w/Auto A/C) 5 YE 61 Low Reference
6 BK 1001 Front End Sensor - LH - Signal 6 D-GN 1001 Front End Sensor - LH - Signal
7 PU 1002 Front End Sensor - LH -Voltage 7 WH 1002 Front End Sensor - LH -Voltage
8 PK/BK 1303 Rear Compartment Lid Ajar Switch Signal 8 PK/BK 1303 Rear Compartment Lid Ajar Switch Signal
9 PK 339 Ignition 1 Voltage 9 PK 339 Ignition 1 Voltage
10 L-BU 263 Rear Compartment Lid Ajar Switch Signal 10 L-BU 263 Rear Compartment Lid Ajar Switch Signal
11 D-BU/WH 355 Power Steering Control Module Serial Data 11 D-BU/WH 355 Power Steering Control Module Serial Data
12 WH/BK 1922 CAN Serial Data Low 12 WH/BK 1922 CAN Serial Data Low
13 L-GN/BK 1555 SSPS Warning Lamp Signal 13 L-GN/BK 1555 SSPS Warning Lamp Signal
14 GY 90 Passenger Mirror Motor Left Control 14 GY 90 Passenger Mirror Motor Left Control
15 L-GN/BK 735 Ambient Air Temperature Sensor Signal (w/Auto A/C) 15 L-GN/BK 735 Ambient Air Temperature Sensor Signal (w/Auto A/C)
16 L-BU/WH 220 Parking Brake Warning Signal 16 L-BU/WH 220 Parking Brake Warning Signal
17 D-GN 1656 Traction Control Active Signal 17 D-GN 1656 Traction Control Active Signal
18 D-GN/WH 1867 ABS Warning Signal 18 D-GN/WH 1867 ABS Warning Signal
19 RD 1003 Front End Sensor - RH Voltage 19 D-BU 1003 Front End Sensor - RH Voltage
20 D-GN 1004 Front End Sensor - RH Signal 20 WH 1004 Front End Sensor - RH Signal
21 YE 172 Low Fuel Indicator Control 21 YE 172 Low Fuel Indicator Control
22 L-GN 80 Key in Ignition Switch Signal 22 L-GN 80 Key in Ignition Switch Signal
23 BN/WH 238 Seat Belt Switch Left 23 BN/WH 238 Seat Belt Switch Left
C211 IP Harness to TCM Harness (North America)

GM1467052Courtesy of GENERAL MOTORS CORP.
GM1467070Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610837
  • 22-Way F Hybrid 2507 Hsg (WH)
 Connector Part Information
  • KET MG 620838
  • 22-Way M Hybrid 2507 Hsg (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 L-GN/WH 1027 Hold Mode Switch Signal 1 L-GN/WH 1027 Hold Mode Switch Signal
2 L-GN/BK 3013 PNP Switch L4 Signal 2 L-GN/BK 3013 PNP Switch L4 Signal
3 D-GN/WH 817 Vehicle Speed Signal (VSS) 3 D-GN/WH 817 Vehicle Speed Signal (VSS)
4 D-BU/D-GN 3003 TP Sensor Signal (ITMS-6F) 4 D-BU/D-GN 3003 TP Sensor Signal (ITMS-6F)
5 - - Not Used 5 - - Not Used
6 RD/D-BU 3012 PNP Switch L3 Signal 6 RD/D-BU 3012 PNP Switch L3 Signal
7 BK 251 Ground 7 BK/WH 251 Ground
BK 251 Ground (w/A/T Except ITMS-6F)
8 OG/BK 434 Park/Neutral Position Signal (ITMS-6F) 8 OG/BK 434 Park/Neutral Position Signal (ITMS-6F)
YE/BK 1921 CAN Serial Data High (MR-140 Sirius D6) YE/BK 1921 CAN Serial Data High (MR-140 Sirius D6)
9 L-BU 20 Stoplamp Supply Voltage 9 L-BU 20 Stoplamp Supply Voltage
10 BN 3018 Hold Mode Indicator Control 10 BN 3018 Hold Mode Signal
11 L-GN/RD 3011 PNP Switch L2 Signal 11 L-GN/RD 3011 PNP Switch L2 Signal
12 PK 439 Ignition 1 Voltage 12 PK 439 Ignition 1 Voltage
13 GY/BK 3015 Engine Torque Requested (ITMS-6F) 13 GY/BK 3015 Engine Torque Requested (ITMS-6F)
WH/BK 1922 CAN Serial Data Low (MR-140 Sirius D6) WH/BK 1922 CAN Serial Data Low (MR-140 Sirius D6)
WH/BK 1922 CAN Serial Data Low (ITMS-6F)
14 OG/BK 1786 Transmission Park Neutral Signal 14 OG/BK 1786 Transmission Park Neutral Signal
15 - - Not Used 15 - - Not Used
16 D-BU/RD 3010 Park/Neutral Position (PNP) Switch L1 Signal 16 D-BU/RD 3010 Park/Neutral Position (PNP) Switch L1 Signal
17 L-GN 24 Backup Lamp Supply Voltage 17 L-GN 24 Backup Lamp Supply Voltage
18 OG 440 Battery Positive Voltage 18 OG 440 Battery Positive Voltage
19 D-GN 905 Serial Data 19 D-GN 905 Serial Data
20 PK 839 Ignition 1 Voltage 20 PK 839 Ignition 1 Voltage
21 WH 121 Engine Speed Signal (ITMS-6F) 21 WH 121 Engine Speed Signal (ITMS-6F)
22 YE 1410 Engine Torque Signal (ITMS-6F) 22 YE 1410 Engine Torque Signal (ITMS-6F)
C213 IP Harness to Air Bag Harness

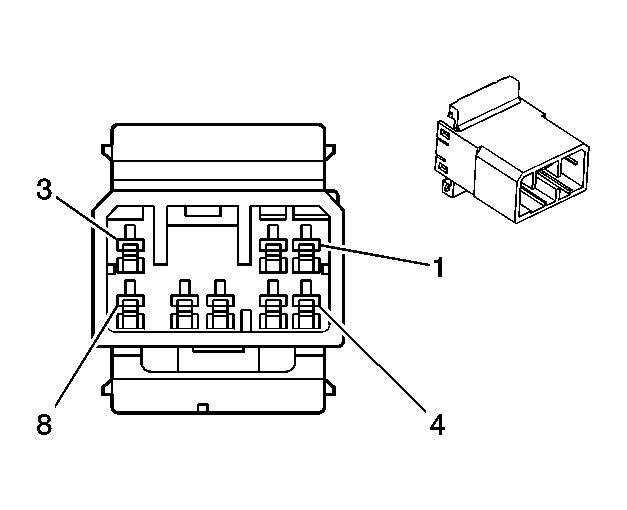

GM1466974Courtesy of GENERAL MOTORS CORP.
GM1468543Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 173850
  • 8-Way F 070 Series Multi Lock Plug 8P (WH)
 Connector Part Information
  • AMP 174931
  • 8-Way M 070 Series Multi Lock (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 PU 1002 Front End Sensor - LH - Voltage (North America) 1 PU 1002 Front End Sensor - LH - Voltage (North America)
2 BK 1001 Front End Sensor - LH - Signal (North America) 2 BK 1001 Front End Sensor - LH - Signal (North America)
BN/WH 238 Seat Belt Switch Signal BN/WH 238 Seat Belt Switch Signal
3 BK 1001 Front End Sensor - LH - Signal 3 BK 1001 Front End Sensor - LH - Signal
4 - - Not Used (Except North America) 4 - - Not Used (Except North America)
D-GN 1004 Front End Sensor - RH Voltage D-GN 1004 Front End Sensor - RH Voltage (North America)
5 RD 1003 Front End Sensor - RH Signal (North America) 5 RD 1003 Front End Sensor - RH Signal (North America)
6 PK 1139 Ignition 1 Voltage 6 PK 1139 Ignition 1 Voltage
7 YE/BK 2800 Serial Data (SDM) 7 YE/BK 2800 Serial Data (SDM)
8 YE 358 Air Bag Indicator Control 8 YE 358 Air Bag Indicator Control
C216 IP Harness to IP Switch Harness

GM1467122Courtesy of GENERAL MOTORS CORP.
GM1467087Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651068
  • 15-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641071
  • 15-Way M 090-II Series (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BN/WH 193 Rear Defog Indicator Control 1 BN/WH 193 Rear Defog Indicator Control
2 BK 250 Ground 2 BK 250 Ground
3 YE 1977 Rear Fog Lamps Switch Signal 3 YE 1977 Rear Fog Lamps Switch Signal
4 OG 267 Heated Mirror Rear Defog Relay Coil Supply Voltage 4 OG 267 Heated Mirror Rear Defog Relay Coil Supply Voltage
5 RD 122 Rear Fog Lamp Supply Voltage 5 RD 122 Rear Fog Lamp Supply Voltage
6 YE/BK 343 Right Hand Heating Mat Switch ACC Voltage 6 YE/BK 343 Right Hand Heating Mat Switch ACC Voltage
7 YE/BK 343 Accessory Voltage 7 YE/BK 343 Accessory Voltage
8 PK/BK 2501 Heated Seat - Left Supply Voltage 8 PK/BK 2501 Heated Seat - Left Supply Voltage (w/Heated Seat)
9 D-BU/BK 2505 Heated Seat - Right Supply Voltage 9 D-BU/BK 2505 Heated Seat - Right Supply Voltage (w/Heated Seat)
10 D-GN 44 Instrument Panel Lamps Dimmer Switch Signal 10 D-GN 44 Instrument Panel Lamps Dimmer Switch Signal
11 BN/WH 309 Right Park Lamp Supply Voltage 11 BN/WH 309 Right Park Lamp Supply Voltage
BN/WH 309 Right Park Lamp Supply Voltage BN/WH 309 Right Park Lamp Supply Voltage (w/o DRL)
12 YE/WH 317 Fog Lamp Relay Coil Supply Voltage 12 YE/WH 317 Fog Lamp Relay Coil Supply Voltage
YE/WH 317 Fog Lamp Relay Coil Supply Voltage (Except North America) YE/WH 317 Fog Lamp Relay Coil Supply Voltage (Except North America)
13 BK 1250 Ground 13 BK 1250 Ground
14 BN/WH 309 Right Park Lamp Supply Voltage 14 L-GN 309 Right Park Lamp Supply Voltage
15 YE/WH 145 Accessory Voltage 15 YE 145 Accessory Voltage
C217 IP Harness to HVAC Harness

GM1467001Courtesy of GENERAL MOTORS CORP.
GM1468426Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 85113-1
  • 15-Way F .070/.250 Series Hybrid 15P Plug Hsg (WH)
 Connector Part Information
  • AMP 85114-1
  • 15-Way M .070/.250 Hybrid 15P CAP HSG (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 YE 61 Low Reference (w/Auto A/C) 1 YE 61 Low Reference
2 D-GN/WH 762 AC Request Signal 2 D-GN/WH 762 AC Request Signal
3 D-GN 44 Instrument Panel Lamps Dimmer Switch Signal 3 D-GN 44 Instrument Panel Lamps Dimmer Switch Signal
4 BN/WH 309 Illumination Voltage 4 BN/WH 309 Illumination Voltage
5 D-GN/RD 817 Vehicle Speed Signal (w/Auto A/C) 5 D-GN/RD 817 Vehicle Speed Signal
6 BN/BK 41 Ignition 3 Voltage 6 BN 41 Ignition 3 Voltage
7 PK/BK 239 Ignition 1 Voltage 7 PK/BK 239 Ignition 1 Voltage
8 OG 1140 Battery Positive Voltage 8 OG 1140 Battery Positive Voltage
9 L-GN/BK 735 Ambient Air Temperature Sensor Signal 9 - 735 Ambient Air Temperature Sensor Signal
10 YE/BK 749 Security Indicator Control 10 YE/BK 749 Security Indicator Control
11 - - Not Used 11 - - Not Used
12 YE/BK 744 Blower Motor Supply Voltage 12 YE 744 Blower Motor Supply Voltage
13 PK/BK 141 Ignition 3 Voltage 13 OG 141 Ignition 3 Voltage
14 D-GN 95 Windshield Wiper Switch Signal 14 D-GN 95 Windshield Wiper Switch Signal
15 BN 52 Blower Motor High Control 15 BN 52 Blower Motor High Control
C218 IP Harness to Body Harness

GM1480210Courtesy of GENERAL MOTORS CORP.
GM1480208Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651074
  • 18-Way F 090-II Connector (WH)
 Connector Part Information
  • KET MG 641077
  • 18-Way M 090-II Connector (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1-2 - - Not Used 1-2 - - Not Used
3 PK 239 Ignition 1 Voltage 3 PK 239 Ignition 1 Voltage
4 GY/BK 179 Mirror Fold Control 4 GY/BK 179 Mirror Fold Control
5 L-BU 115 Right Rear Speaker Output (-) 5 L-BU 115 Right Rear Speaker Output (-)
6 D-BU 46 Right Rear Speaker Output (+) 6 D-BU 46 Right Rear Speaker Output (+)
7 RD/WH 881 Passenger Mirror Motor Right Control 7 RD/WH 881 Passenger Mirror Motor Right Control
8-10 - - Not Used 8-10 - - Not Used
11 WH 121 Engine Speed Signal (Except North America) 11 WH 121 Engine Speed Signal (Except North America)
12 D-GN 189 Headlamp Leveling Motor Supply Voltage (Except North America) 12 D-GN 189 Headlamp Leveling Motor Supply Voltage (Except North America)
13 D-GN/WH 817 Vehicle Speed Signal (VSS) 13 D-GN/WH 817 Vehicle Speed Signal (VSS)
14 L-GN 200 Right Front Speaker Output (+) 14 L-GN 200 Right Front Speaker Output (+)
15 D-GN/WH 117 Right Front Speaker Output (-) 15 D-GN/WH 117 Right Front Speaker Output (-)
16 D-BU/BK 2505 Heating Seat - Right Supply Voltage 16 D-BU/BK 2505 Heating Seat - Right Supply Voltage
17 PU/WH 889 Passenger Mirror or Motor Down Control 17 PU/WH 889 Passenger Mirror or Motor Down Control
18 - - Not Used 18 - - Not Used
C219 Engine Harness to IP Harness (2.0L ITMS-6F)

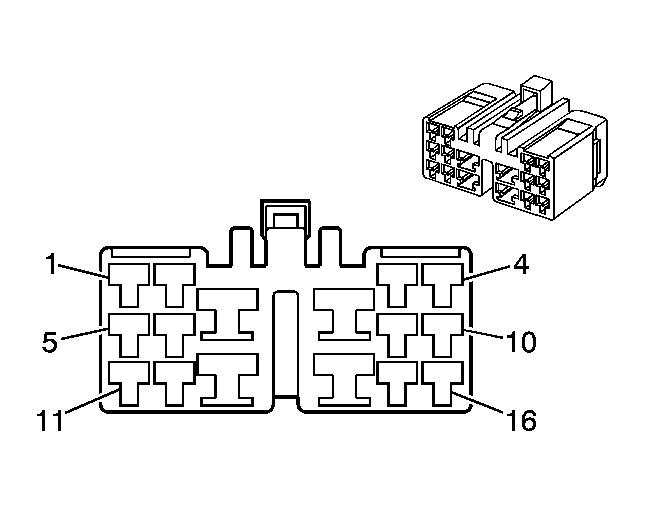

GM1468440Courtesy of GENERAL MOTORS CORP.

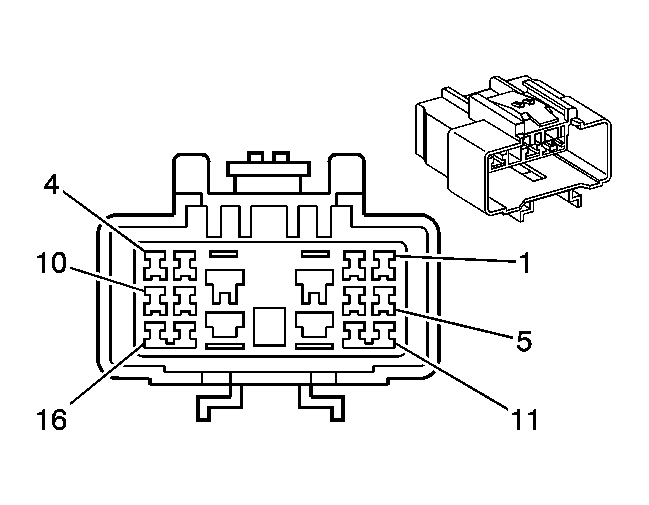

GM1468398Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651006
  • 16-Way F Hybrid Connector (WH)
 Connector Part Information
  • KET MG 641007
  • 16-Way M Hybrid Connector (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 D-GN/WH 817 Vehicle Speed Signal 1 D-GN/WH 817 Vehicle Speed Signal
D-GN/WH 817 Vehicle Speed Signal
2 YE 1410 Trailer ABS Failure Indicator 2 YE 1410 (ECE85)
PU 130 (EURO MISSING)
3 BN/WH 31 Oil Pressure Indicator Control 3 BN/WH 31 Oil Pressure Indicator Control
BN/WH 31 Oil Pressure Indicator Control (w/DRL)
4 D-GN/WH 762 AC Request Signal 4 D-GN/WH 762 AC Request Signal
5 D-GN 135 Engine Coolant Temperature (ECT) Sensor Gauge Signal 5 D-GN 135 Engine Coolant Temperature (ECT) Sensor Gauge Signal
6 BN/WH 419 Malfunction Indicator Lamp (MIL) Control 6 BN/WH 419 Malfunction Indicator Lamp (MIL) Control
7 OG/BK 434 Automatic Transmission Shift Lock Control 7 OG/BK 434 Automatic Transmission Shift Lock Control
8 PU 6 Starter Solenoid Crank Voltage 8 PU 6 Auto Starter Solenoid Crank Voltage
PU 3 Starter Solenoid Crank Voltage (w/Manual Transmission)
9 WH/BK 448 Powertrain Diagnostic Enable 9 WH/BK 448 Powertrain Diagnostic Enable
10 PK 839 Ignition 1 Voltage 10 PK 839 Ignition 1 Voltage
11 WH 121 Engine Speed Signal 11 WH 121 Engine Speed Signal
12 L-GN 3003 Throttle Position (TP) Sensor Signal 12 L-GN 3003 Throttle Position (TP) Sensor Signal
D-GN/BK 2905 Throttle Position (TP) Sensor Signal
13 GY 3015 Engine Torque Requested Signal 13 GY/BK 3015 Engine Torque Requested Signal
WH/BK 1922 CAN Serial Data Low
14 OG 440 Battery Positive Voltage 14 OG 440 Battery Positive Voltage
15 YE/BK 800 UART Serial Data (Primary) 15 YE/BK 800 UART Serial Data (Primary)
16 BN 25 Charge Indicator Control/Signal 16 BN 25 Charge Indicator Control/Signal
C219 Engine Harness to IP Harness (2.0L MR-140)

GM1468440Courtesy of GENERAL MOTORS CORP.
GM1468398Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651006
  • 16-Way F Hybrid Connector (WH)
 Connector Part Information
  • KET MG 641007
  • 16-Way M Hybrid Connector (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 D-GN/WH 817 Vehicle Speed Signal 1 D-GN/WH 817 Vehicle Speed Signal
D-GN/WH 817 Vehicle Speed Signal
2 YE 130 Fuel Gage Signal 2 PU 130 Fuel Gage Signal
3 BN/WH 31 Oil Pressure Indicator Signal 3 BN/BK 31 Oil Pressure Indicator Signal
4 D-GN/WH 762 AC Request Signal 4 D-GN/WH 762 AC Request Signal
5 D-GN 135 Engine Coolant Temperature Gauge Signal 5 D-GN 135 Engine Coolant Temperature Gauge Signal
6 BN/WH 419 Malfunction Indicator Lamp (MIL) Control 6 BN/WH 419 Malfunction Indicator Lamp (MIL) Control
7 PU/WH 1921 CAN Serial Data High 7 YE/BK 1921 CAN Serial Data High
8 PU 5 Crank Voltage - Manual Transmission 8 PU 5 Crank Voltage - Manual Transmission
PU 6 Starter Solenoid Crank Voltage - Automatic Transmission PU 6 Starter Solenoid Crank Voltage - Automatic Transmission
9 WH/BK 448 Powertrain Diagnostic Enable 9 WH/BK 448 Powertrain Diagnostic Enable
10 PK 839 Ignition 1 Voltage (w/Manual Transmission) 10 PK 839 Ignition 1 Voltage (w/Manual Transmission)
11 WH 121 Engine Speed Signal 11 WH 121 Engine Speed Signal
12 D-GN/BK 2905 Serial Data 12 D-GN/BK 2905 Serial Data
13 WH/BK 1922 CAN Serial Data Low 13 WH/BK 1922 CAN Serial Data Low
14 OG 440 Battery Positive Voltage 14 OG 440 Battery Positive Voltage
15 RD 800 Serial Data 15 YE 427 Serial Data
16 BN 25 Charge Indicator Control/Signal 16 BN 25 Charge Indicator Control/Signal
C219 Engine Harness to IP Harness (2.5L)

GM1468440Courtesy of GENERAL MOTORS CORP.
GM1468398Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651006
  • 16-Way F Hybrid Connector (WH)
 Connector Part Information
  • KET MG 641007
  • 16-Way M Hybrid Connector (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 - - Not Used 1 D-GN/WH 817 Vehicle Speed Signal
D-GN/WH 817 Vehicle Speed Signal
2 YE 130 Fuel Gage Signal 2 PU 130 Fuel Gage Signal
3 BN/WH 31 Oil Pressure Indicator Control 3 BN/WH 31 Oil Pressure Indicator Control
4 D-GN/WH 752 Steering Wheel Module Low Signal 4 D-GN/WH 752 Steering Wheel Module Low Signal
5 D-GN 135 Engine Coolant Temperature (ECT) Sensor Gage Signal 5 D-GN 135 Engine Coolant Temperature (ECT) Sensor Gage Signal
6 PU/WH 1885 Service Vehicle Soon Indicator Control 6 D-BU/WH 419 Service Vehicle Soon Indicator Control
7 YE/BK 1921 CAN Serial Data High 7 YE/BK 1921 CAN Serial Data High
8 PU 6 Starter Solenoid Crank Voltage 8 PU 6 Starter Solenoid Crank Voltage
9 WH/BK 448 Powertrain Diagnostic Enable 9 WH/BK 448 Powertrain Diagnostic Enable
10 - - Not Used 10 - - Not Used
11 WH 121 Engine Speed Signal 11 WH 121 Engine Speed Signal
WH 121 Engine Speed Signal
12 D-GN/BK 2905 Serial Data 12 D-GN/BK 2905 Serial Data
13 WH/BK 1922 CAN Serial Data Low 13 WH/BK 1922 CAN Serial Data Low
14 OG 440 Battery Positive Voltage 14 OG 440 Battery Positive Voltage
15 RD 427 Idle Speed Control Motor Switch - Signal 15 YE 427 Idle Speed Control Motor Switch - Signal
16 BN 25 Charge Indicator Control/Signal 16 BN 25 Charge Indicator Control/Signal
C223 IP Harness to Lock Housing Harness

GM1467121Courtesy of GENERAL MOTORS CORP.
GM1468441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651056
  • 10-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641059
  • 10-Way M 090-II Series (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 L-GN 1435 Immobilizer Signal 1 L-GN 1435 Immobilizer Signal
2 BN/WH 1434 Immobilizer Signal 2 BN/WH 1434 Immobilizer Signal
3 YE/BK 1436 Immobilizer Signal 3 YE/BK 1436 Immobilizer Signal
4 BK/WH 351 Immobilizer Signal 4 BK/WH 351 Immobilizer Signal
5 D-GN/WH 900 Key Cylinder Lamp Control 5 D-GN/WH 900 Key Cylinder Lamp Control
6 OG 640 Battery Positive Voltage/Inadvertent Power Relay Enable 6 BK 640 Battery Positive Voltage/Inadvertent Power Relay Enable
7 L-GN 80 Key in Ignition Switch Signal 7 L-GN - Key in Ignition Switch Signal
L-GN 80 Key in Ignition Switch Signal
8 OG 640 Battery Positive Voltage/Inadvertent Power Relay Enable 8 BN 640 Battery Positive Voltage/Inadvertent Power Relay Enable
9 YE 43 Accessory Voltage 9 YE 43 Accessory Voltage
10 BN 1075 Ignition Lock Cylinder Control Actuator 10 WH 1075 Ignition Lock Cylinder Control Actuator
C224 Odometer Harness to IP Harness

GM1467129Courtesy of GENERAL MOTORS CORP.
GM1468550Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651110
  • 14-Way F 090-II Series (WH)
 Connector Part Information
  • KET MG 641113
  • 14 Way M 090-II Connector (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BN/WH 309 Illumination Voltage 1 BN/WH 309 Illumination Voltage
BN/WH 309 Illumination Voltage
2 OG 640 Battery Positive Voltage 2 OG 640 Battery Positive Voltage
3 PU/WH 2011 Odometer Reset Signal 3 PU/WH 2011 Odometer Reset Signal
4 L-BU 14 Left Turn Signal Lamps Signal Voltage 4 L-BU 14 Left Turn Signal Lamps Signal Voltage
5 PU 1697 Hazard Switch Signal 5 PU 1697 Hazard Switch Signal
6 YE - Not Used 6 - - Not Used
7 D-GN 44 Instrument Panel Lamps Dimmer Control Switch Signal 7 D-GN 44 Instrument Panel Lamps Dimmer Control Switch Signal
8 YE 43 Accessory Voltage 8 YE 43 Accessory Voltage
9 D-BU/WH 2010 Odometer Mode Signal 9 D-BU/WH 2010 Odometer Mode Signal
10 BK 250 Ground 10 BK 2250 Ground
11 BK 1250 Ground 11 BK 1250 Ground
12 D-BU 15 Right Hand Turn Signal Lamp Supply Voltage 12 D-BU 15 Right Hand Turn Signal Lamp Supply Voltage
13 PK/BK 1303 Rear Compartment Lid Ajar Switch Signal 13 PK/BK 1303 Rear Compartment Lid Ajar Switch Signal
14 BN 157 Door Ajar Signal 14 BN 157 Door Ajar Signal
C351 Body Harness to Left Front Door Harness

GM1479770Courtesy of GENERAL MOTORS CORP.
GM1467071Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 611810-4
  • 18-Way F Device Connector (GY)
 Connector Part Information
  • KET MG 621807
  • 36-Way M Door 36P Hsg (090-II) (GY)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 OG/WH 1164 Door Window Switch Drivers Express Down Signal 1 OG/WH 1164 Door Window Switch Drivers Express Down Signal
2 OG/BK 164 Power Window Switch Driver Up Signal 2 OG/BK 164 Power Window Switch Driver Up Signal
3 - - Not Used 3 - - Not Used
4 L-BU 195 Door Lock Control 4 L-BU 195 Door Lock Control
5 - - Not Used 5 - - Not Used
6 BN 167 Power Window Master Switch Passenger Front Down Signal 6 BN 167 Power Window Master Switch Passenger Front Down Signal
7 L-BU/WH 194 Door Unlock Control 7 L-BU/WH 194 Door Unlock Control
8 D-GN 168 Power Window Master Switch Left Rear Up Signal 8 D-GN 168 Power Window Master Switch Left Rear Up Signal
9 L-GN 170 Power Window Master Switch Right Rear Up Signal 9 L-GN 170 Power Window Master Switch Right Rear Up Signal
10 GY 118 Left Front Speaker Output (-) 10 GY 118 Left Front Speaker Output (-)
11 D-BU/WH 1165 Power Window Switch Drivers Express Up Signal 11 D-BU/WH 1165 Power Window Switch Drivers Express Up Signal
12 D-BU 165 Power Window Switch Driver Down Signal 12 D-BU 165 Power Window Switch Driver Down Signal
13 - - Not Used 13 - - Not Used
14 PU 169 Power Window Master Switch Left Rear Down Signal 14 PU 169 Power Window Master Switch Left Rear Down Signal
15 BK/D-BU 171 Power Window Master Switch Right Rear Down Signal 15 BK/D-BU 171 Power Window Master Switch Right Rear Down Signal
16 BN/WH 201 Left Front Speaker Output (+) 16 BN/WH 201 Left Front Speaker Output (+)
17 D-BU/WH 65 Power Window Switch Driver Express Down Signal 17 D-BU/WH 65 Power Window Switch Driver Express Down Signal
18 L-BU 166 Power Window Switch Driver Down Signal 18 L-BU 166 Power Window Switch Driver Down Signal
C352 Body Harness to Left Front Door Harness

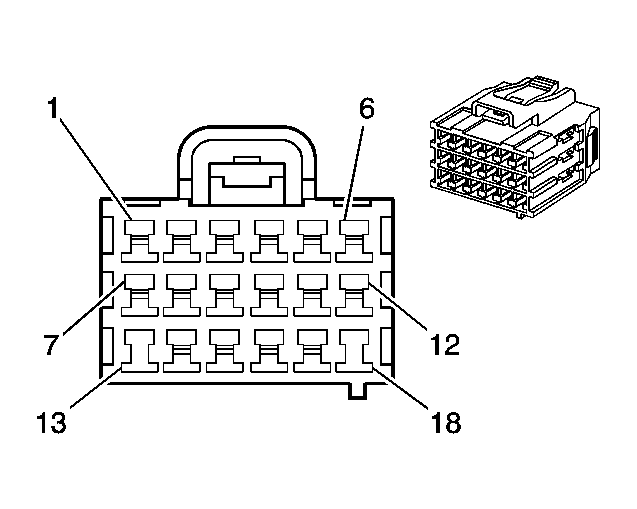

GM1500021Courtesy of GENERAL MOTORS CORP.
GM1467071Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 611809
  • 18-Way F (WH)
 Connector Part Information
  • KET MG 621807
  • 36-Way M Door 36P Hsg (090-II) (GY)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BK 450 Ground 1 BK 50 Ground
2 BN 294 Door Lock Actuator Unlock Control 2 BN 294 Door Lock Actuator Unlock Control
3 L-BU 191 Folding Mirror Motor Retract Control 3 L-BU 191 Folding Mirror Motor Retract Control
4 YE 190 Folding Mirror Motor Extend Control 4 YE 190 Folding Mirror Motor Extend Control
5 GY 295 Door Lock Actuator Lock Control 5 GY 295 Door Lock Actuator Lock Control
6 PK/BK 581 Power Window Master Switch Lockout Signal 6 PK 581 Power Window Master Switch Lockout Signal
7 WH 156 Courtesy Lamp Control 7 WH 156 Courtesy Lamp Control
WH 156 Courtesy Lamp Control
8 BN 157 Door Ajar Signal 8 BN/D-BU 157 Door Ajar Signal
9 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage 9 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
10 - - Not Used 10 - - Not Used
11 L-BU 263 Rear Compartment Lid Ajar Switch 11 L-BU 263 Rear Compartment Lid Ajar Switch
12 OG/BK 640 Battery Positive Voltage/Inadvertent Power Relay Enable 12 OG 640 Battery Positive Voltage/Inadvertent Power Relay Enable
13 BN 126 Left Front Door Open Switch Signal 13 BN 126 Left Front Door Open Switch Signal
14 BN 253 Trunk Release Relay Control 14 BN 253 Trunk Release Relay Control
BN 253 Trunk Release Relay Control
15 GY 90 Mirror Mode Left Control 15 GY 90 Mirror Mode Left Control
GY 90 Mirror Mode Left Control
16 L-GN 89 Mirror Mode Down Control 16 L-GN 89 Mirror Mode Down Control
17 WH 81 Mirror Mode Right Control 17 WH 81 Mirror Mode Right Control
18 OG 580 Window Switch Supply Voltage 18 OG 580 Window Switch Supply Voltage
C361 Body Harness to Right Front Door Harness

GM1479770Courtesy of GENERAL MOTORS CORP.
GM1467071Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 611810-4
  • 18-Way F Device Connector (GY)
 Connector Part Information
  • KET MG 621807
  • 36-Way M Door 36P Hsg (090-II) (GY)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 PK/BK 581 Power Window Master Switch Lockout Signal 1 PK 581 Power Window Master Switch Lockout Signal
2 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage 2 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
3-4 - - Not Used 3-4 - - Not Used
5 L-GN 200 Right Front Speaker Output (+) 5 L-GN 200 Right Front Speaker Output (+)
6 D-GN/WH 117 Right Front Speaker Output (-) 6 D-GN/WH 117 Right Front Speaker Output (-)
7 L-BU 166 Power Window Master Switch Right Front Up Signal 7 L-BU 166 Power Window Master Switch Right Front Up Signal
8 - - Not Used 8 - - Not Used
9 BN 167 Power Window Master Switch Passenger Front Down Signal 9 BN 167 Power Window Master Switch Passenger Front Down Signal
10 L-BU 263 Rear Compartment Lid Ajar Switch Signal 10 L-BU 263 Rear Compartment Lid Ajar Switch Signal
11 - - Not Used 11 - - Not Used
12 WH 156 Courtesy Lamp Control 12 WH 156 Courtesy Lamp Control
WH 156 Courtesy Lamp Control (w/Front Door Courtesy Lamps)
13 OG/BK 640 Battery Positive Voltage Inadvertent Power Relay Enable 13 OG 640 Battery Positive Voltage Inadvertent Power Relay Enable
14-15 - - Not Used 14-15 - - Not Used
16 BK 750 Ground 16 BK 750 Ground
17 - - Not Used 17 - - Not Used
18 BN 157 Down Ajar Signal 18 BN 157 Down Ajar Signal
C362 Body Harness to Right Front Door Harness

GM1500021Courtesy of GENERAL MOTORS CORP.
GM1467071Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 611809
  • 18-Way F Connector (WH)
 Connector Part Information
  • KET MG 621807
  • 36-Way M Door 36P Hsg (090-II) (GY)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 RD/WH 881 Passenger Mirror Motor Right Control 1 RD/WH 881 Passenger Mirror Motor Right Control
2 GY/BK 179 Mirror Fold Control (w/Folding Mirrors) 2 GY/BK 179 Mirror Fold Control
3-6 - - Not Used 3-6 - - Not Used
7 PU/WH 889 Passenger Mirror Motor Down Control 7 PU/WH 889 Passenger Mirror Motor Down Control
8 - - Not Used 8 - - Not Used
9 L-BU 191 Driver Folding Mirror Motor Retract Control 9 L-BU 191 Driver
Folding Mirror Motor Retract Control
10 GY 295 Door Lock Actuator Lock Control 10 GY 295 Door Lock Actuator Lock Control
11-12 - - Not Used 11-12 - - Not Used
13 GY 90 Passenger Mirror Mode Left Control 13 GY 90 Passenger Mirror Mode Left Control
14 L-BU 195 Door Lock Control 14 L-BU 195 Door Lock Control
15 YE 190 Folding Mirror Motor Extend Control (w/Folding Mirror) 15 YE 190 Folding Mirror Motor Extend Control
16 BN 294 Door Lock Actuator Unlock Control 16 BN 294 Door Lock Actuator Unlock Control
17 L-BU/WH 194 Door Lock Control 17 L-BU/WH 194 Door Lock Control
18 - - Not Used 18 - - Not Used
C371 Body Harness to Left Rear Door Harness

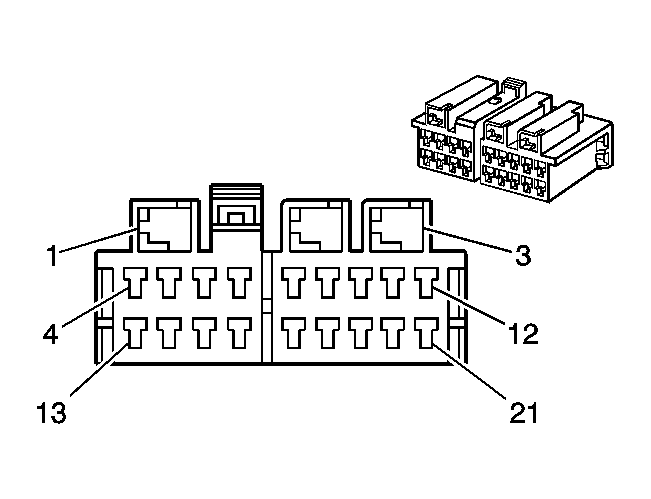

GM1500024Courtesy of GENERAL MOTORS CORP.

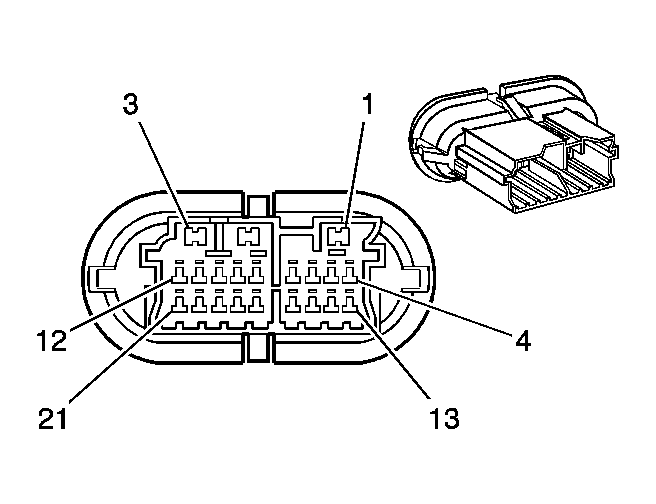

GM1500025Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610688
  • 21-Way F Connector (WH)
 Connector Part Information
  • KET MG 620689
  • 21-Way M Connector (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 PK/BK 581 Power Window Master Switch Lockout Signal 1 PK 581 Power Window Master Switch Lockout Signal
2 D-GN 168 Power Window Master Switch Left Rear Up Signal 2 D-GN 168 Power Window Master Switch Left Rear Up Signal
3 PU 169 Power Window Master Switch Left Rear Down Signal 3 PU 169 Power Window Master Switch Left Rear Down Signal
4 WH 156 Courtesy Lamp Control 4 WH 156 Courtesy Lamp Control
5 - - Not Used 5 - - Not Used
6 BK 450 Ground 6 BK 450 Ground
7 - - Not Used 7 - - Not Used
8 BN 119 Left Rear Speaker Output (+) 8 BN 119 Left Rear Speaker Output (+)
9 YE 116 Left Rear Speaker Output (-) 9 YE 116 Left Rear Speaker Output (-)
10-11 - - Not Used 10-11 - - Not Used
12 BN 157 Courtesy Lamp Control 12 BN 157 Courtesy Lamp Control
13-14 - - Not Used 13-14 - - Not Used
15 GY 295 Door Lock Actuator Lock Control 15 GY 295 Door Lock Actuator Lock Control
16 BN 294 Door Lock Actuator Unlock Control 16 BN 294 Door Lock Actuator Unlock Control
17-21 - - Not Used 17-21 - - Not Used
C381 Body Harness to Right Rear Door Harness

GM1500024Courtesy of GENERAL MOTORS CORP.
GM1500025Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610688
  • 21-Way F Connector (WH)
 Connector Part Information
  • KET MG 620689
  • 21-Way M Connector (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 PK/BK 581 Power Window Master Switch Lockout Signal 1 PK 581 Power Window Master Switch Lockout Signal
2 D-GN 170 Power Window Master Switch Right Rear Up Signal 2 D-GN 168 Power Window Master Switch Right Rear Up Signal
3 BK/D-BU 171 Power Window Master Switch Right Rear Down Signal 3 PU 169 Power Window Master Switch Right Rear Down Signal
4 WH 156 Courtesy Lamp Control 4 WH 156 Courtesy Lamp Control
5 - - Not Used 5 - - Not Used
6 BK 750 Ground 6 BK 450 Ground
7 - - Not Used 7 - - Not Used
8 BN 115 Right Rear Speaker Output (-) 8 BN 119 Right Rear Speaker Output (+)
9 YE 46 Right Rear Speaker Output (+) 9 YE 116 Right Rear Speaker Output (-)
10-11 - - Not Used 10-11 - - Not Used
12 BN 157 Courtesy Lamp Control 12 BN 157 Courtesy Lamp Control
13-14 - - Not Used 13-14 - - Not Used
15 GY 295 Door Lock Actuator Lock Control 15 GY 295 Door Lock Actuator Lock Control
16 BN 294 Door Lock Actuator Unlock Control 16 BN 294 Door Lock Actuator Unlock Control
17-21 - - Not Used 17-21 - - Not Used
C382 Body Harness to Shift Indicator Lamp Jumper

GM1467020Courtesy of GENERAL MOTORS CORP.
GM1468403Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610070
  • 2-Way F 090 (2.3 mm) Series (WH)
 Connector Part Information
  • KET MG 620074
  • 2-Way M 090 Connector (2.3 mm) (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BN/WH 309 Right Park Lamp Supply Voltage 1 GY 309 Right Park Lamp Supply Voltage
2 D-GN 44 Instrument Panel Lamps Dimmer Switch Signal 2 GY 44 Instrument Panel Lamps Dimmer Switch Signal
C384 Body Harness to Park Brake Jumper Harness

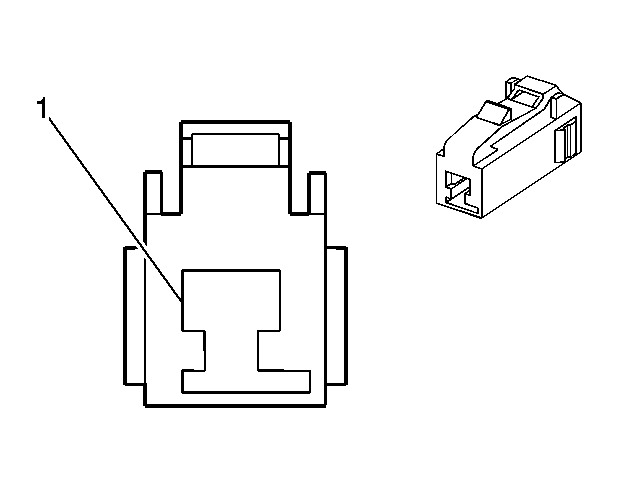

GM1467131Courtesy of GENERAL MOTORS CORP.

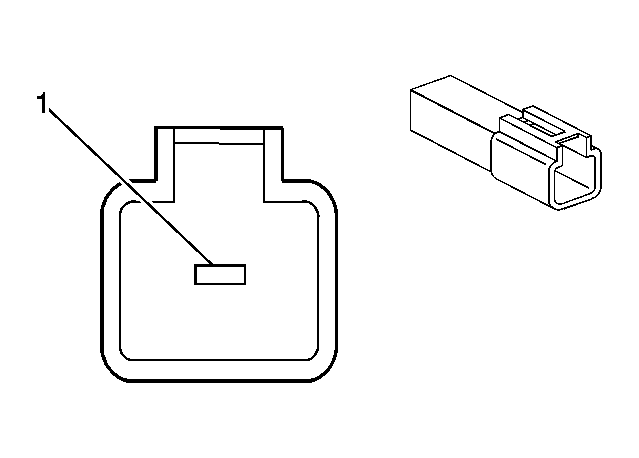

GM1467092Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651194
  • 1-Way F 090-II Series (BK)
 Connector Part Information
  • KET MG 641197
  • 1-Way M 090-II Series (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BN/WH 33 Brake Warning Indicator Control 1 BN/WH 33 Brake Warning Indicator Control
C385 Body Harness to Auxiliary Power Outlet In-Line

GM1467007Courtesy of GENERAL MOTORS CORP.
GM1468402Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610043
  • 2-Way F 250 Series (WH)
 Connector Part Information
  • KET MG 620042
  • 2-Way M 250 Series (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BK 250 Ground 1 BK 250 Ground
2 RD 343 Accessory Voltage 2 YE/BK 343 Accessory Voltage
C391 Left Rear Wheel Speed Sensor Jumper Harness to Body Harness

GM1468380Courtesy of GENERAL MOTORS CORP.
GM1499995Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-02027
  • 2-Way F NMWP 04F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-02020
  • 2-Way M Connector (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BK 885 Left Rear Wheel Speed Sensor Signal 1 D-BU 885 Left Rear Wheel Speed Sensor Signal
2 WH 884 Left Rear Wheel Speed Sensor Low Reference 2 BN 884 Left Rear Wheel Speed Sensor Low Reference
C392 Right Rear Wheel Speed Sensor Jumper Harness to Body Harness

GM1468380Courtesy of GENERAL MOTORS CORP.
GM1499995Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-02027
  • 2-Way F NMWP 04F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-02020
  • 2-Way M Connector (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BK 883 Right Rear Wheel Speed Sensor Signal 1 D-BU/BK 883 Right Rear Wheel Speed Sensor Signal
2 WH 885 Right Rear Wheel Speed Sensor Low Reference 2 BN/BK 882 Right Rear Wheel Speed Sensor Low Reference
C401 Body Harness to Trunk Room Harness

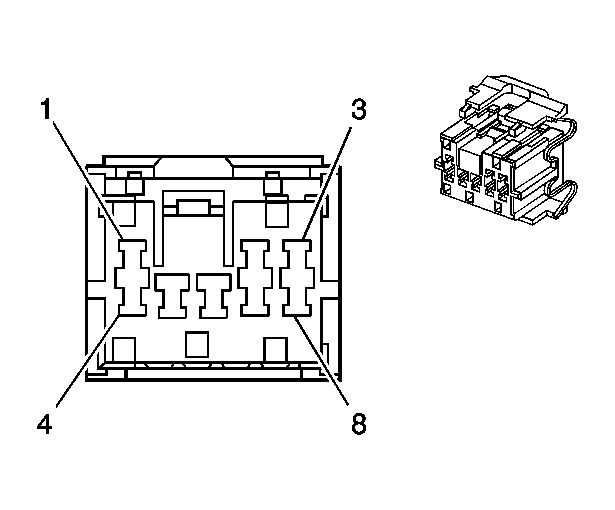

GM1500026Courtesy of GENERAL MOTORS CORP.

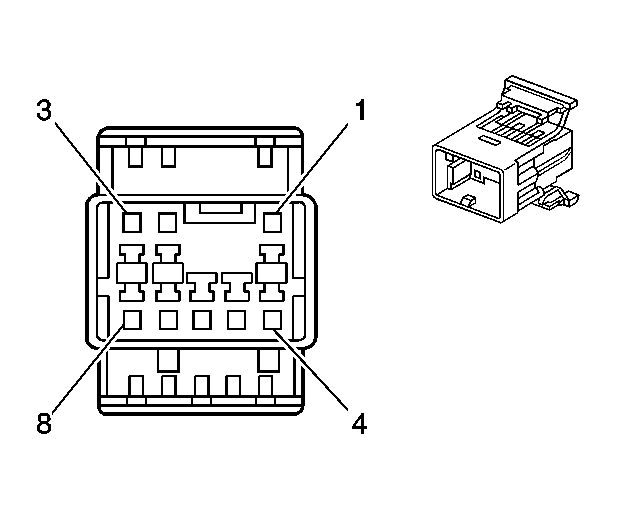

GM1500893Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368176-1
  • 8-Way F 090 MLC 8P PLUG HSG (WH)
 Connector Part Information
  • AMP 368175-1
  • 8-Way M 090 MLC 8P CAP HSG (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 L-BU 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal 1 L-BU 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal
L-BU 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal
2 L-GN 24 Backup Lamp Supply Voltage 2 L-GN 24 Backup Lamp Supply Voltage
3 BN/WH 309 Illumination Voltage 3 BN/WH 309 Illumination Voltage
4 RD 122 Rear Fog Lamp Supply Voltage 4 RD 122 Rear Fog Lamp Supply Voltage
5 - - Not Used 5 - - Not Used
6 D-BU 15 Right Turn Signal Lamps Supply Voltage 6 D-BU 15 Right Turn Signal Lamps Supply Voltage
7 L-BU 14 Left Turn Signal Lamps Supply Voltage 7 L-BU 14 Left Turn Signal Lamps Supply Voltage
8 PU 709 Left Park Lamps Supply Voltage 8 PU 709 Left Park Lamps Supply Voltage
PU 709 Left Park Lamps Supply Voltage
C402 Body Harness to Trunk Lid Harness

GM1468516Courtesy of GENERAL MOTORS CORP.
GM1480157Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174923
  • 6-Way F .070 Multi Lock Connector (WH)
 Connector Part Information
  • AMP 174930
  • 6-Way M .070 SRS Multi Lock Connector (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 L-BU 263 Rear Compartment Switch Signal 1 L-BU 263 Rear Compartment Switch Signal
2 - - Not Used 2 L-GN 24 Backup Lamp Supply Voltage
3 BK 550 Ground 3 BK 550 Ground
4 PU 709 License Plate Lamp Signal 4 PU 709 License Plate Lamp Signal
5 BN 253 Trunk Release Relay Control 5 BN 253 Trunk Release Relay Control
6 PK/BK 1303 Rear Compartment Lid Ajar Switch 6 PK/BK 1303 Rear Compartment Lid Ajar Switch
C403 Rear Compartment Lid Harness to License Plate Lamp Jumper (LH)

GM1467074Courtesy of GENERAL MOTORS CORP.
GM1467068Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630679
  • 2-Way M 090 (2.3 mm) Series (WH)
 Connector Part Information
  • KET MG 620490
  • 2-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 PU 709 Left Parklamp Supply Voltage 1 BK 709 Left Parklamp Supply Voltage
2 BK 550 Ground 2 WH 550 Ground
C404 Rear Compartment Lid Harness to License Plate Lamp Jumper (RH)

GM1467074Courtesy of GENERAL MOTORS CORP.
GM1467068Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630679
  • 2-Way M 090 (2.3 mm) Series (WH)
 Connector Part Information
  • KET MG 620490
  • 2-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 PU 709 Left Parklamp Supply Voltage 1 BK 709 Left Parklamp Supply Voltage
2 BK 550 Ground 2 WH 550 Ground
C415 Rear Harness to Left Tail Lamp Jumper

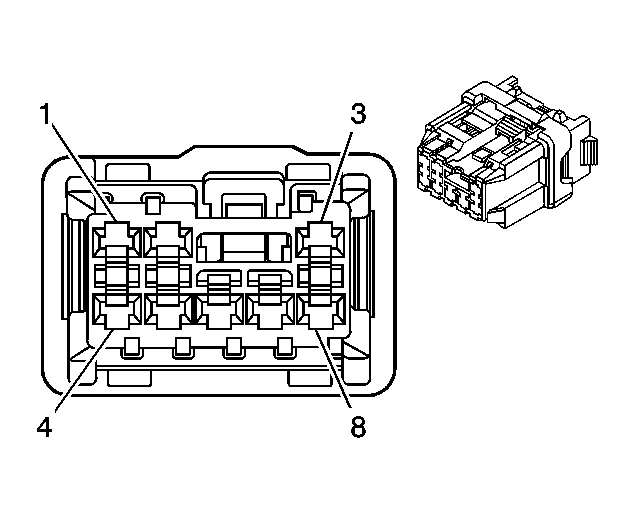

GM1468417Courtesy of GENERAL MOTORS CORP.

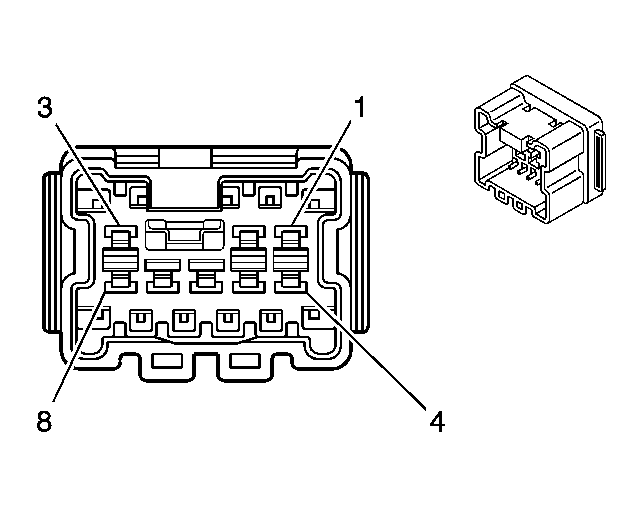

GM1497841Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MOLEX 35284-0810
  • 8-Way F Uniconn Female Ass'y-8P (WH)
 Connector Part Information
  • MOLEX 35282-0810
  • 8-Way M Connector (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BK 950 Ground 1 BK 950 Stop Lamp
BK 950 Stop Lamp
2 L-BU 14 Left Turn Signal Lamps Supply Voltage 2 L-GN 14 Left Turn Signal Lamps Supply Voltage
3 L-GN 24 Backup Lamp Supply Voltage 3 L-GN 24 Backup Lamp Supply Voltage
4 BK 950 Ground 4 BK/YE 950 Ground
5 L-BU/WH 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal 5 L-BU/WH 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal
L-BU/WH 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal
6 - - Not Used 6 - - Not Used
7 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog) 7 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog)
8 PU 709 Left Park Lamp Supply Voltage 8 D-GN 709 Left Park Lamp Supply Voltage
D-GN 709 Left Park Lamp Supply Voltage
C416 Body Harness to Right Tail Lamp Jumper

GM1468417Courtesy of GENERAL MOTORS CORP.
GM1497841Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MOLEX 35284-0810
  • 8-Way F Uniconn Female Ass'y-8P (WH)
 Connector Part Information
  • MOLEX 35282-0810
  • 8-Way M Connector (WH)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BK 950 Ground 1 BK 950 Ground
BK 950 Ground
2 D-BU 15 Right Turn Signal Lamps Supply Voltage 2 L-GN 14 Right Turn Signal Lamps Supply Voltage
3 L-GN 24 Backup Lamp Supply Voltage 3 WH 24 Backup Lamp Supply Voltage
4 BK 950 Ground 4 BK/YE 950 Ground
BK/YE 950 Ground
5 L-BU/WH 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal 5 D-BU 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal
D-BU 20 Stop Lamp Supply Voltage/ Stop Lamp Switch Signal
6 - - Not Used 6 - - Not Used
7 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog) 7 RD 122 Rear Fog Lamp Supply Voltage (w/Rear Fog)
8 BN/WH 309 Right Park Lamp Supply Voltage 8 D-GN 309 Park Lamp
D-GN 309 Park Lamp
C901 Fuel Pump Harness to Body Harness (2.0L)

GM1468381Courtesy of GENERAL MOTORS CORP.
GM1497839Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-04027
  • 4-Way F NMWP 02F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-04020
  • 4-Way M NMWP 02F-B Ass'y (GY
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 GY 120 Fuel Pump Supply Voltage 1 GY 120 Fuel Pump Supply Voltage
2 PU 30 Fuel Level Sensor Signal 2 PU 30 Fuel Level Sensor Signal
3 BK 550 Ground 3 BK 550 Ground
4 BK/WH 550 Ground 4 BK/WH 550 Ground
C901 Fuel Pump Harness to Body Harness (2.5L)

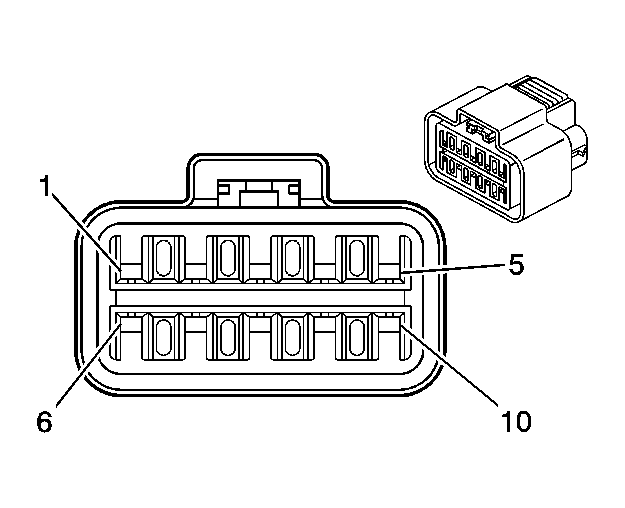

GM1468437Courtesy of GENERAL MOTORS CORP.

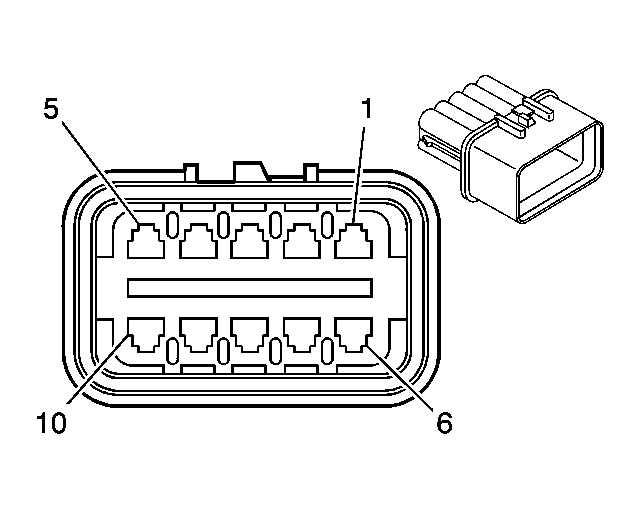

GM1468429Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-10027
  • 10-Way F NMWP10F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-10020
  • 10-Way M NMWP10M-B Ass'y (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 YE 172 Low Fuel Indicator Control 1 YE 172 Low Fuel Indicator Control
2 PU 1986 Canister Purge Solenoid Valve Vacuum Switch Output - Diagnostic 2 PU 1986 Canister Purge Solenoid Valve Vacuum Switch Output - Diagnostic
3 GY 120 Fuel Pump Supply Voltage 3 GY 120 Fuel Pump Supply Voltage
4 D-BU 1936 Fuel Level Sensor Signal 4 D-BU 1936 Fuel Level Sensor Signal
5 GY/BK 605 Low Reference 5 GY/BK 605 Low Reference
6 - - Not Used 6 - - Not Used
7 PK/BK 1846 Ignition Coil Driver Feed 7 PK/BK 1846 Ignition Coil Driver Feed
8 BK 550 Ground 8 BK 550 Ground
9 BK/WH 1750 Sensor Ground 9 BK/WH 750 Sensor Ground
10 D-GN 890 Fuel Pressure Sensor Signal 10 D-GN 890 Fuel Pressure Sensor Signal
C902 Body Harness to Rear Bumper

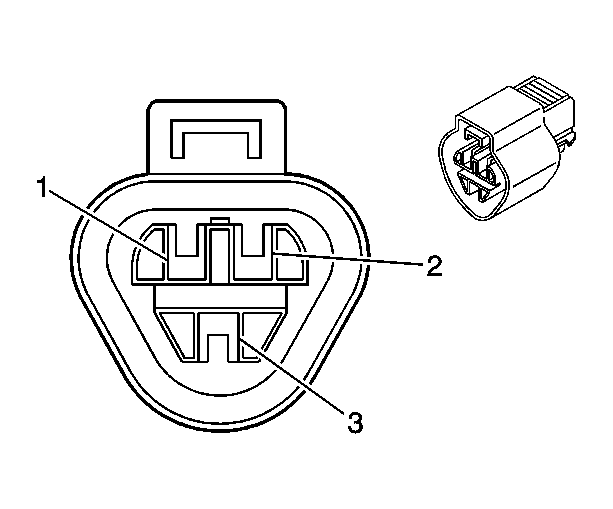

GM1500902Courtesy of GENERAL MOTORS CORP.

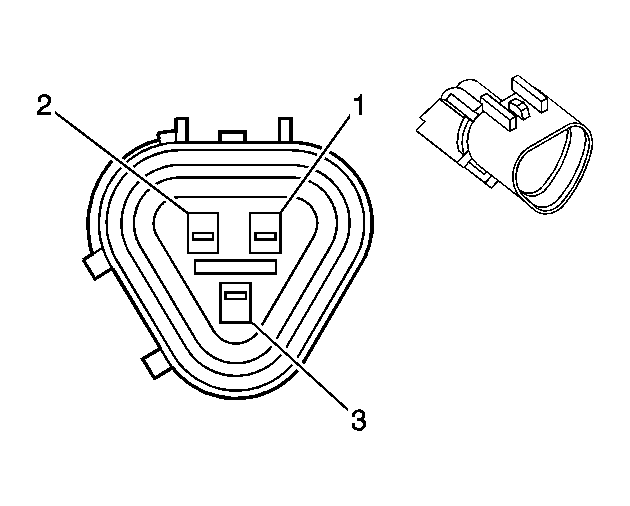

GM1500900Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-03027
  • 3-Way F NMWP3F-B Ass'y (BK)
 Connector Part Information
  • KUM PB 621-03020
  • 3-Way M NMWP10M-B Ass'y (BK)
Pin Wire Color Circuit Number Function Pin Wire Color Circuit Number Function
1 BK 950 Ground 1 BK 950 Ground
2 PU 709 Left Park Lamp Supply Voltage 2 PU 709 Left Park Lamp Supply Voltage
3 BN/WH 309 Right Park Lamp Supply Voltage 3 BN/WH 309 Right Park Lamp Supply Voltage
scientia non olet · About LEMON Manuals
