Removal Procedure

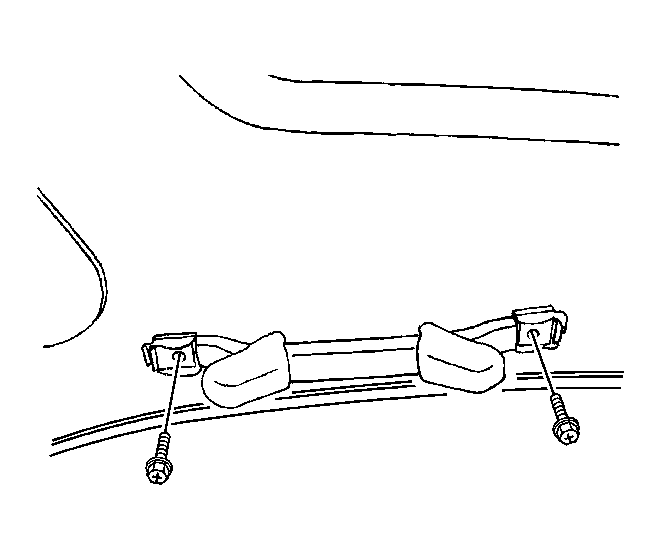

    Fig 1: View Of Assist Handle, Plastic Caps And Screws
    GM1256864Courtesy of GENERAL MOTORS CORP.
  1. Reposition the plastic caps to reveal the assist handle screws.
  2. Remove the screws and the assist handle from the headliner.
