Theft Deterrent System Connector End Views

Hood Ajar Switch

Courtesy of GENERAL MOTORS CORP.

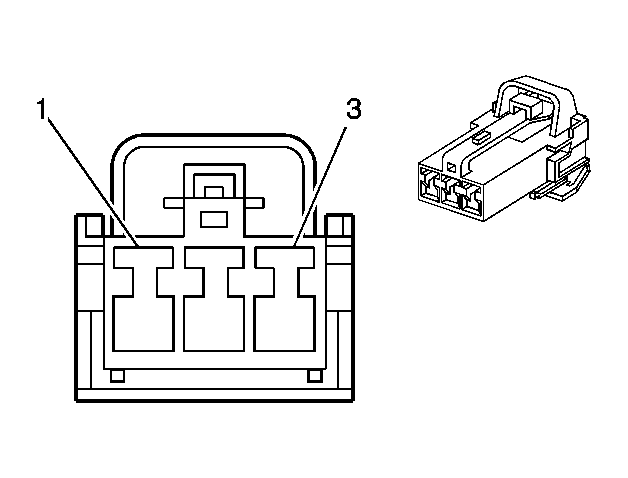

Connector Part Information		KET MG 611530 3-Way F 060 (62C) Connector (WH)
Pin	Wire Color	Circuit No.	Function
1	BK	250	Ground
2	PK/BK	109	Hood Ajar Switch Signal
3	-	-	Not Used

Security Indicator w/o Sunload Sensor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610159 4-Way F 090 Connector (2.3 mm) (WH)
Pin	Wire Color	Circuit No.	Function
1	OG	1140	Battery
2	YE/BK	749	Theft Indicator Control
3-4	-	-	Not Used

Theft Deterrent Alarm

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		PB 625-02027 2-Way F NMWP 04F-B Ass'y (BK)
Pin	Wire Color	Circuit No.	Function
1	BK	250	Ground
2	YE	261	Arm Alarm Signal

Theft Deterrent Control Module

Courtesy of GENERAL MOTORS CORP.

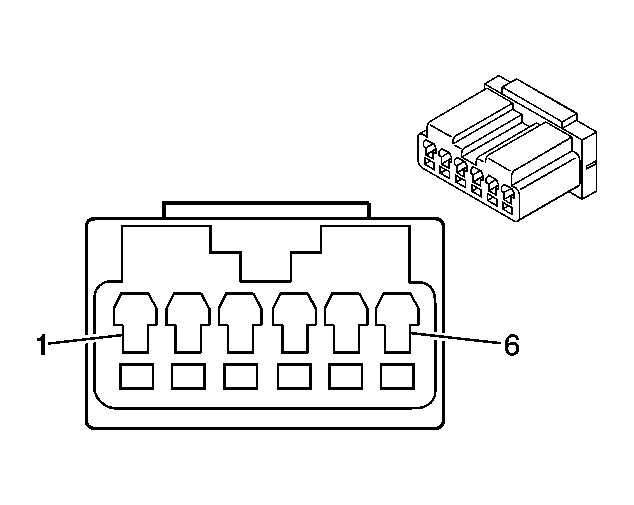

Connector Part Information		6-Way F NMWP 04F-B Ass'y (BK)
Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	YE/BK	1436	Immobilizer Signal
3	BN/WH	1434	Immobilizer Signal
4	L-GN	1435	Immobilizer Signal
5	BK/WH	351	Immobilizer Signal
6	-	-	Not Used
