Entertainment Component Views

Fig 1: Component View - RR Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Antenna
2	Lower Cowl

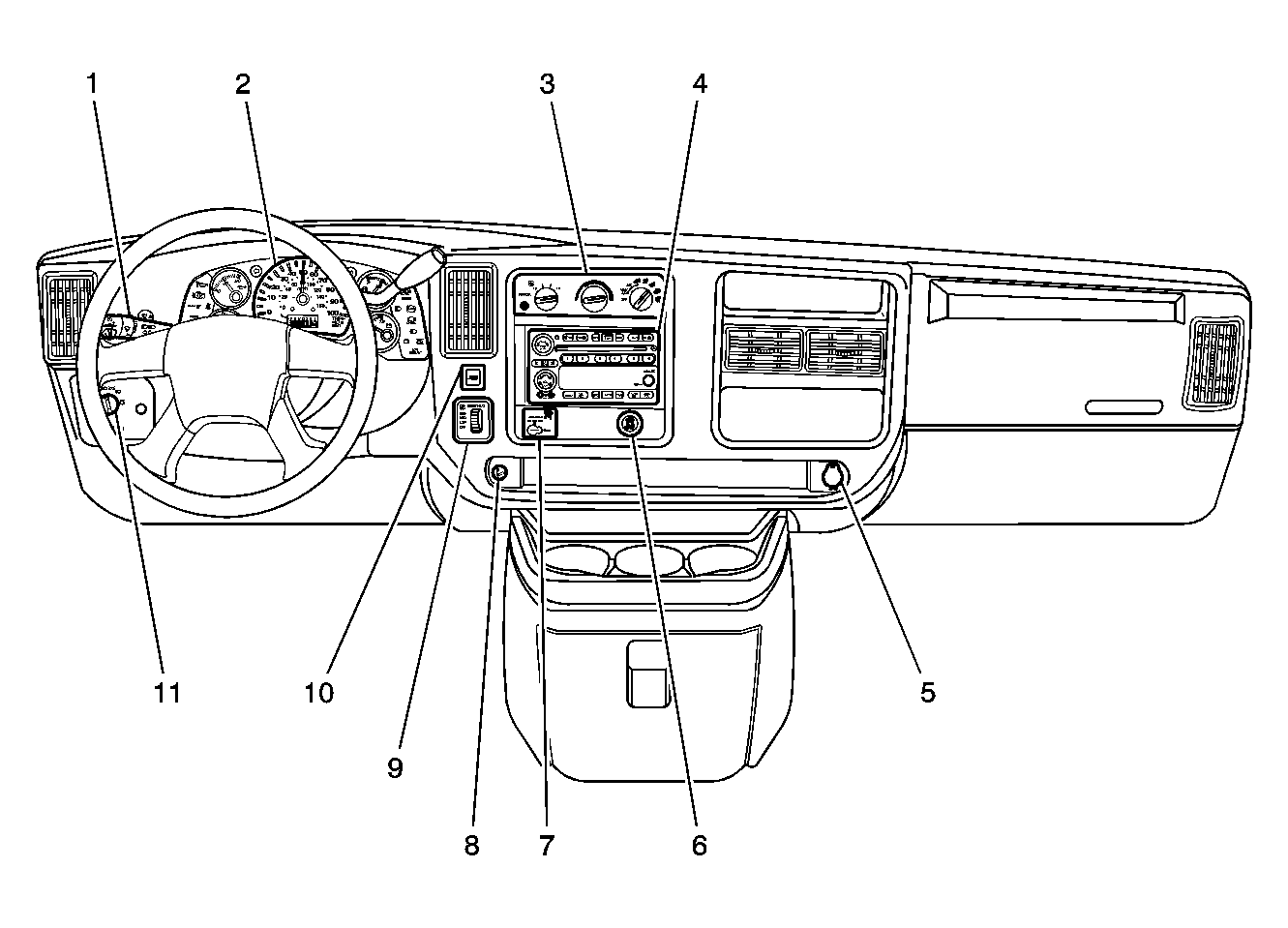

Fig 2: Component View - Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Instrument Panel Cluster (IPC)
3	HVAC Control Assembly
4	Radio
5	Auxiliary Power Outlet 2
6	Traction Control Switch (JL4)
7	Inflatable Restraint I/P Disable Switch (Heavy Duty)
8	Cigar Lighter (DT4)/Auxiliary Power Outlet 1 (w/o DT4)
9	Blower Motor Switch - Auxiliary (C36)
10	Tow/Haul Switch
11	Headlamp and Panel Dimmer Switch

Fig 3: Component View - Driver Door Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Connector - Driver (DE5/DE7)
2	Window Switch Connector - Driver (A31)
3	Outside Rearview Mirror Switch Connector (DE5/DE7)
4	Window Motor Connector - Driver (A31)
5	Door Lock Switch Connector - Driver (AU3)
6	C311
7	Speaker Connector - LF Door
8	S500 (AU3)
9	S502 (DE5/DE7)

Fig 4: Component View - Passenger Door Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor Connector - Front Passenger (A31)
2	Window Switch Connector - Front Passenger (A31)
3	Outside Rearview Mirror Connector - Passenger (DE5/DE7)
4	S600 (AU3)
5	Speaker Connector - RF Door
6	C312
7	Door Lock Switch Connector - Front Passenger (AU3)

Fig 5: Component View - Left Rear Cargo Door Harness Routing (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid Connector - Left (C49)
2	C411
3	Speaker Connector - LR Door (UB1/UC6)

Fig 6: Component View - Right Rear Cargo Door Harness Routing (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid Connector - Right (C49)
2	Door Latch Assembly - Cargo
3	Door Lock Switch Connector - Rear Cargo (AU3)
4	License Lamp Connector
5	S902
6	Speaker Connector - RR Door (UB1/UC6)
7	C412
8	C400

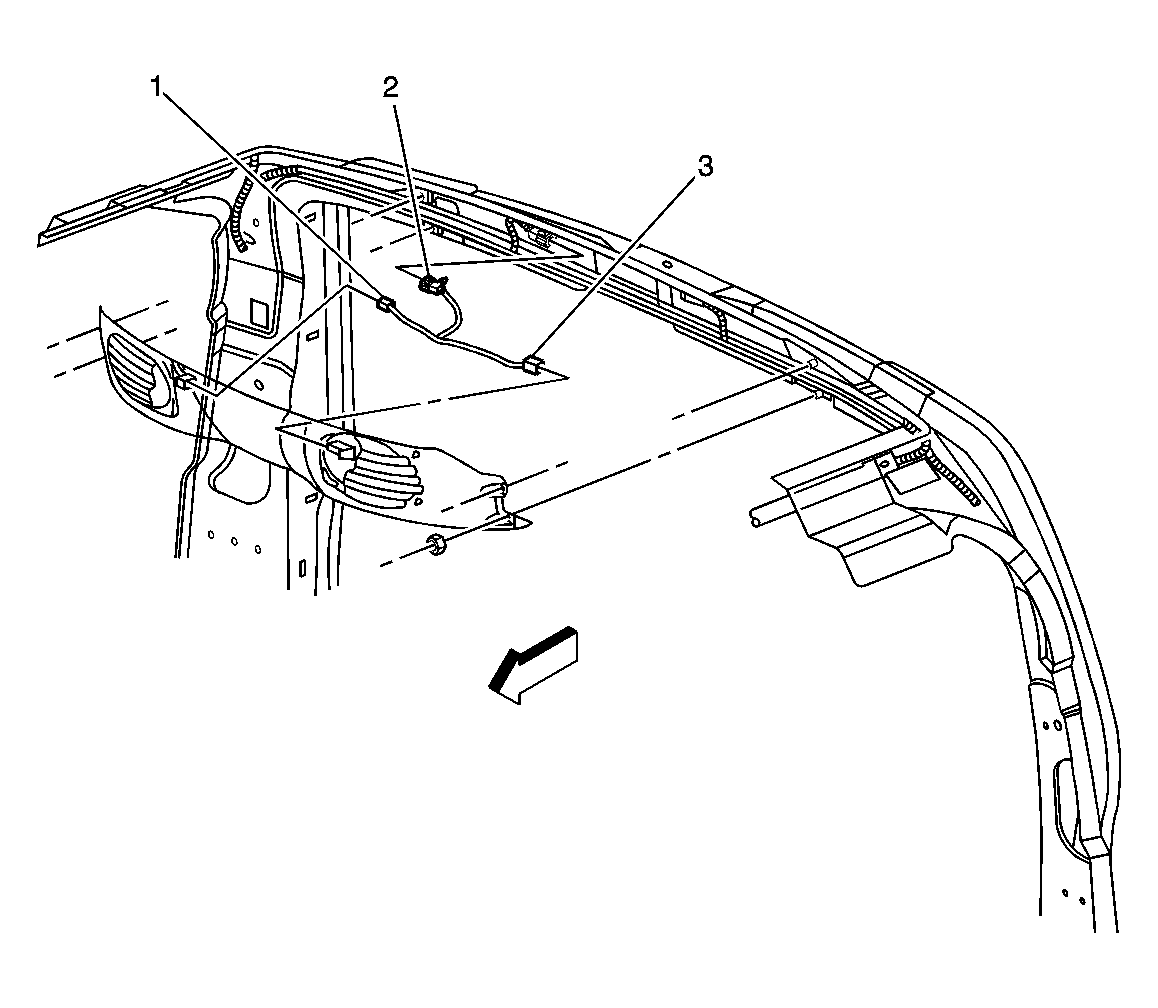

Fig 7: Component View - Upper Rear Speakers Harness Routing (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.
