Installation Procedure
Courtesy of GENERAL MOTORS CORP.

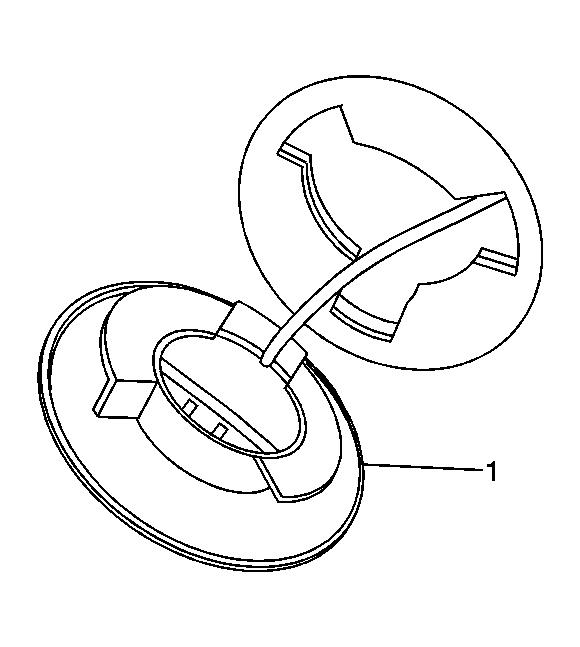

- Feed the microphone (1) wire through the hole in the headliner.
- Align the microphone (1) with the hole in the headliner and install the microphone in the opening.
Courtesy of GENERAL MOTORS CORP.

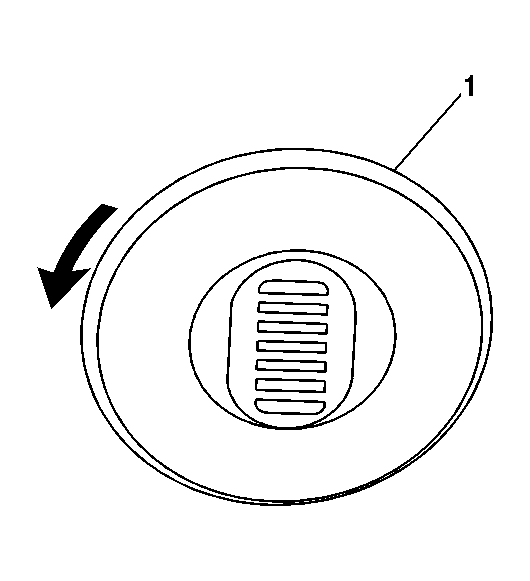

- Rotate the microphone (1) counter clockwise to secure.
- Glue or tape the microphone wiring to the headliner.
Courtesy of GENERAL MOTORS CORP.
- Install the front headliner. Refer to Headliner Replacement - Front
in Interior Trim.

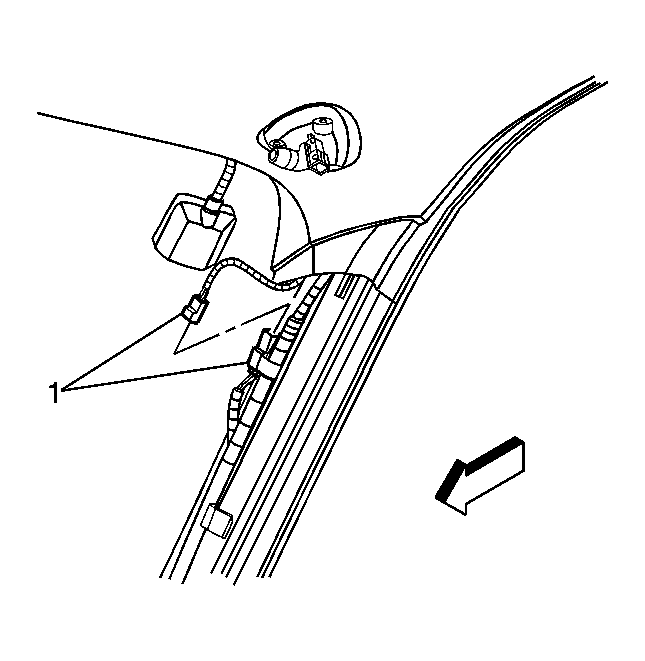

- Connect the microphone electrical connector (1).
- Install the passenger windshield garnish molding. Refer to Windshield Garnish Molding Replacement
in Interior trim.
