Colorado 2D Pickup, 3.5 6, 4WD, Automatic
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Electrical Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 2: Manual Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 3: Front Axle
Courtesy of GENERAL MOTORS CORP.
Fig 4: Automatic Transmission Overview
Courtesy of GENERAL MOTORS CORP.
Fig 5: Automatic Transmission (Left Side)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Transfer Case
Courtesy of GENERAL MOTORS CORP.

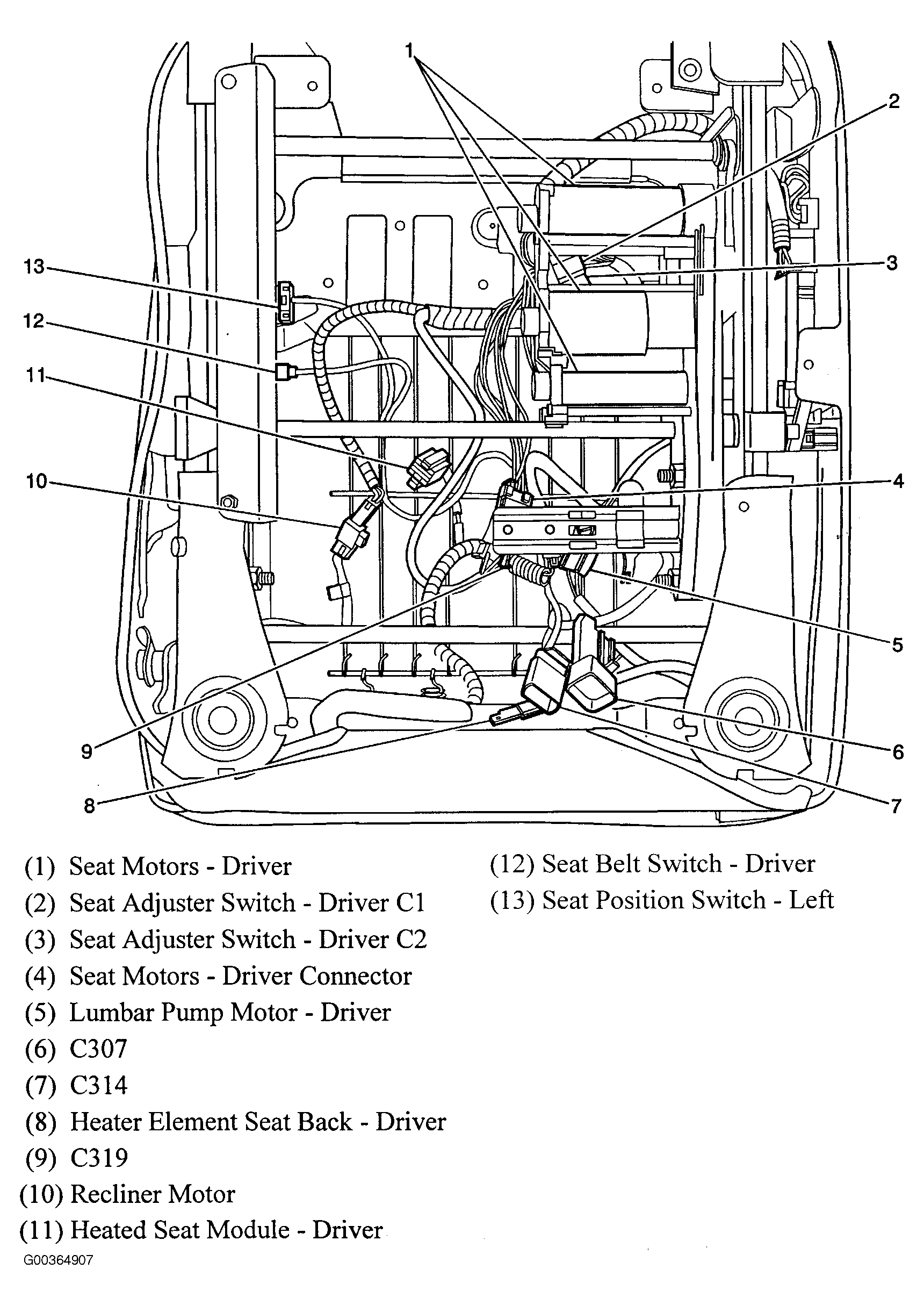

Fig 7: Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 8: SIR System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 9: SIR System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 10: SIR System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 11: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 12: Lower Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 13: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 14: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 15: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 16: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 17: HVAC Module Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 18: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 19: Front Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 20: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 21: Engine Compartment (Top View)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Top View Of Engine (2.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Top View Of Engine (2.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Top View Of Engine (2.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Chassis & Right Side Of Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 26: Right Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Right Front Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Left & Right Side Of Engine Compartment (Extended Cab)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Passenger Compartment (Regular Cab) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Passenger Compartment (Regular Cab) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Passenger Compartment (Crew Cab) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Passenger Compartment (Crew Cab) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Body Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 34: Chassis Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 35: License Plate Lamp Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 36: Left Side Of Engine (3.5L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Left Side Of Engine (3.5L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
