Installation Procedure

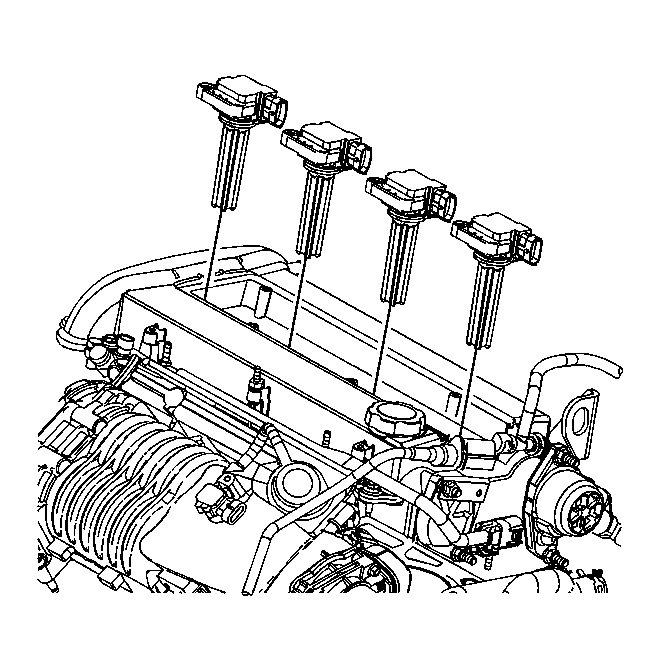

    Fig 1: View OF Ignition Coils
    GM1387190Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure that the ignition coil seals are properly seated to the valve cover.
  1. Install the ignition coil.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the ignition coil retaining bolts.

    Tighten:  Tighten the ignition coil retaining bolts to 10 N.m (89 lb in).

  3. Replace the ignition coil connectors.
