Bypass Valve Actuator Replacement
Bypass Valve Actuator Replacement
| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
. |
|

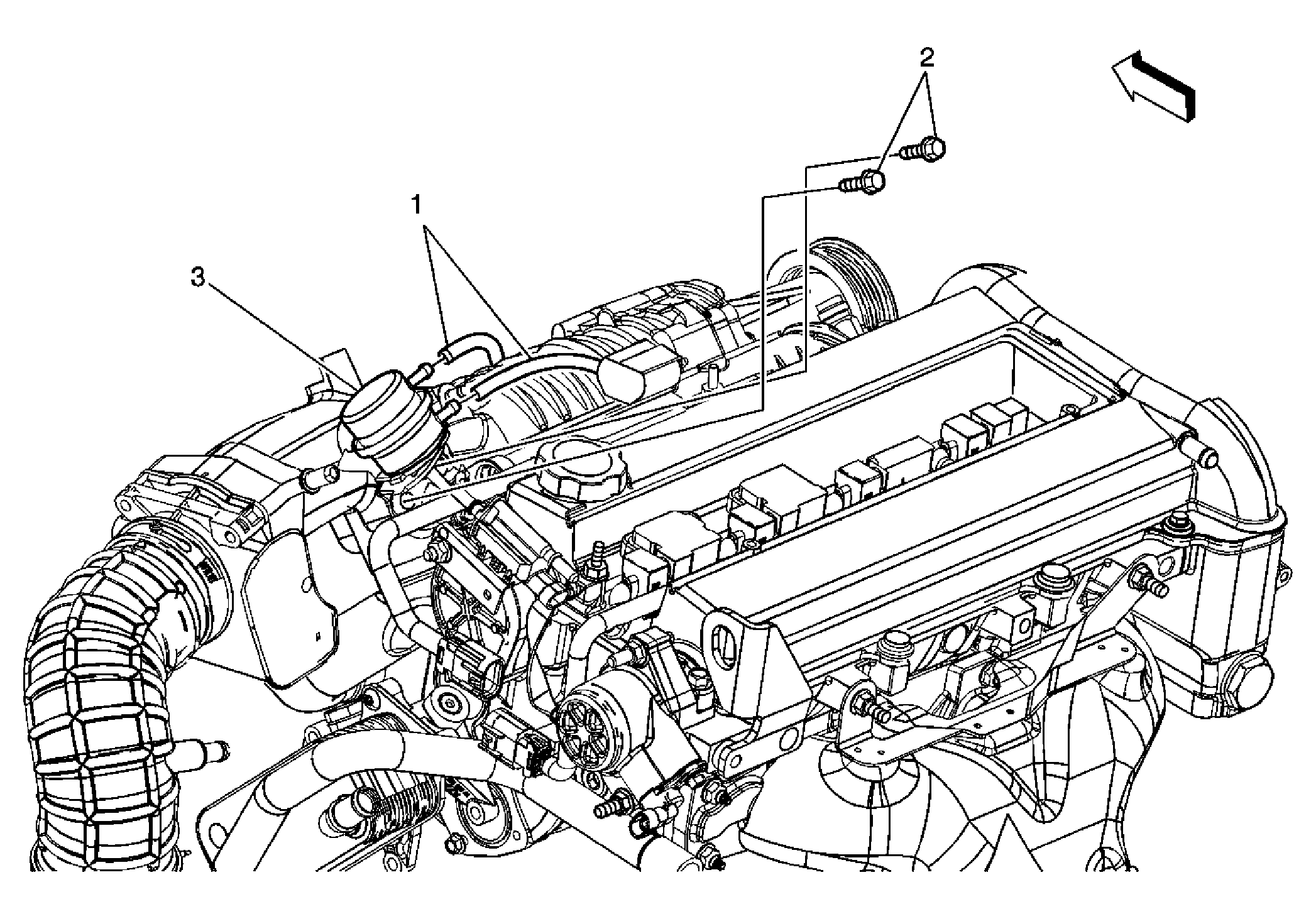

| Bypass Valve Actuator | |
| 1 | Vacuum hose (Qty 2), Bypass Valve Actuator |
| 2 | Bolt (Qty 2), Bypass Valve Actuator Tighten: 10 N.m (89 lb in) |
| 3 | Bypass Valve Actuator |
