Power Window Schematics

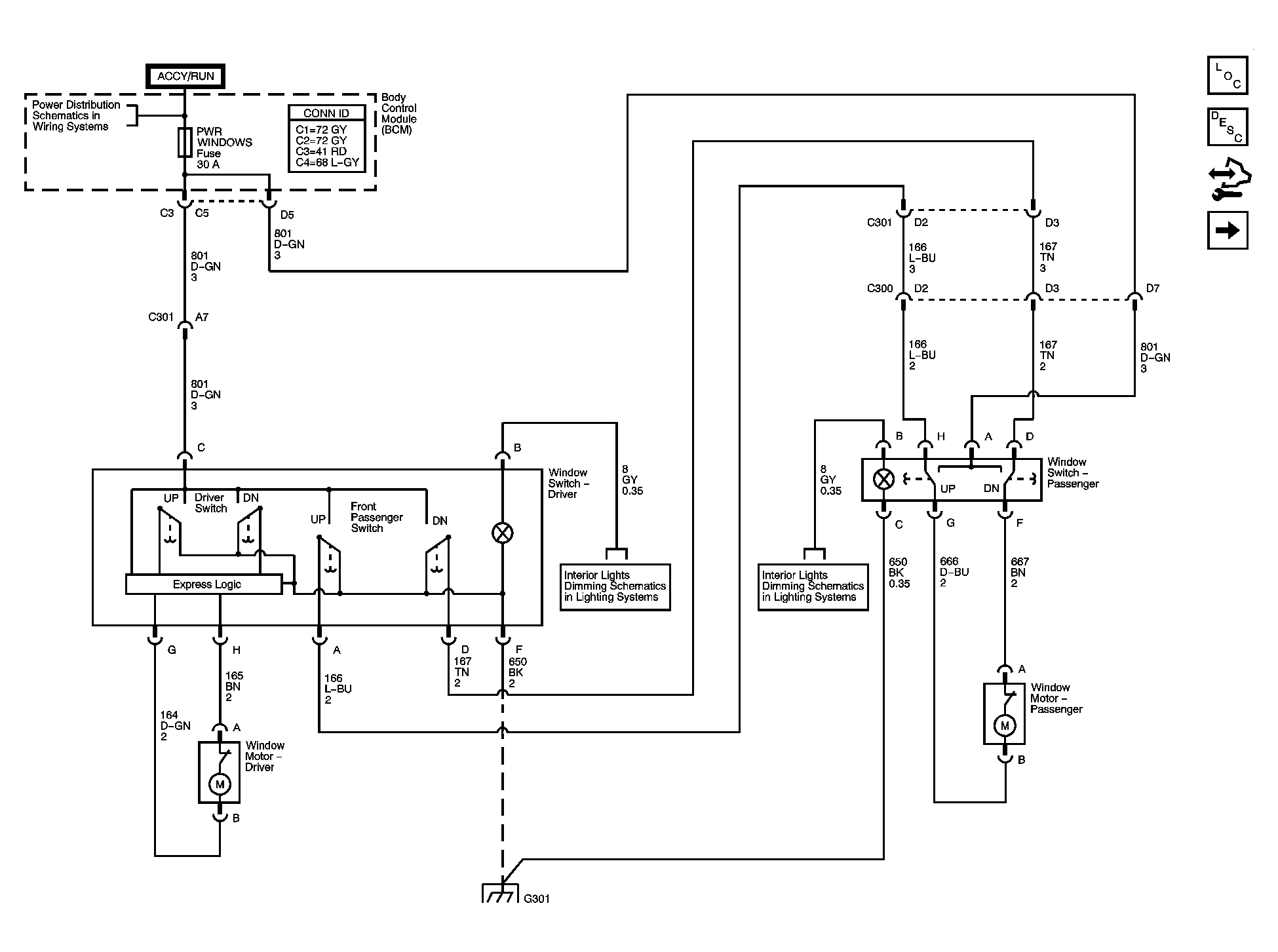

Fig 1: Power Window Schematic (Coupe)

GM1530040

Courtesy of GENERAL MOTORS CORP.

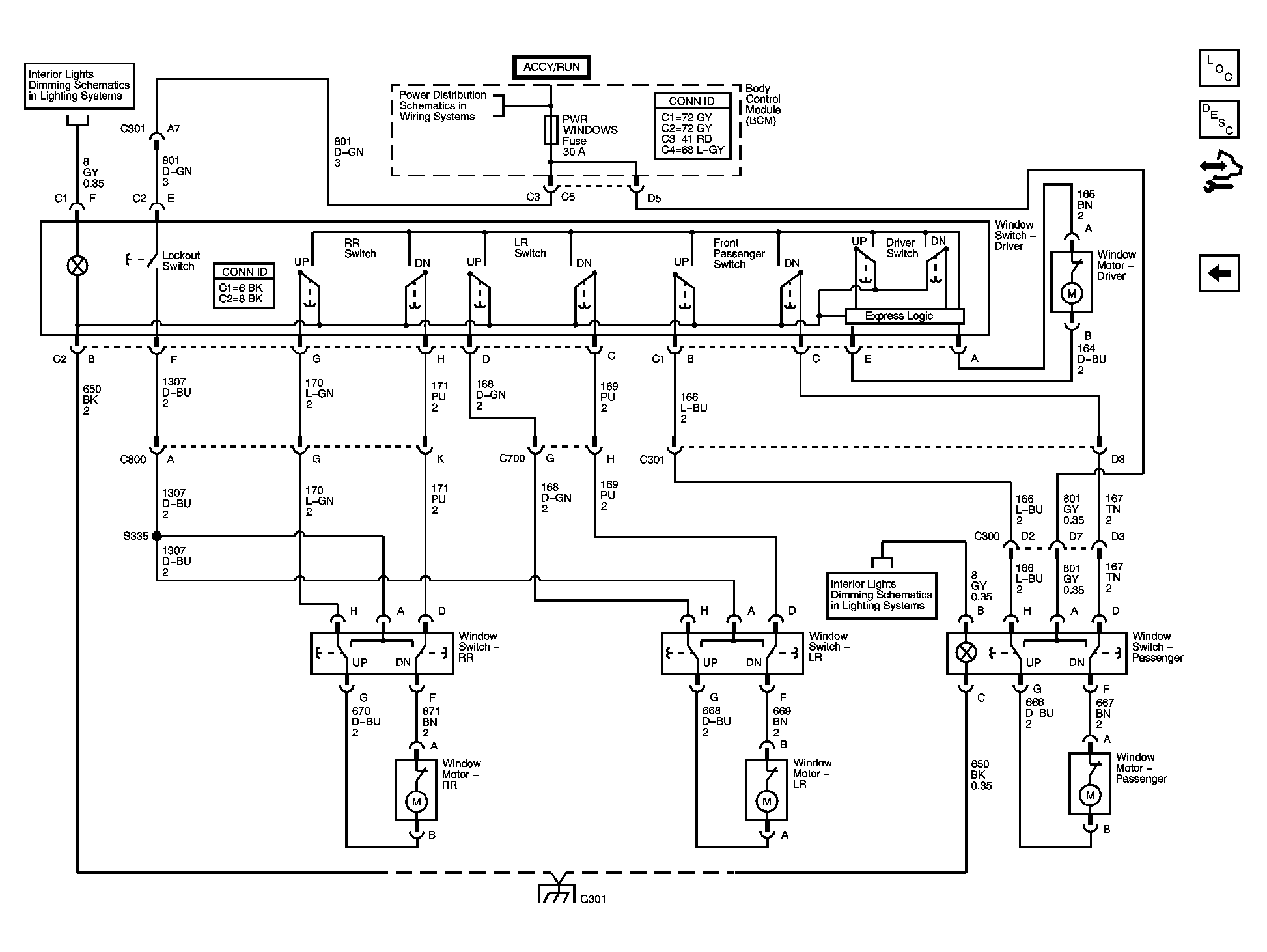

Fig 2: Power Window Schematic (Sedan)

GM1530043

Courtesy of GENERAL MOTORS CORP.
