Window Replacement - Front Door

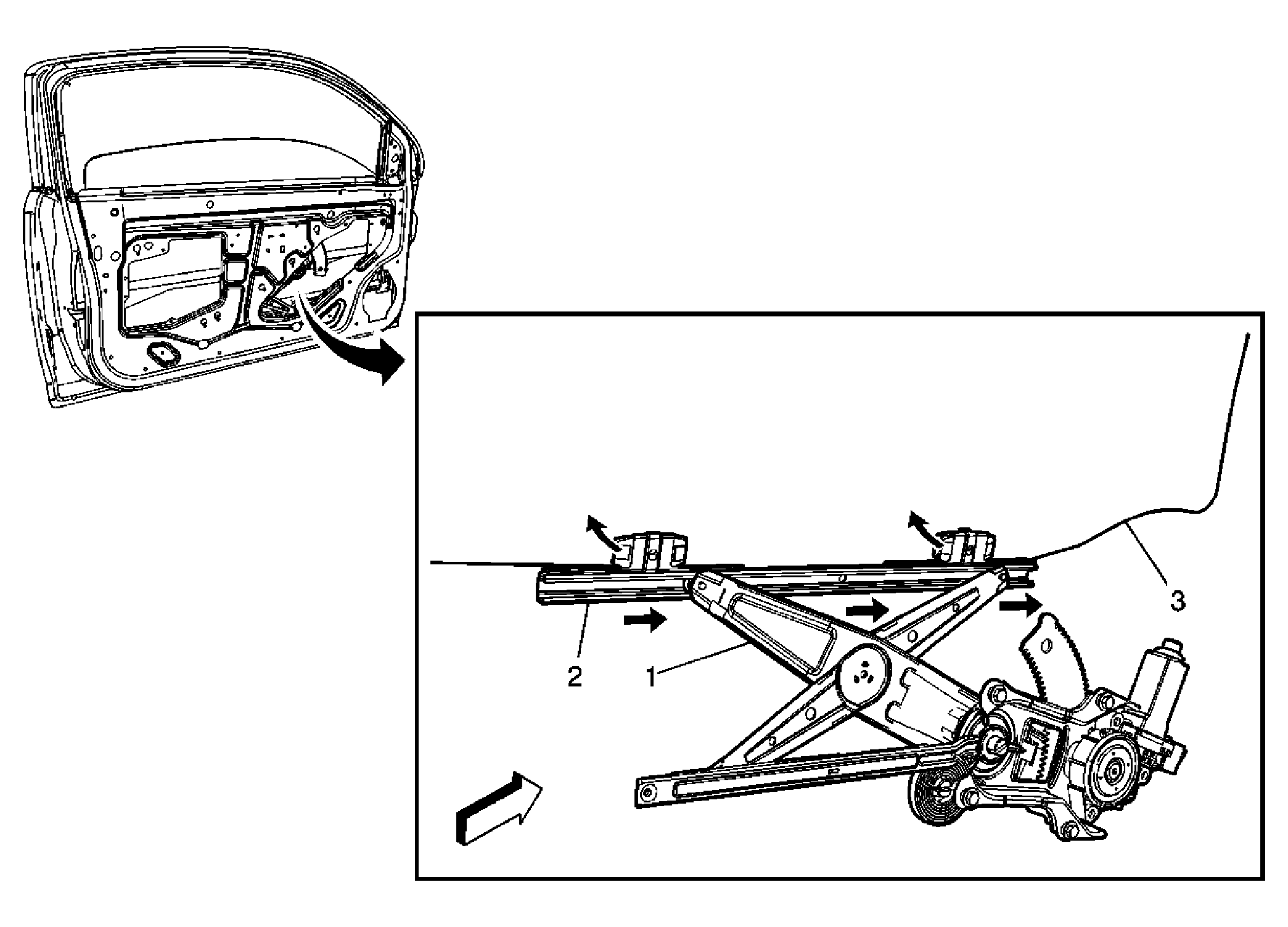

Fig 1: Window Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the water deflector. Refer to Water Deflector Replacement - Front Door . Remove the side door window outer sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer . Move the window about half way down and loosen the nuts that secure the window regulator to the window assembly.
1	Window, Front Side Door Tip: Tilt the window inward and remove through the inside of the side door window opening.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door .
Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
Remove the side door window outer sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
Move the window about half way down and loosen the nuts that secure the window regulator to the window assembly.

Window, Front Side Door
Tip: Tilt the window inward and remove through the inside of the side door window opening.
