Lock Replacement - Front Door

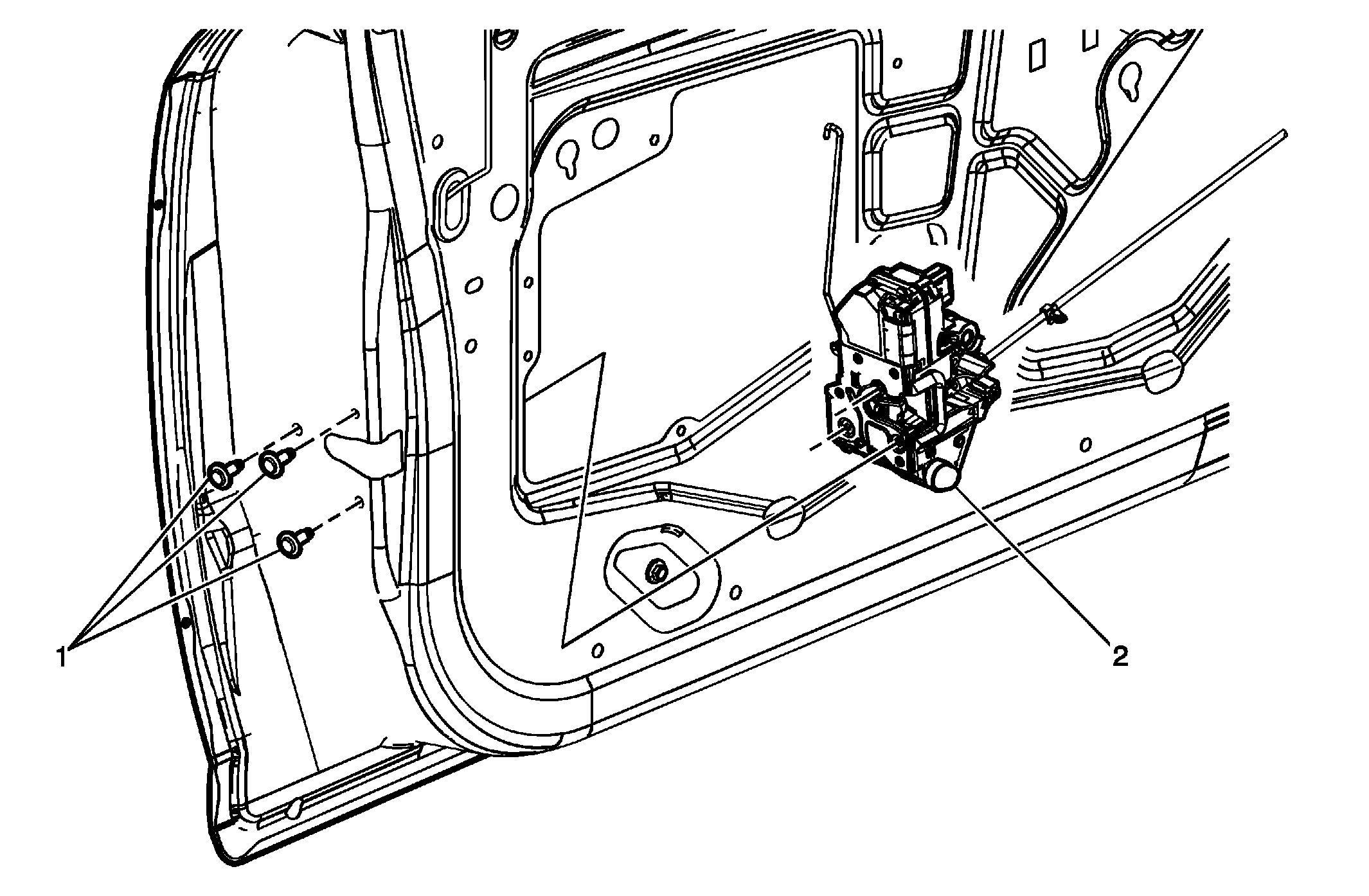

Fig 1: Lock Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
1	Screw, Front Side Door Lock (Qty: 3) Tighten: 10 N.m (89 lb in)
2	Lock Assembly, Front Side Door

Callout

Component Name

NOTE: Refer to Fastener Notice in Cautions and Notices.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door .
Remove the water deflector. Refer to Water Deflector Replacement - Front Door .

Screw, Front Side Door Lock (Qty: 3)

Tighten: 10 N.m (89 lb in)

Lock Assembly, Front Side Door
