Armrest Pull Cup Replacement
Armrest Pull Cup Replacement

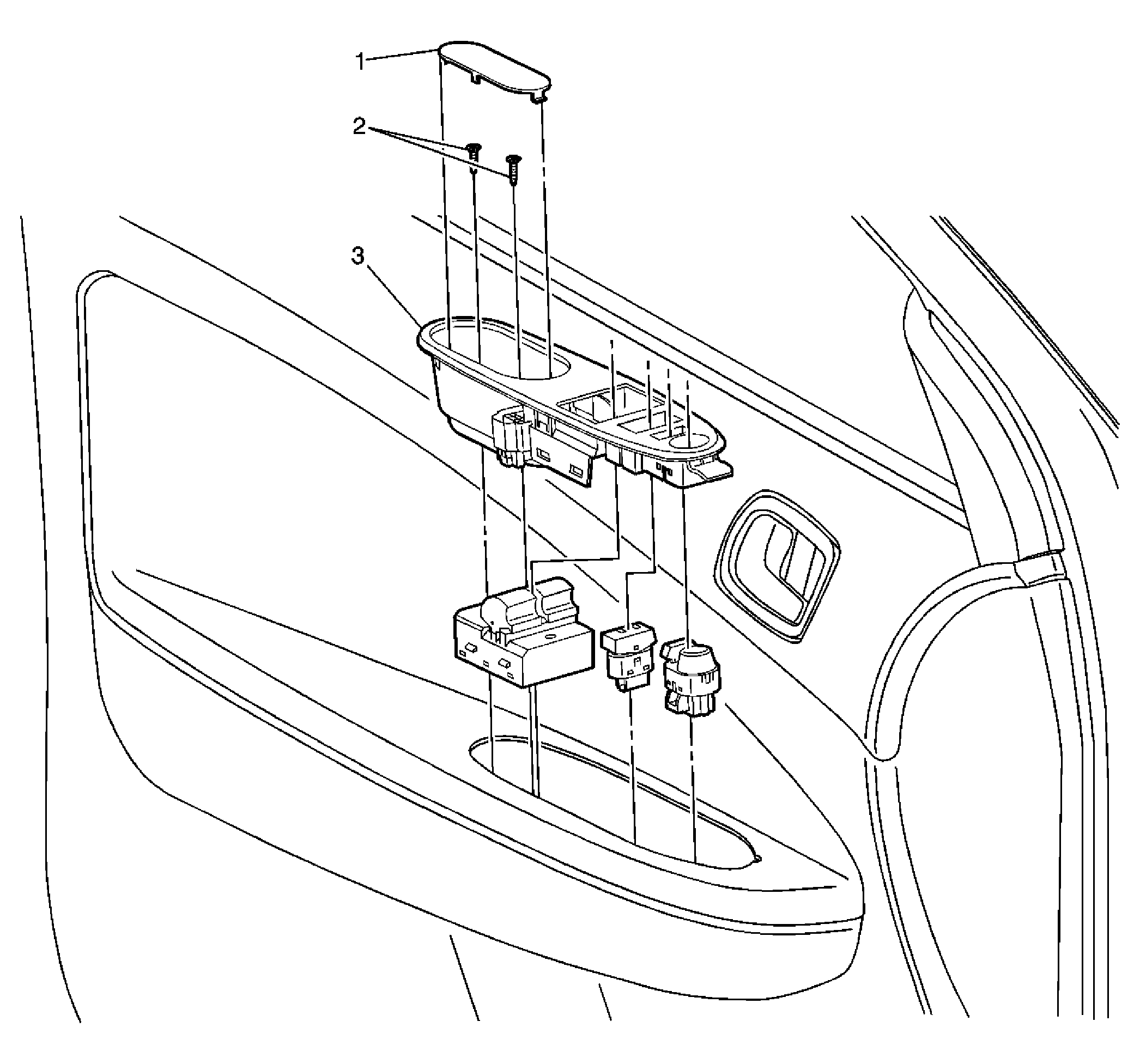

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Trim Plate, Door Panel Pull Cup |
| 2 | Screw, Door Panel Pull Cup Tighten: 2 N.m (18 lb in) |
| 3 | Pull Cup Assembly Tip: Disconnect the electrical connector. |
