Body Control Module Fuse Block
NOTE:
Body Control Module is located under center of instrument panel below radio on right side of center console.
DRIVER'S SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUITS
| Fuse | Usage |
|---|---|
| A | Wipers |
| B | Trunk Release and Remote Keyless Entry |
| C | Turn Signals |
| D | Power Mirrors |
| E | Air Bag |
| F | Body Function Control Module |
| G | Powertrain Control Module (PCM) |
| H | Door Locks |
| J | Body Function Control Module/Instrument Panel Cluster |
| MICRO RELAY TRUNK REL | Remote Trunk Release |
| CIRCUIT BRKR PWR SEATS | Power Seats |
| MICRO RELAY DR UNLOCK | Door Locks |
| MICRO RELAY DR LOCK | Door Locks |
| MICRO RELAY DRIVERS DR UNLOCK | Door Locks |
| STOP LPS | Stoplamps |
| HAZARD LPS | Hazard Lamps |
| IPC/HVAC BATT | Cluster, Climate Control |

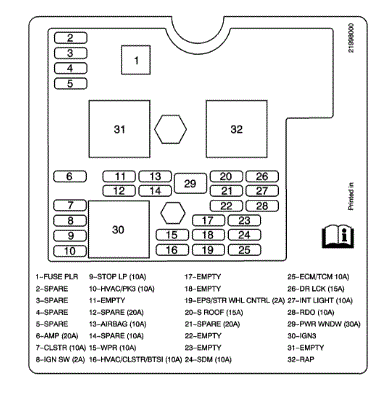

Body Control Module (BCM) Fuse And Relay Identification Legend
| No. | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|
| 1 | FUSE PULLER | - | - |
| 2 | SPARE | - | Not Used |
| 3 | SPARE | - | Not Used |
| 4 | SPARE | - | Not Used |
| 5 | SPARE | - | Not Used |
| 6 | AMP Fuse | 20A | Audio Amplifier (UQ3) |
| 7 | CLSTR Fuse | 10A | Instrument Panel Cluster (IPC) |
| 8 | IGN SW Fuse | 2A | Ignition Switch |
| 9 | STOP LP Fuse | 10A | Stop Lamp Switch |
| 10 | HVAC/PK3 Fuse | 10A | HVAC Control Module |
| 11 | EMPTY | - | Not Available |
| 12 | SPARE | 20A | Not Used |
| 13 | AIR BAG Fuse | 10A | Inflatable Restraints Sensing and Diagnostic Module (SDM) |
| 14 | SPARE | 10A | Not Used |
| 15 | WPR Fuse | 10A | Windshield Wiper/Washer Switch and Supercharger Boost Control Solenoid |
| 16 | HVAC/CLSTR/BTSI Fuse | 10A | Instrument Panel Cluster (IPC), Heated Seat Switch - Driver, Heated Seat Switch - Passenger, Clutch Pedal Start Switch, HVAC Control Module, Stop Lamp/TCC Switch |
| 17 | EMPTY | - | Not Available |
| 18 | EMPTY | - | Not Available |
| 19 | EPS/STR WHL CNRL Fuse | 2A | Electric Power Steering (EPS) Column Assembly, Inflatable Restraint Steering Wheel Module Control |
| 20 | S ROOF Fuse | 15A | Sunroof Switch, Inside Rearview Mirror(UE1) |
| 21 | SPARE | 20A | Not Used |
| 22 | EMPTY | - | Not Available |
| 23 | EMPTY | - | Not Available |
| 24 | SDM Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM), Body Control Module (BCM) |
| 25 | ECM/TCM Fuse | 10A | Fuse Block Underhood, Transmission Control Module (TCM)(L61), Engine Control Module (ECM)(L61), Powertrain Control Module (PCM) (LSJ) |
| 26 | DR LCK Fuse | 15A | Door Unlock Relays, Door Lock Relay, Interior Lamps Relay |
| 27 | INT LIGHT Fuse | 10A | Interior Lamps Relay |
| 28 | RDO Fuse | 10A | Radio, Remote Control Door Lock Receiver (RCDLR) (AUO) |
| 29 | PWR WNDW Fuse | 30A | Window Switch - Passenger, Window switch - Driver |
| 30 | IGN3 Relay | - | Blower Motor |
| 31 | EMPTY | - | Not Available |
| 32 | RAP Relay | - | Retained Accessory Power |
