Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

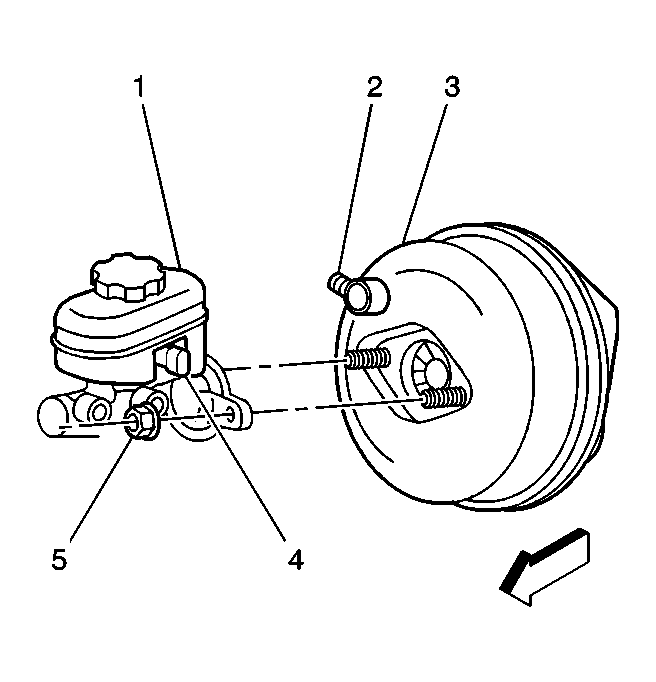

    Fig 1: Installing Master Cylinder To Vacuum Brake Booster
    GM175182Courtesy of GENERAL MOTORS CORP.
  1. Bench bleed the master cylinder. Refer to Master Cylinder Bench Bleeding .
  2. Install the master cylinder to the vacuum brake booster.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the master cylinder mounting nuts (5).

    Tighten:  Tighten the master cylinder mounting nuts to 27 N.m (20 lb ft).

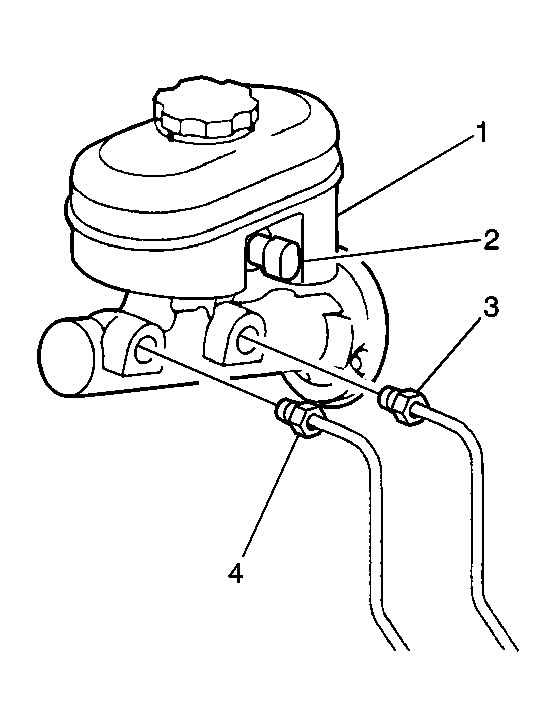

    4. Fig 2: View Of Brake Pipes, Brake Fluid Level Sensor & Nuts
    GM175184Courtesy of GENERAL MOTORS CORP.
  4. Install the brake pipes (3, 4) to the master cylinder.

    Tighten:  Tighten the brake pipe fittings at the master cylinder to 23 N.m (17 lb ft).

  5. Connect the electrical connector to the brake fluid level sensor (2).
  6. Bleed the brake system. Refer to Hydraulic Brake System Bleeding (Manual)  or Hydraulic Brake System Bleeding (Pressure) .
