Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Reservoir & Brake Fluid Level Sensor

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connector from the brake fluid level sensor (1).

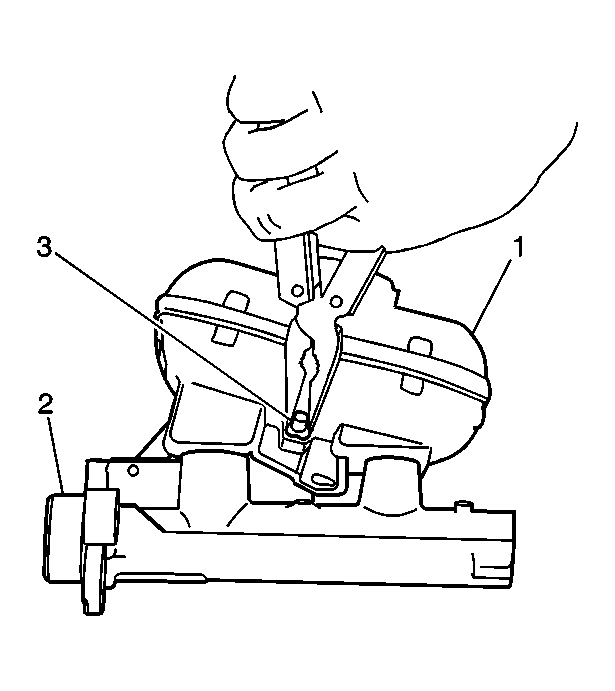

Fig 2: Removing Brake Fluid Level Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the brake fluid level sensor (3). Using needle nose pliers, carefully depress the retaining tabs on the end of the brake fluid level sensor and press the sensor through the reservoir (1) to remove.
