HVAC Connector End Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
Air Temperature Actuator Connector End View

GM280764Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064993
  • 6-Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
5-6 - - Not Used
7 BLK/WHT 151 Ground
8 LT BLU 733 Air Temperature Door Control
9 - - Not Used
10 BRN 41 Ignition 3 Voltage
A/C Compressor Clutch Connector End View

GM684852Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124823
  • 2-Way F Metri-Pack 150 Series Sealed (MD GRY)
Pin Wire Color Circuit No. Function
A GRY 729 Ground
B DK GRN 59 A/C Compressor Clutch Supply Voltage
A/C Refrigerant Pressure Sensor Connector End View

GM258299Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065286
  • 3-Way F Metri-Pack 150 Series Pull-to-Seat Sealed (BLK)
Pin Wire Color Circuit No. Function
A BLK 2751 Low Reference
B GRY 2700 5 Volt Reference
C RED/BLK 380 A/C Refrigerant Pressure Sensor Signal
Blower Motor Connector End View

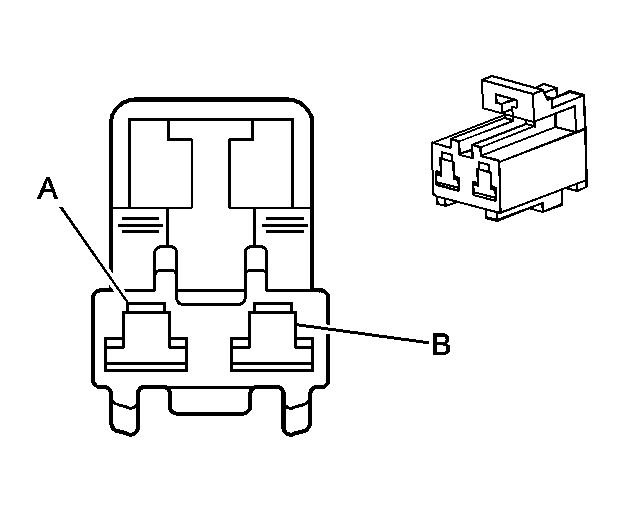

GM805441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064829
  • 2-Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A BLK 250 Ground
B PPL 65 Blower Motor Supply Voltage
Blower Motor Resistor Assembly Connector End View

GM805442Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12084890
  • 5-Way F Metri-Pack 280 Series Sealed (MD GRY)
Pin Wire Color Circuit No. Function
A LT BLU 72 Medium 2 Blower Motor Control
B YEL 60 Low Blower Motor Control
C TAN 63 Medium 1 Blower Motor Control
D PPL 73 Medium 3 Blower Motor Control
E DK BLU 101 Blower Motor Supply Voltage
HVAC Control Assembly, C1 Connector End View

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B BRN 641 Ignition 3 Voltage
C ORN 52 High Blower Motor Control
D - - Not Used
E PPL 73 Medium 3 Blower Motor Control
F LT BLU 72 Medium 2 Blower Motor Control
G TAN 63 Medium 1 Blower Motor Control
H YEL 60 Low Blower Motor Control
HVAC Control Assembly, C2 Connector End View

GM73151Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064799
  • 12-Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B LT GRN 66 A/C Request Signal
C BRN 41 Ignition 3 Voltage
D WHT 193 Rear Defog Relay Control
E ORN 1440 Battery Positive Voltage
F - - Not Used
G LT BLU 733 Air Temperature Door Control
H - - Not Used
J GRY 8 Instrument Panel Lamp Supply Voltage -1
K BLK/WHT 151 Ground
L - - Not Used
M BRN 9 Park Lamp Supply Voltage
