Body Rear End Component Views
WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
I/P Harness |
| 2 |
Engine Harness |
| 3 |
Powertrain Control Module (PCM) Connectors |
| 4 |
Body Harness |
| 5 |
Rear Compartment Lid Release Switch |

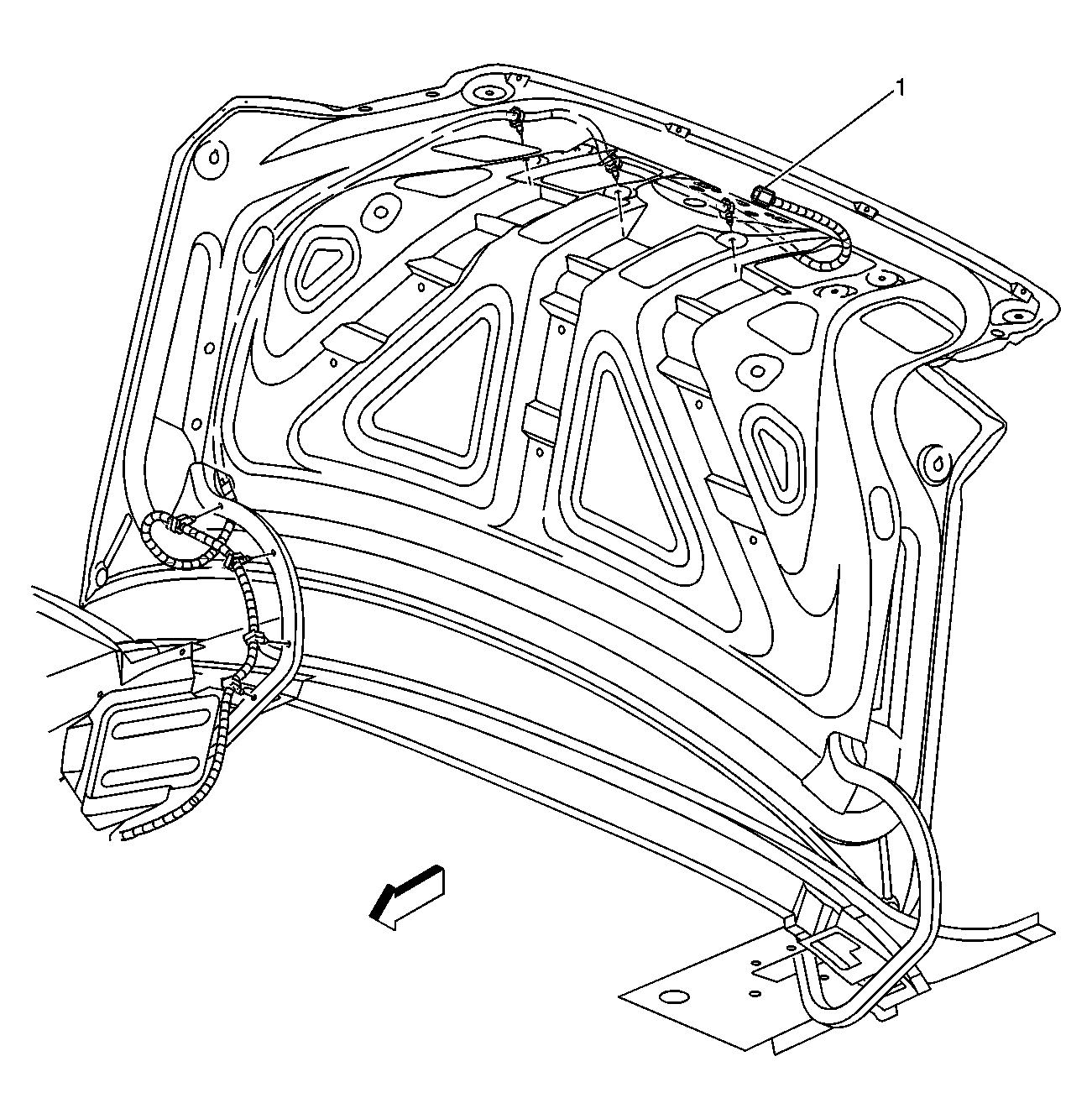

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Rear Compartment Lid Release Actuator |
