Door Lock/Indicator Schematics

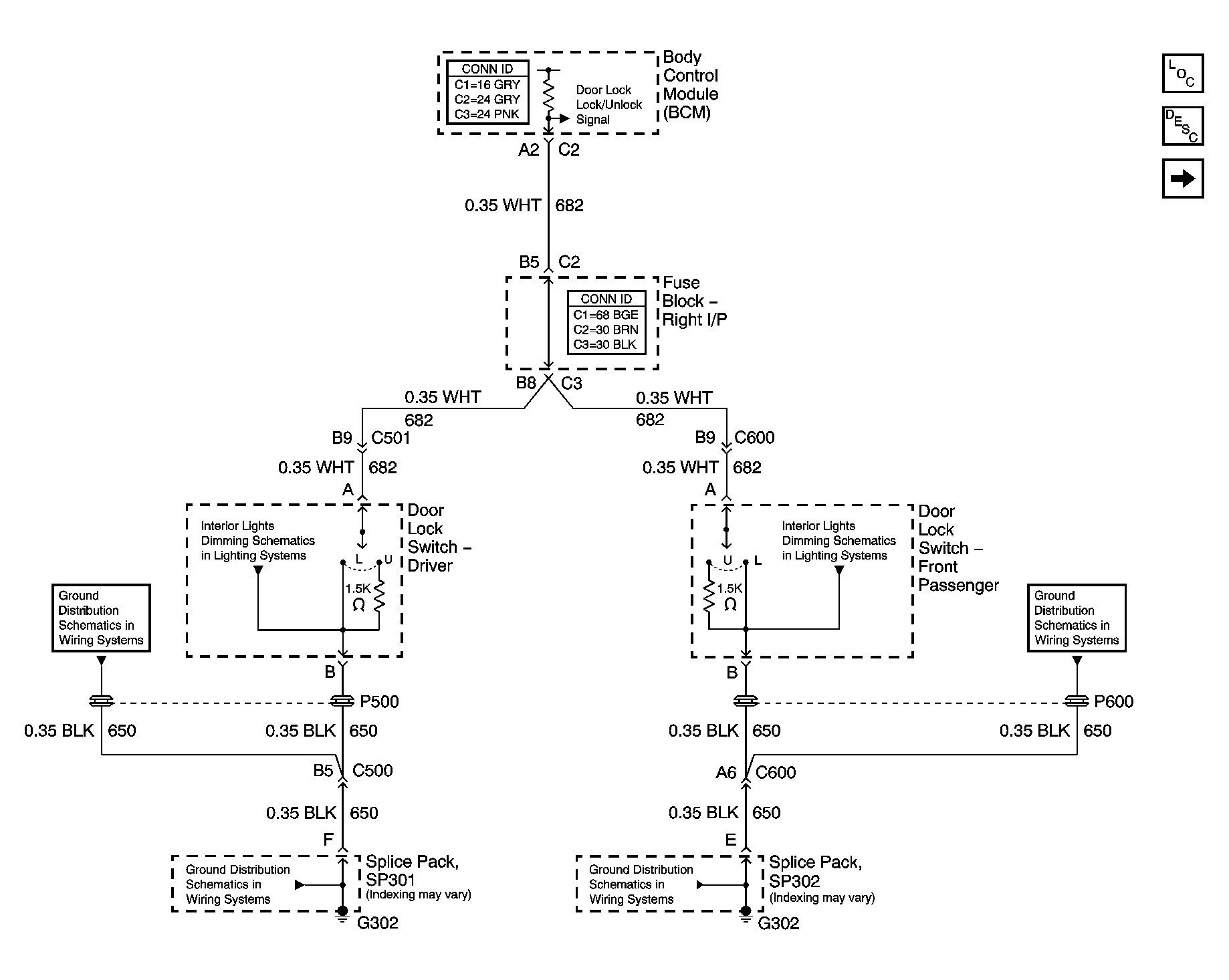

Fig 1: Door Lock Switch & Indicator Schematic

Courtesy of GENERAL MOTORS CORP.

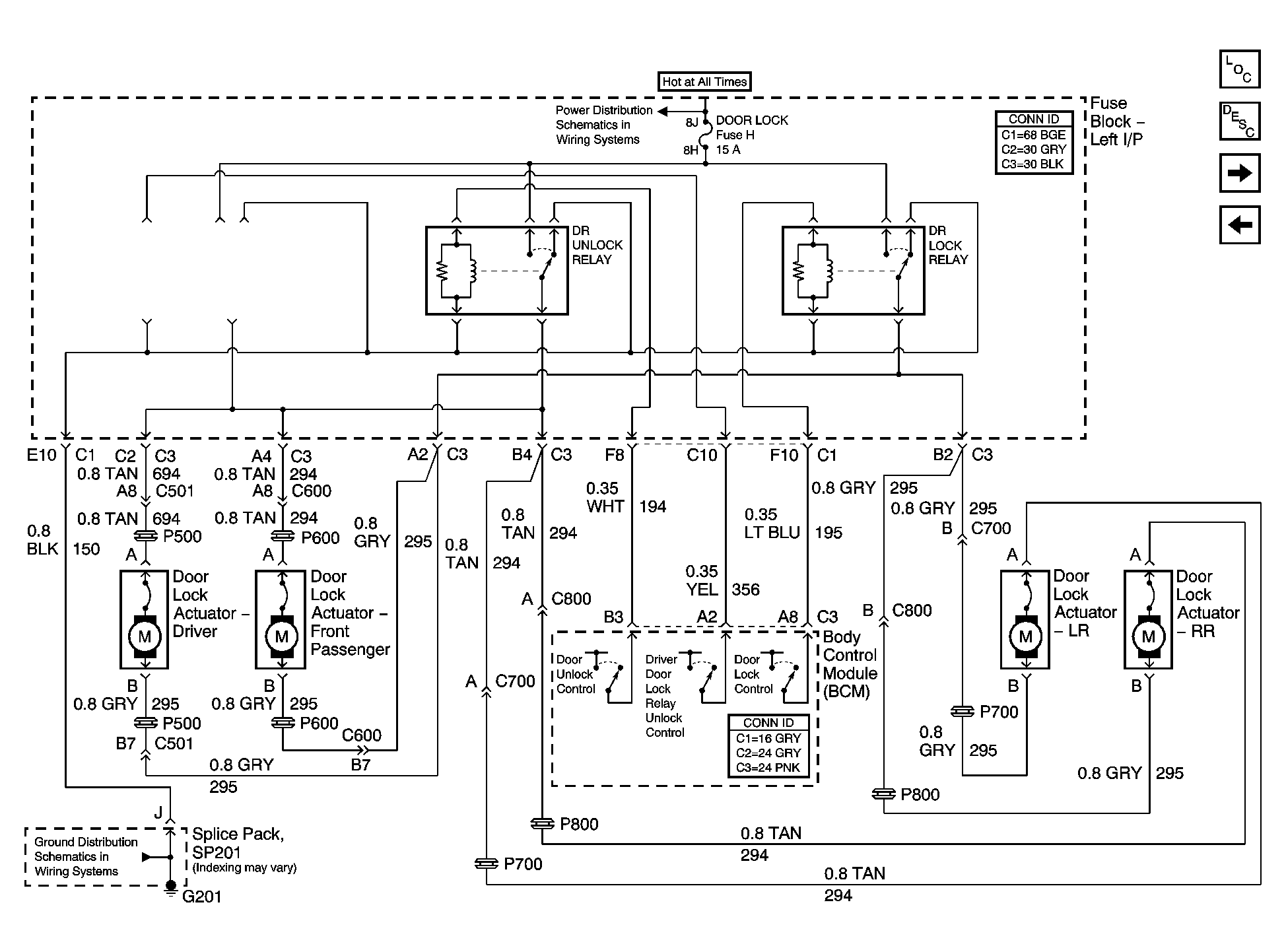

Fig 2: Door Lock Actuators - with Remote Function Actuation Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Actuators - without Remote Function Actuation Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Door Ajar Switches Schematic

Courtesy of GENERAL MOTORS CORP.
