Theft Deterrent System Component Views

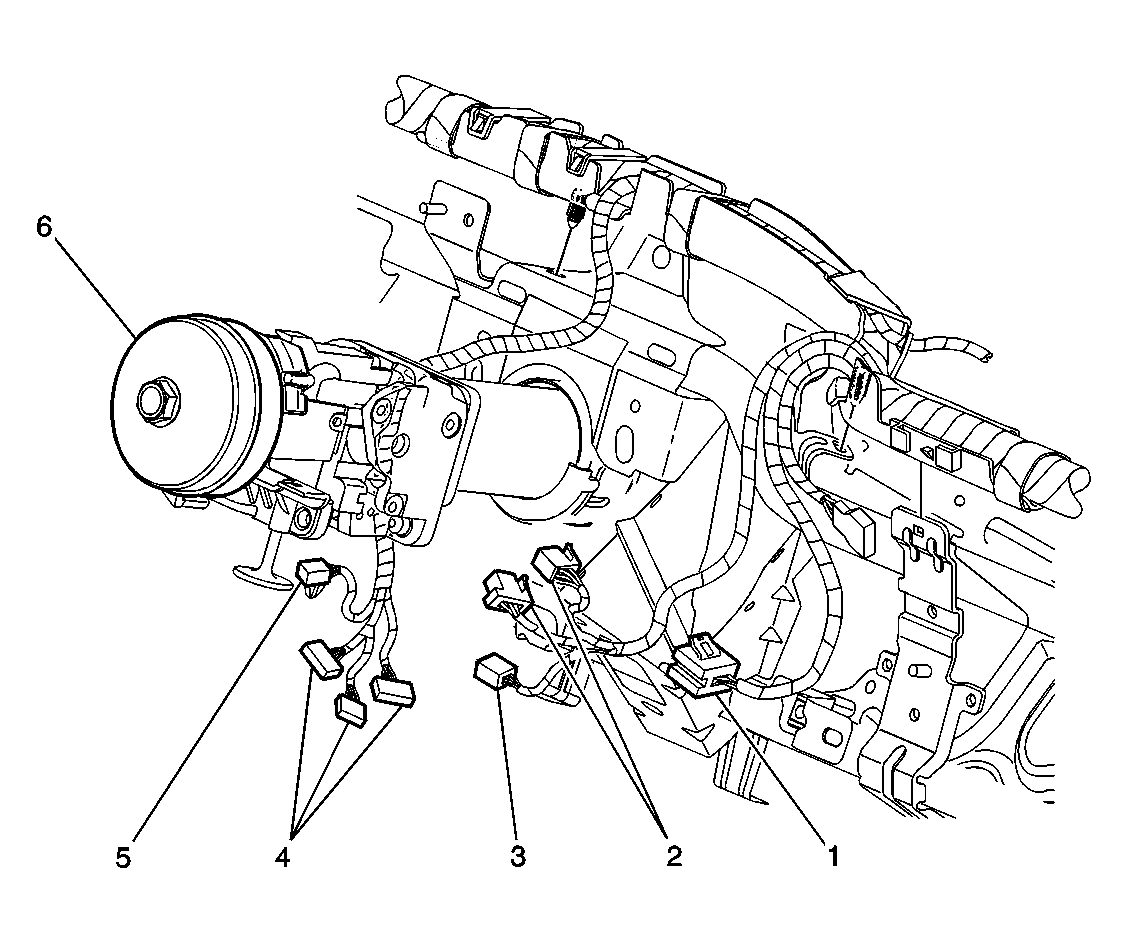

Fig 1: Steering Column Connectors & Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Switch Connector
2	Ignition Switch Connectors
3	Passlock Cylinder Connector (If Equipped)
4	Turn/Headlamp/Wiper Switch Connectors
5	C206 (SIR Coil Harness to I/P Harness Connector)
6	SIR Coil Assembly
