I/P Dimming Module Connector End View

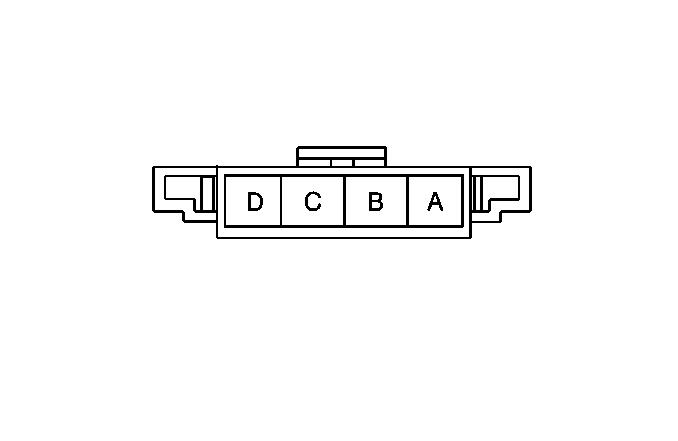

I/P Dimming Module

GM38618Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12034060
  • 4-Way F Metri-Pack 480 Series (WHT)
Pin Wire Color Circuit No. Function
A - - Not Used
B DK GRN 44 Instrument Panel Lamps Dimmer Switch Signal
C BRN/WHT 230 Instrument Panel Lamps Dimming Control
D BRN 9 Park Lamp Supply Voltage
