Installation Procedure

  1. Connect the wiring harnesses to the switches.

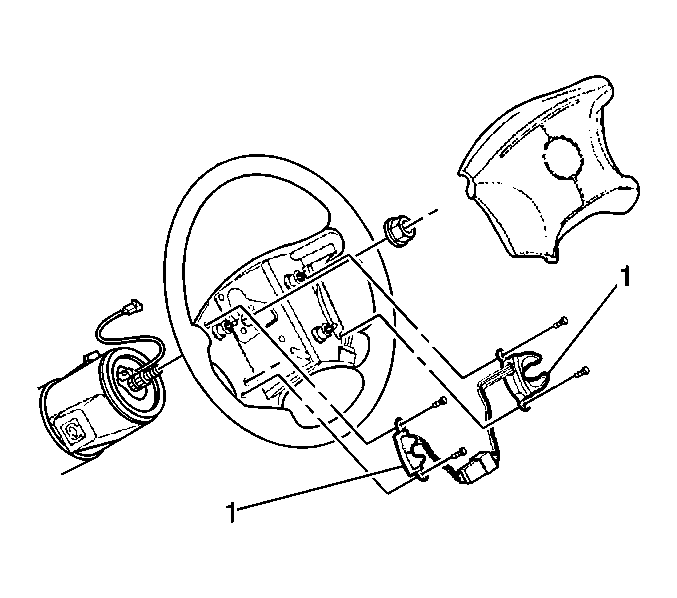

    2. Fig 1: Identifying Steering Wheel Control Switches
    GM323518Courtesy of GENERAL MOTORS CORP.
  2. Press the control switches (1), into the steering wheel.
  3. Install the rear trim cover to the steering wheel.
  4. Install the steering wheel to the steering column. Refer to Steering Wheel Replacement .
