Installation Procedure
WARNING: This page is about a different variant/trim than selected.

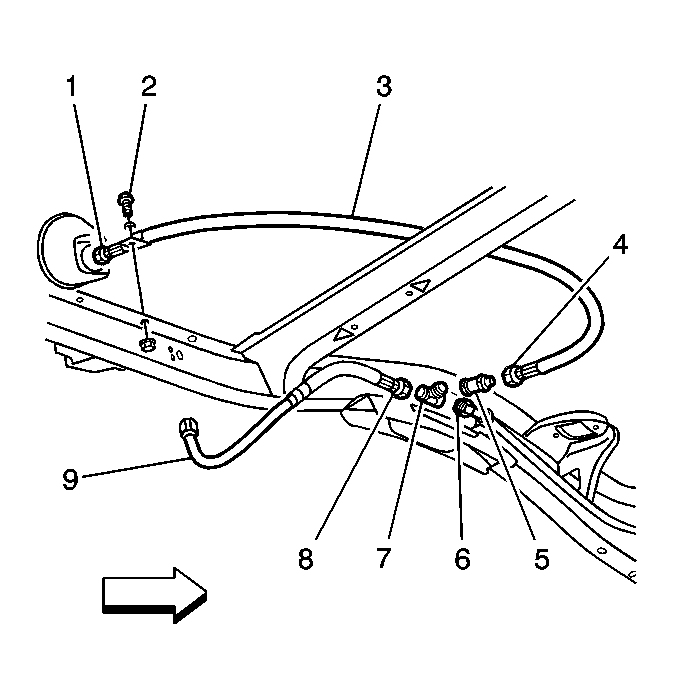

- Connect the fill line fitting (1) to the fill valve using a NEW O-ring. Lubricate the new O-ring with petroleum jelly or equivalent before installation.
Tighten: Tighten the fill line fitting to 45 N.m (33 lb ft).
- Connect the fill line fitting (4) to the check valve (5) using a NEW O-ring. Lubricate the new O-ring with petroleum jelly or equivalent before installation.
Tighten: Tighten the fuel line fitting to 45 N.m (33 lb ft).
- Install the P-clamp mounting bolt (8), washer and nut.
Tighten: Tighten the mounting bolt to 25 N.m (18 lb in).
- Install the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
- Start the vehicle and inspect for CNG fuel leaks at the serviced fittings with the J 45878 or an equivalent leak detector. See Special Tools .
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
