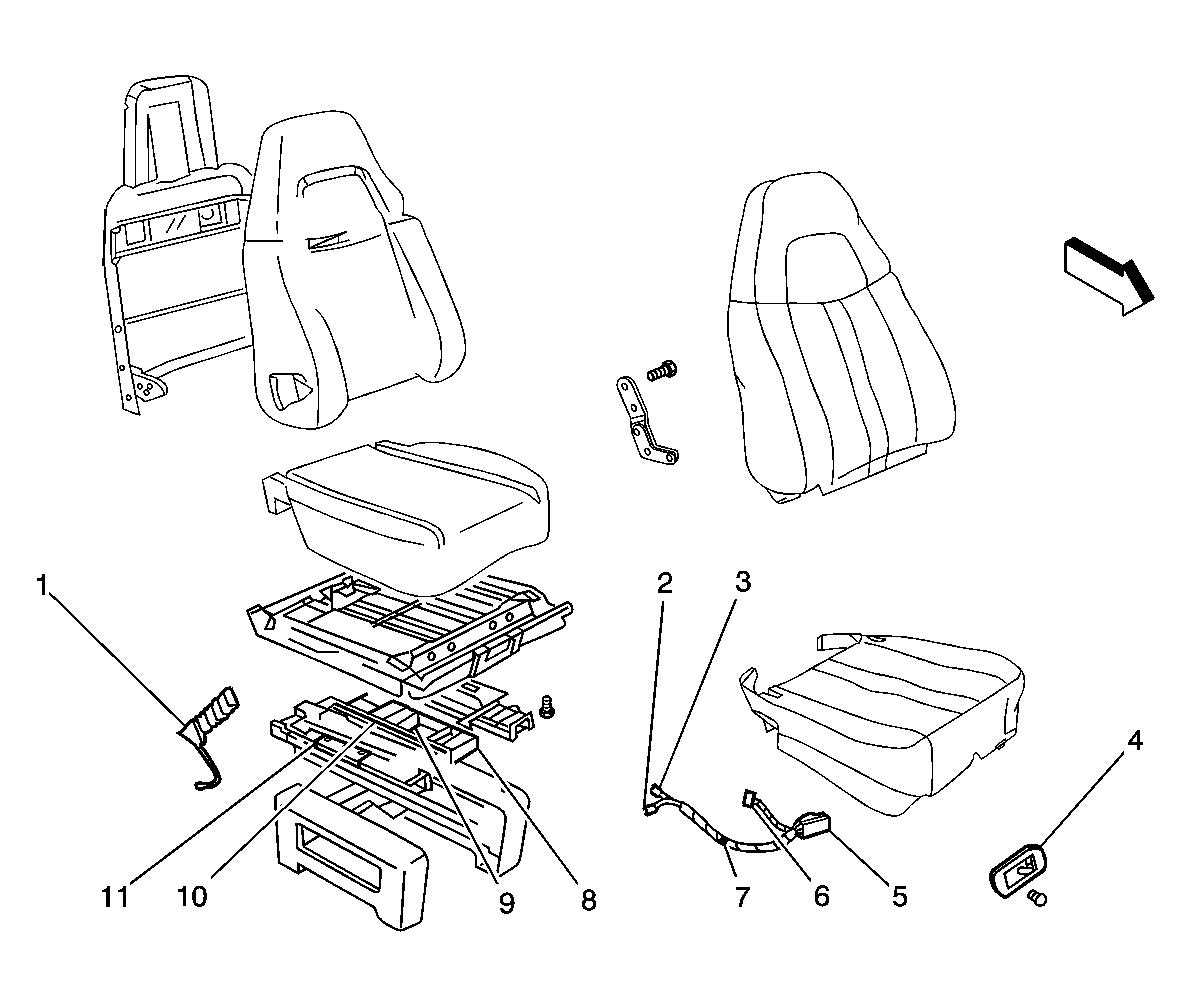

Seat Belt Component Views
| Callout | Component Name |
|---|---|
| 1 | Seat Belt Switch - LF |
| 2 | Inflatable Restraint Seat Position Sensor (SPS) Connector - Left (Light Duty) |
| 3 | C307 |
| 4 | Seat Adjuster Switch - Driver (AG1) |
| 5 | Seat Adjuster Switch Connector - Driver (AG1) |
| 6 | Seat Motors Connector - Driver (AG1) |
| 7 | S304 (AG1) |
| 8 | Seat Motor - Forward/Rearward (AG1) |
| 9 | Seat Motor - Front Tilt (AG1) |
| 10 | Seat Motor - Rear Tilt (AG1) |
| 11 | Inflatable Restraint Seat Position Sensor (SPS) - Left (Light Duty) |
