Removal Procedure

  1. Remove the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
  2. Remove the two wire fuel level sensor connectors from the fuel sender assembly.

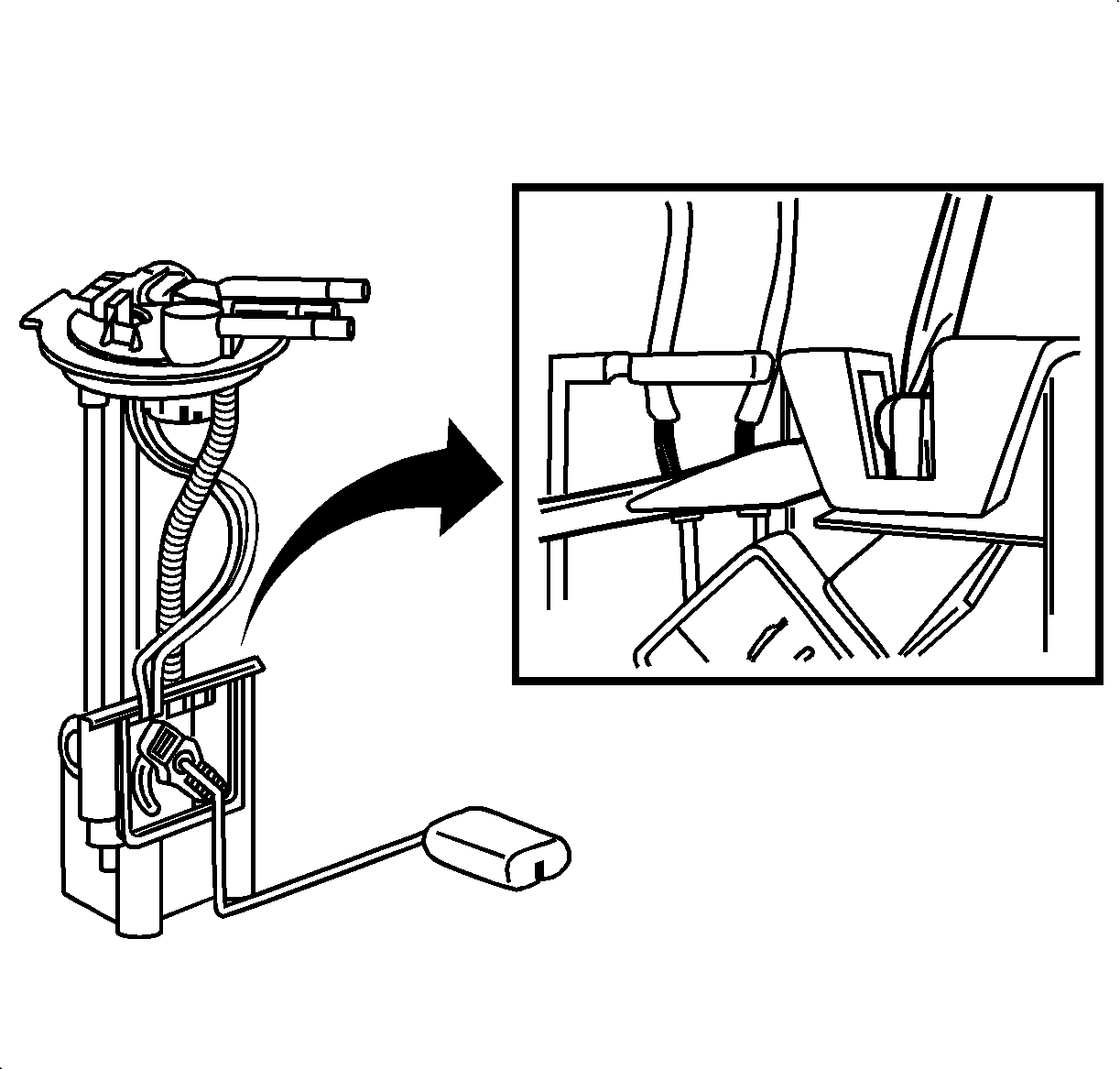

    3. Fig 1: Fuel Level Sensor
    GM1546848Courtesy of GENERAL MOTORS CORP.
  3. Using one of two pocket screwdrivers, pull the front retaining tab away from the front of the fuel level sensor while with the second pocket screwdriver push the fuel level sensor away and down from the fuel sender assembly.
  4. Remove the fuel level sensor from the fuel sender assembly.
