Installation Procedure

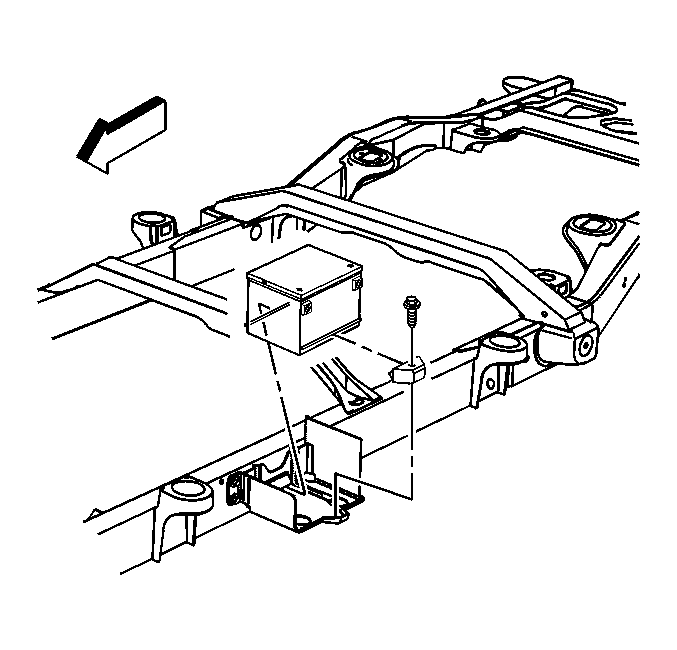

    Fig 1: Removed Auxiliary Battery, Battery Hold-Down Retainer Bolt And Retainer
    GM184057Courtesy of GENERAL MOTORS CORP.
  1. Install the battery into the battery tray.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the battery hold-down retainer and bolt.

    Tighten:  Tighten the battery hold-down retainer bolt to 25 N.m (18 lb ft).

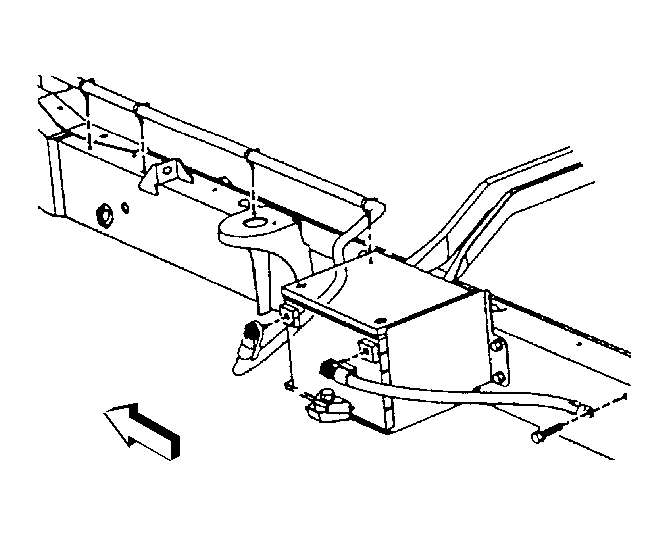

    3. Fig 2: Disconnected Battery Negative Cable From Auxiliary Battery
    GM105191Courtesy of GENERAL MOTORS CORP.
  3. Connect the auxiliary battery positive and negative cables to the battery.

    Tighten:  Tighten the auxiliary battery cables to 15 N.m (11 lb ft).

  4. Lower the vehicle.
  5. Connect the battery negative cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
