Engine Electrical Component Views

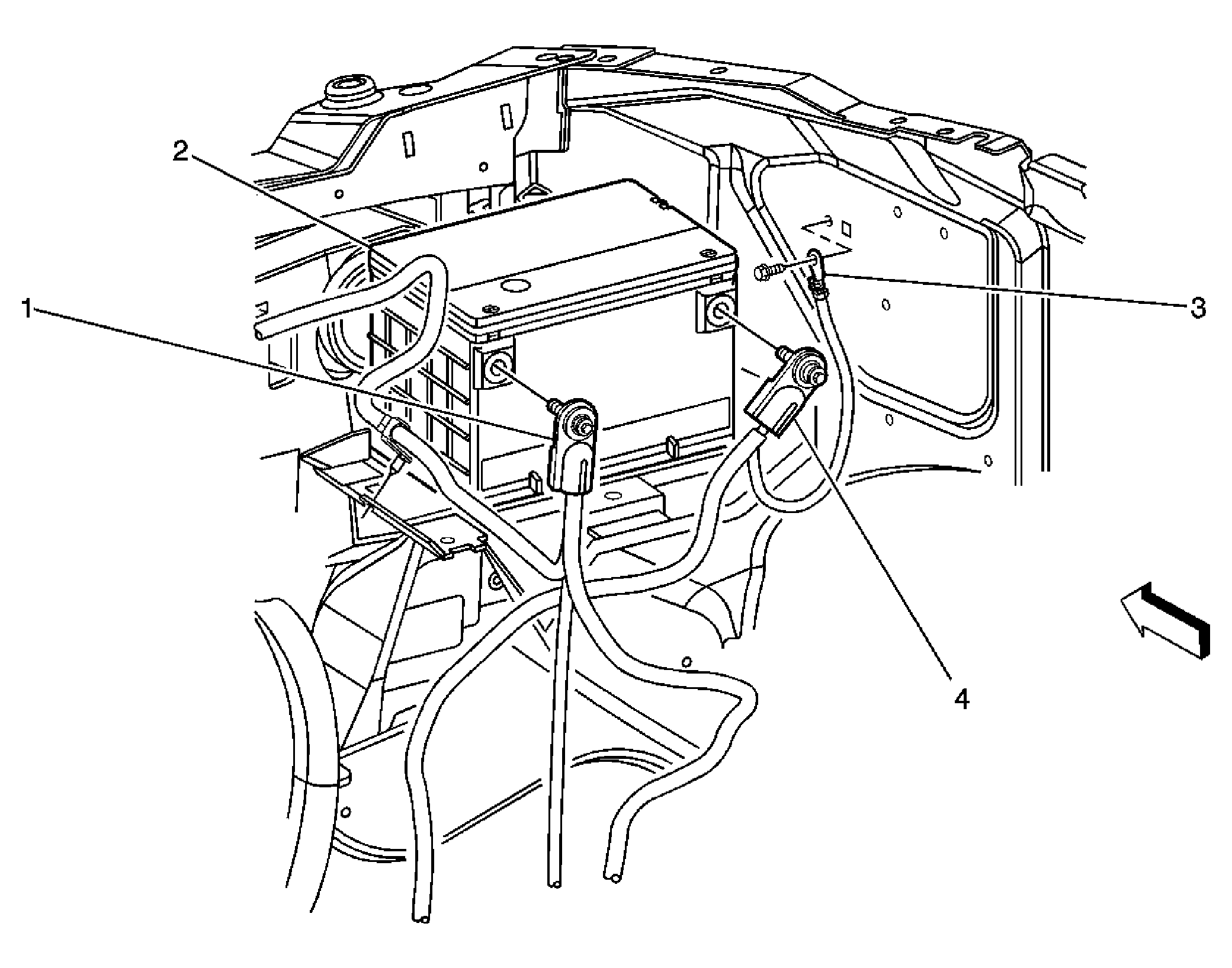

Fig 1: Component View - Battery - G106
GM882408Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Cable (+)
2 Battery
3 G106
4 Battery Cable (-)

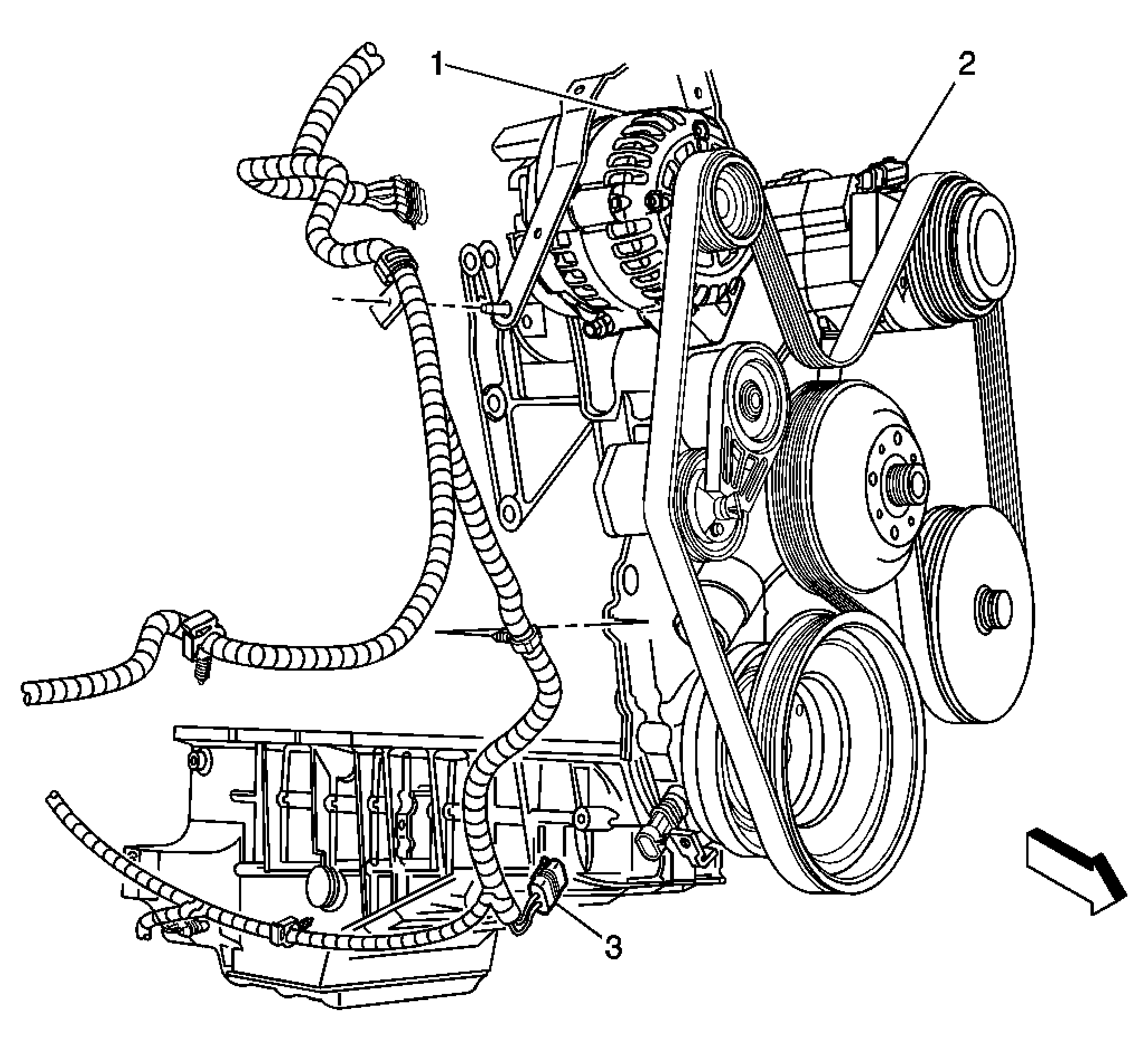

Fig 2: Front of the Engine (4.3L) Component Views
GM886060Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
2 A/C Compressor Clutch Connector (C60)
3 Crankshaft Position (CKP) Sensor Connector

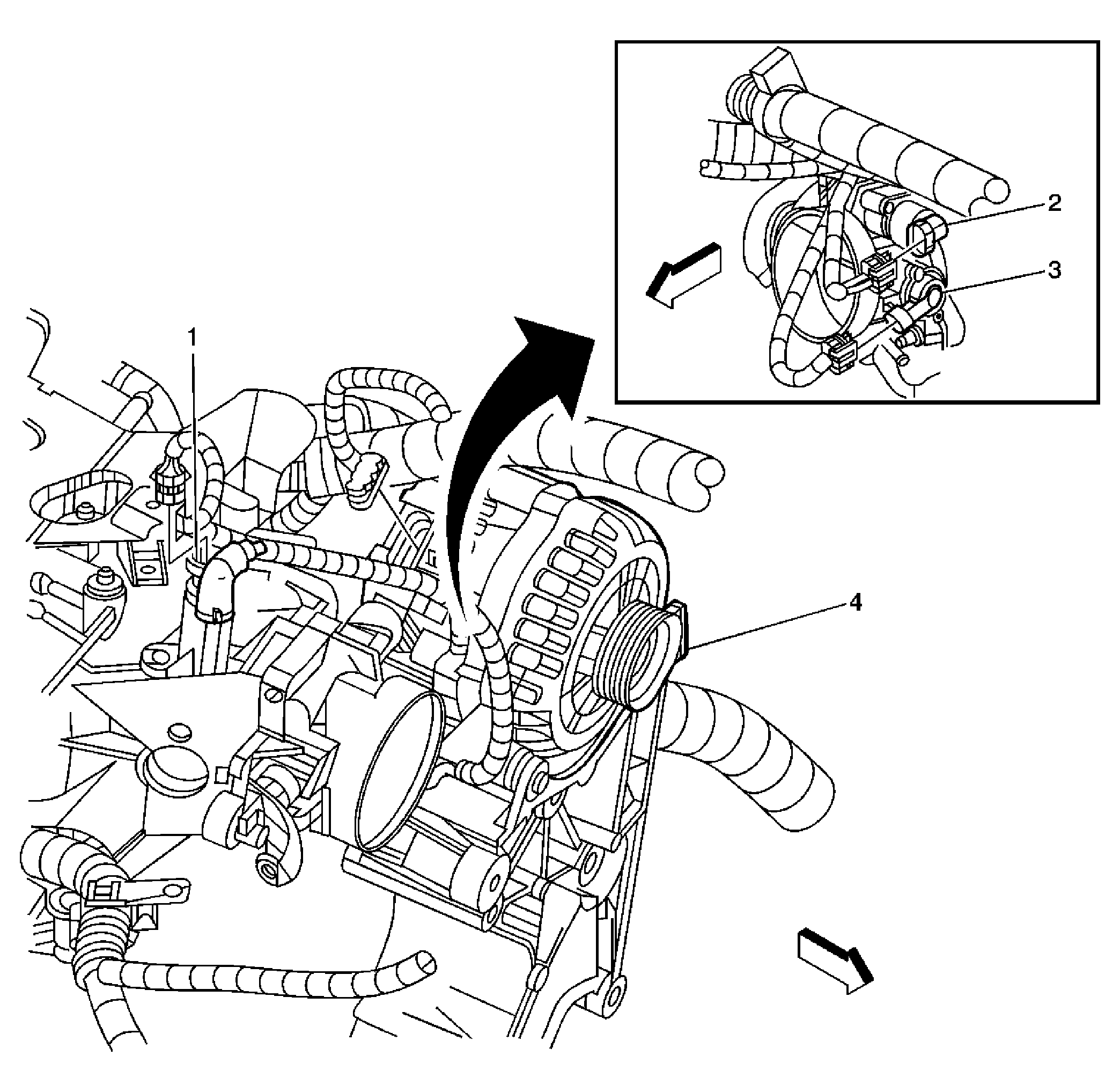

Fig 3: Upper Front of the Engine (4.8L/5.3L/6.0L) Component Views
GM886065Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emissions (EVAP) Canister Purge Solenoid
2 Idle Air Control (IAC) Valve (w/o JL4)
3 Throttle Position (TP) Sensor (w/o JL4)
4 Generator

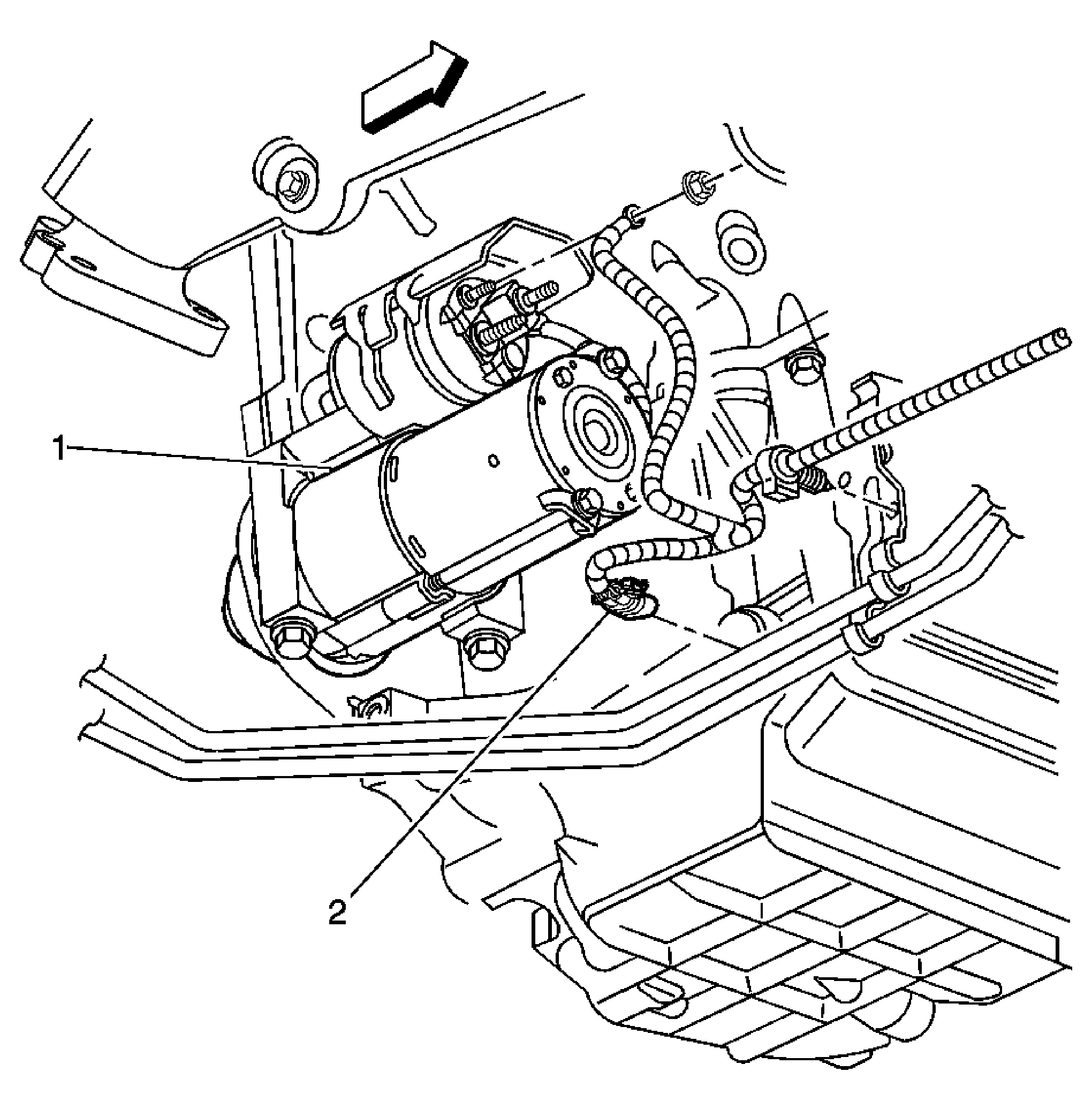

Fig 4: Component View - Right Side Of Engine
GM886064Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter Motor
2 Engine Oil Level Switch Connector (4.8L/5.3L/6.0L)
