Power Outlet Component Views

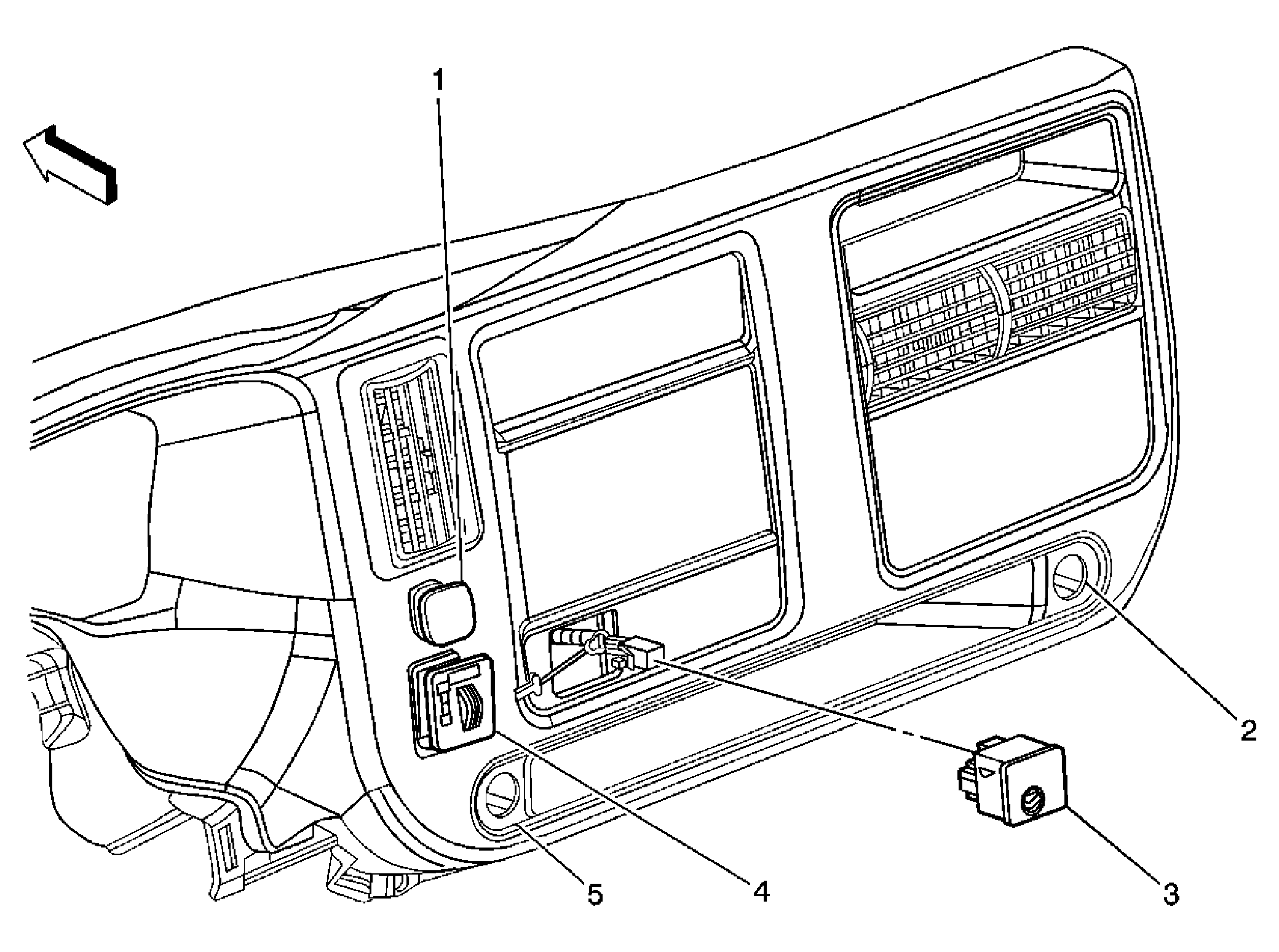

Fig 1: Component View - Center of the I/P
GM1427369Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Tow/Haul Switch
2 Auxiliary Power Outlet 2
3 Inflatable Restraint I/P Module Disable Switch (Heavy Duty)
4 Blower Motor Switch - Auxiliary (C36)
5 Cigar Lighter (DT4)/Auxiliary Power Outlet 1 (w/o DT4)
