ABS Component Views

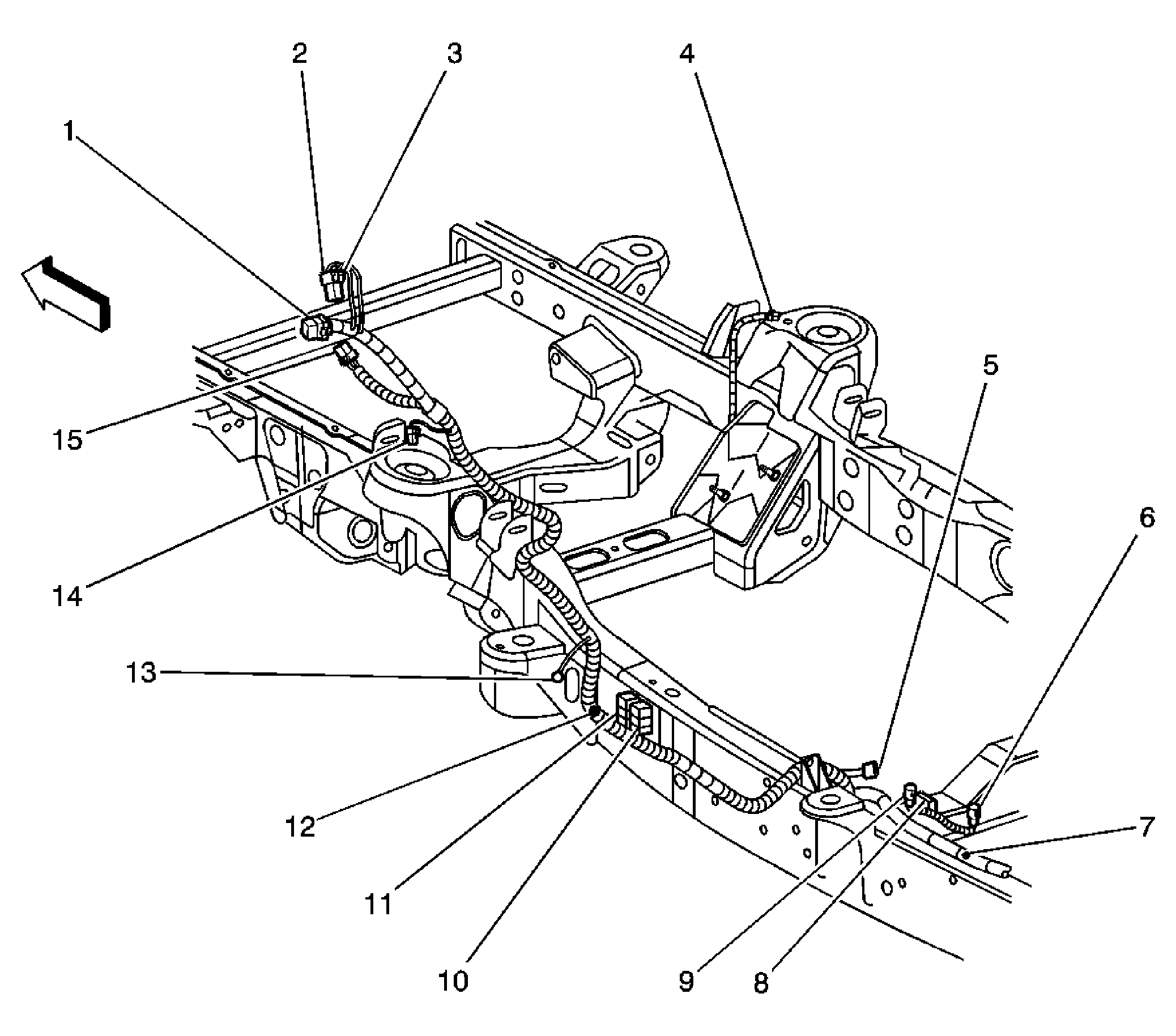

Fig 1: Component View - Chassis Harness Routing (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block Underhood - C3
2	Fuse Block Underhood - C7
3	Fuse Block Underhood - C8 (UY7)
4	Wheel Speed Sensor (WSS) Connector - RF
5	Brake Pressure Differential Switch Connector (Light Duty)
6	Evaporative Emission (EVAP) Canister Vent Solenoid Connector (Gas)
7	S301
8	Electronic Brake Control Module (EBCM) Connector (JL4)/Electronic Brake Control Module (EBCM) - C2 (w/o JL4)
9	Electronic Brake Control Module (EBCM) - C1 (w/o JL4)
10	Trailer Right Stop/Turn Relay (UY7)
11	Trailer Left Stop/Turn Relay (UY7)
12	S315 (JL4)
13	G300
14	Wheel Speed Sensor (WSS) Connector - LF
15	C101

Fig 2: Component View - LF Frame (JL4)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Component View - Lower Left Of I/P (JL4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Speed/Position Sensor
2	Steering Column Jacket Assembly

Fig 4: Component View - Center Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tow/Haul Switch
2	Traction Control Switch (JL4)
3	Inflatable Restraint I/P Module Disable Switch (Heavy Duty)
4	Blower Motor Switch - Auxiliary (C36)

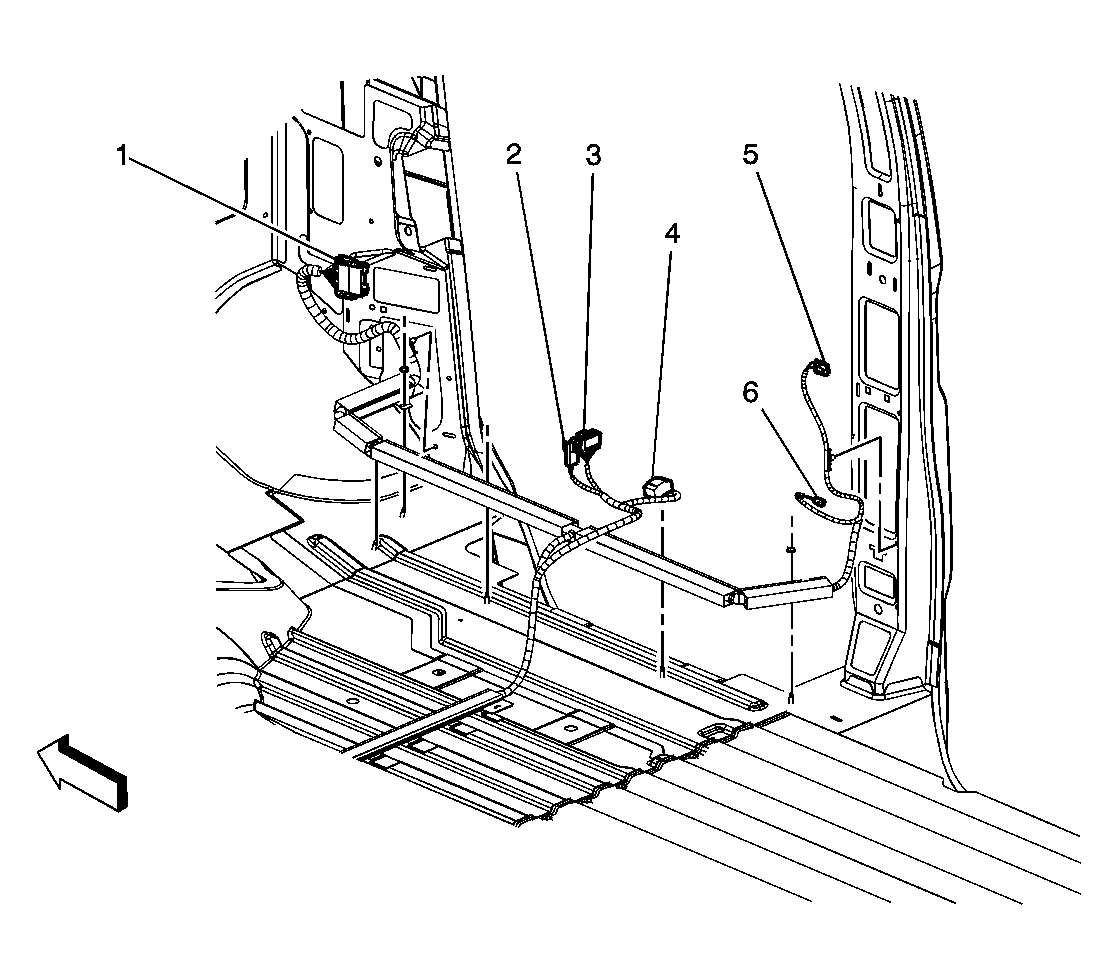

Fig 5: Component View - Body Harness Routing - Right B-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C312
2	Seat Belt Pretensioner Connector - RF (Light Duty)
3	C306
4	Yaw and Lateral Acceleration Sensor Connector (JL4)
5	Door Contact Plate Connector - Right Side (Passenger/Cargo w/AU3)
6	Door Jamb Switch Connector - RR Side (Passenger/Cargo)

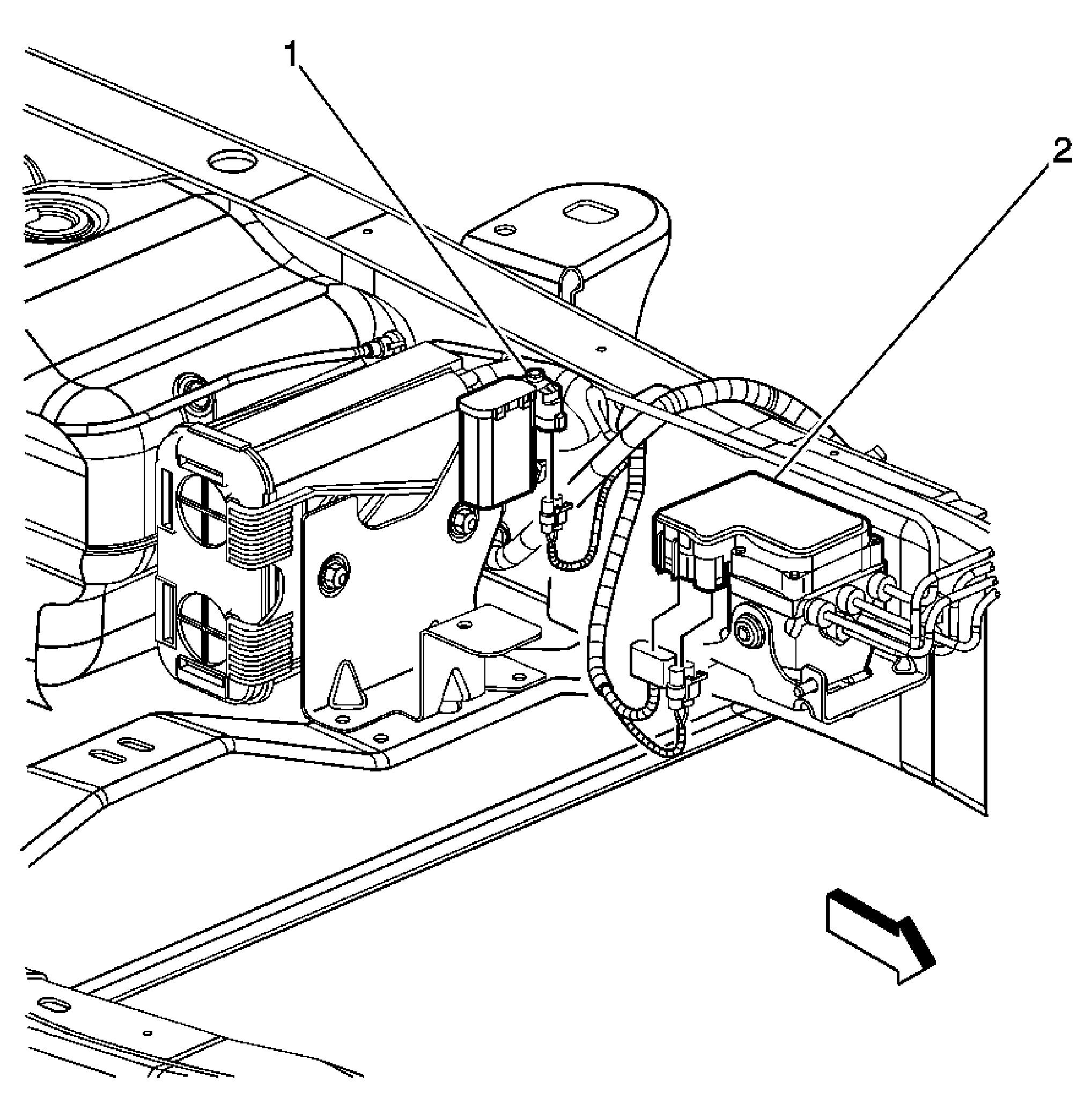

Fig 6: Component View - Left Side Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emission (EVAP) Canister Vent Solenoid
2	Electronic Brake Control Module (EBCM)

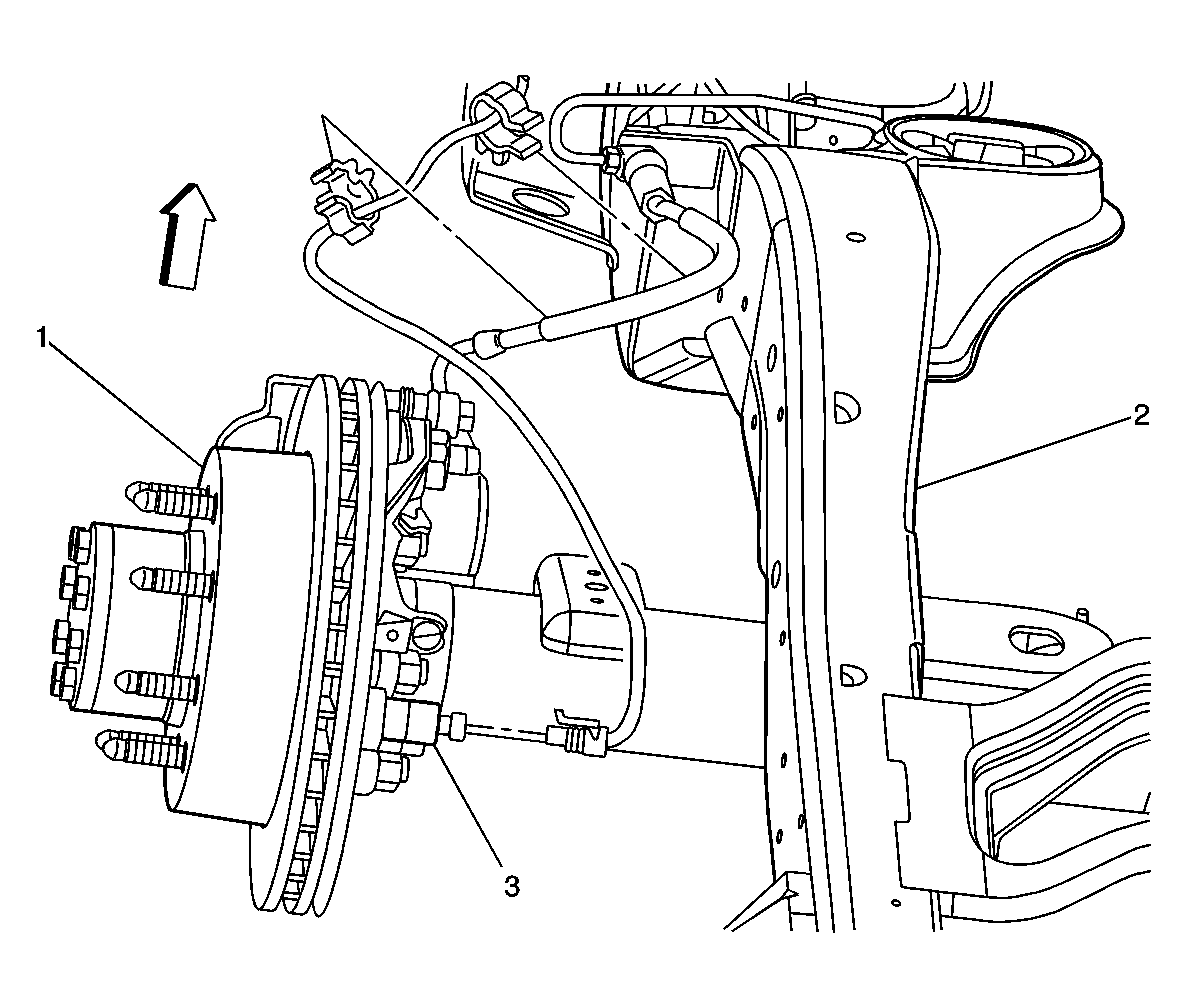

Fig 7: Component View - LR Frame (JL4)

Courtesy of GENERAL MOTORS CORP.

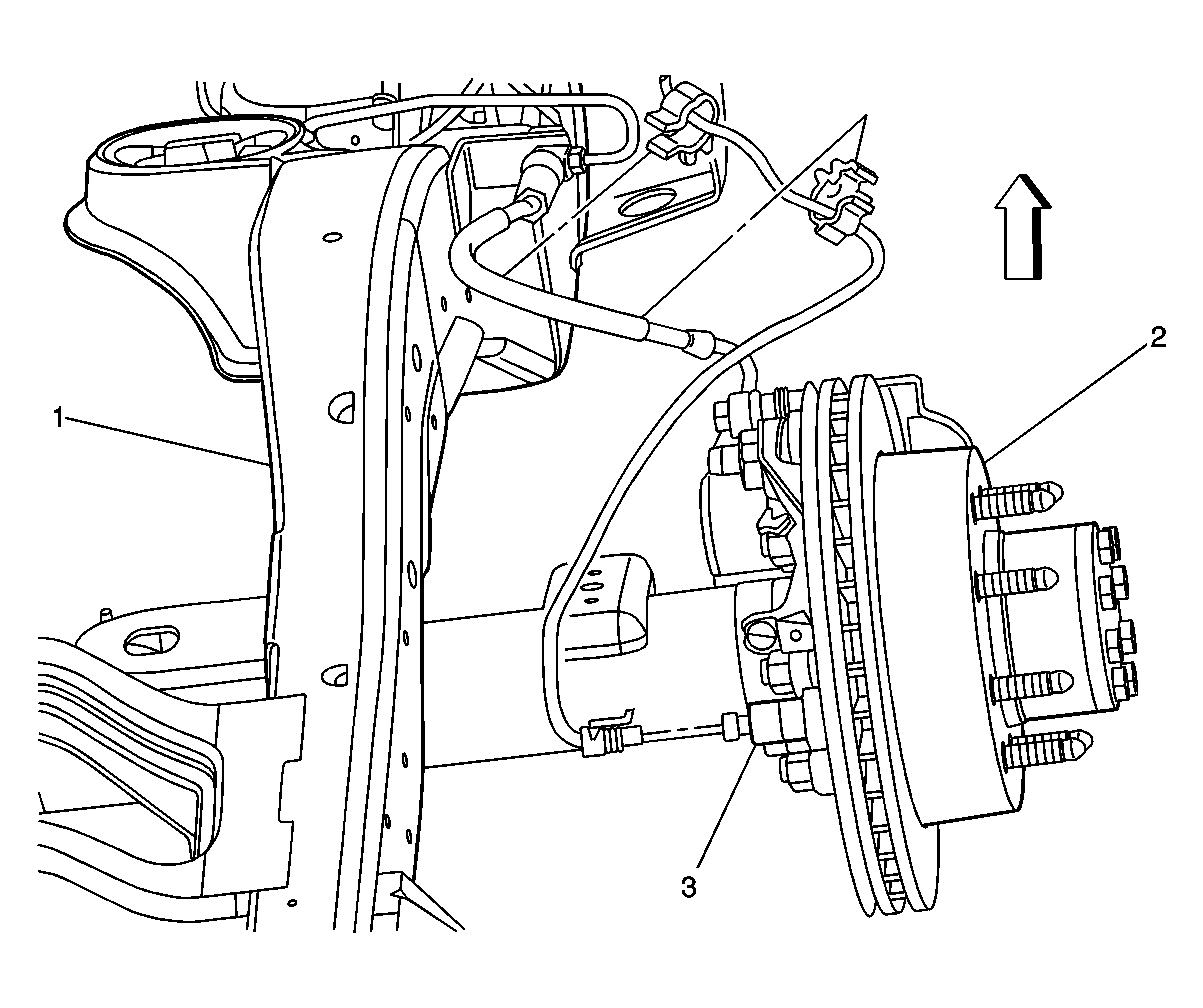

Fig 8: Component View - RR Frame (JL4)

Courtesy of GENERAL MOTORS CORP.
