Stationary Windows Component Views

Fig 1: Component View - Front Of Vehicle (DF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	Ambient Air Temperature Sensor

Fig 2: Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror Connector (DF5/UE1)
2	Inside Rearview Mirror

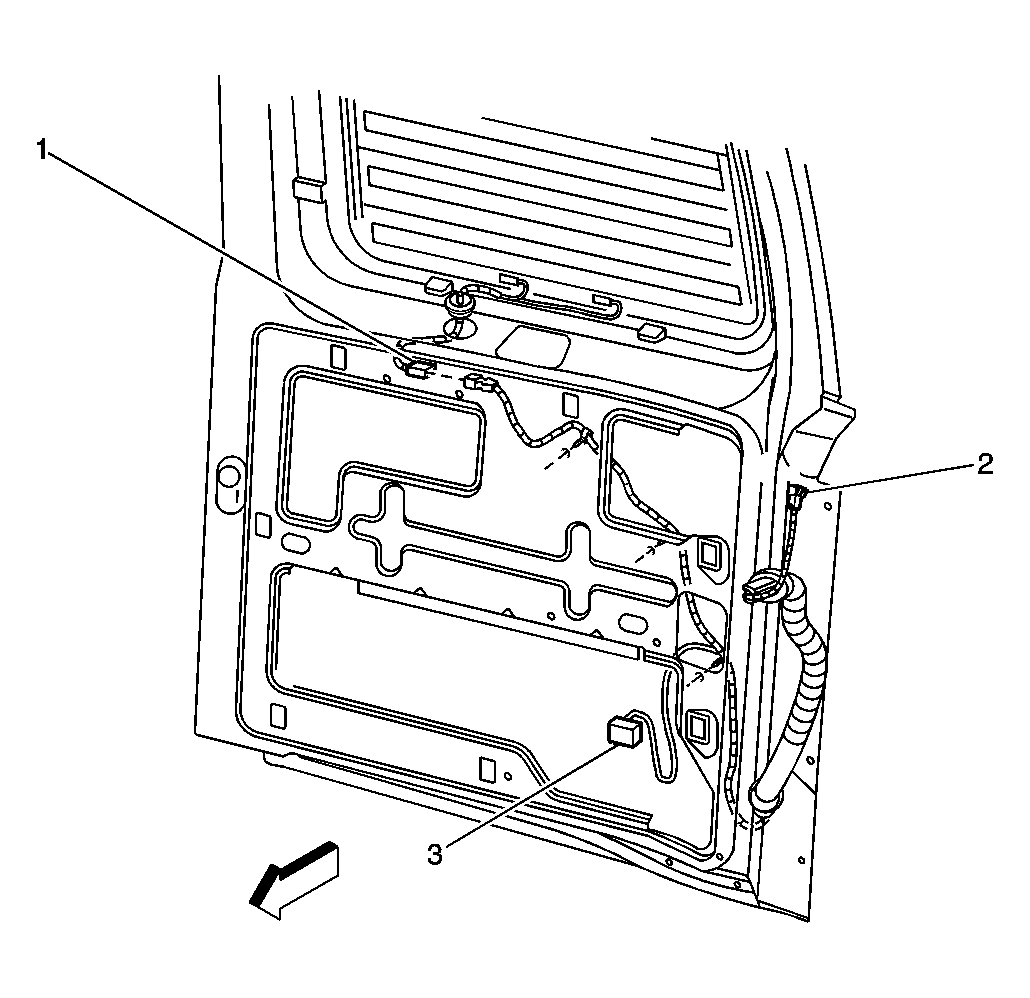

Fig 3: Component View - Left Rear Cargo Door Harness Routing (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid Connector - Left (C49)
2	C411
3	Speaker Connector - LR Door (UB1/UC6)

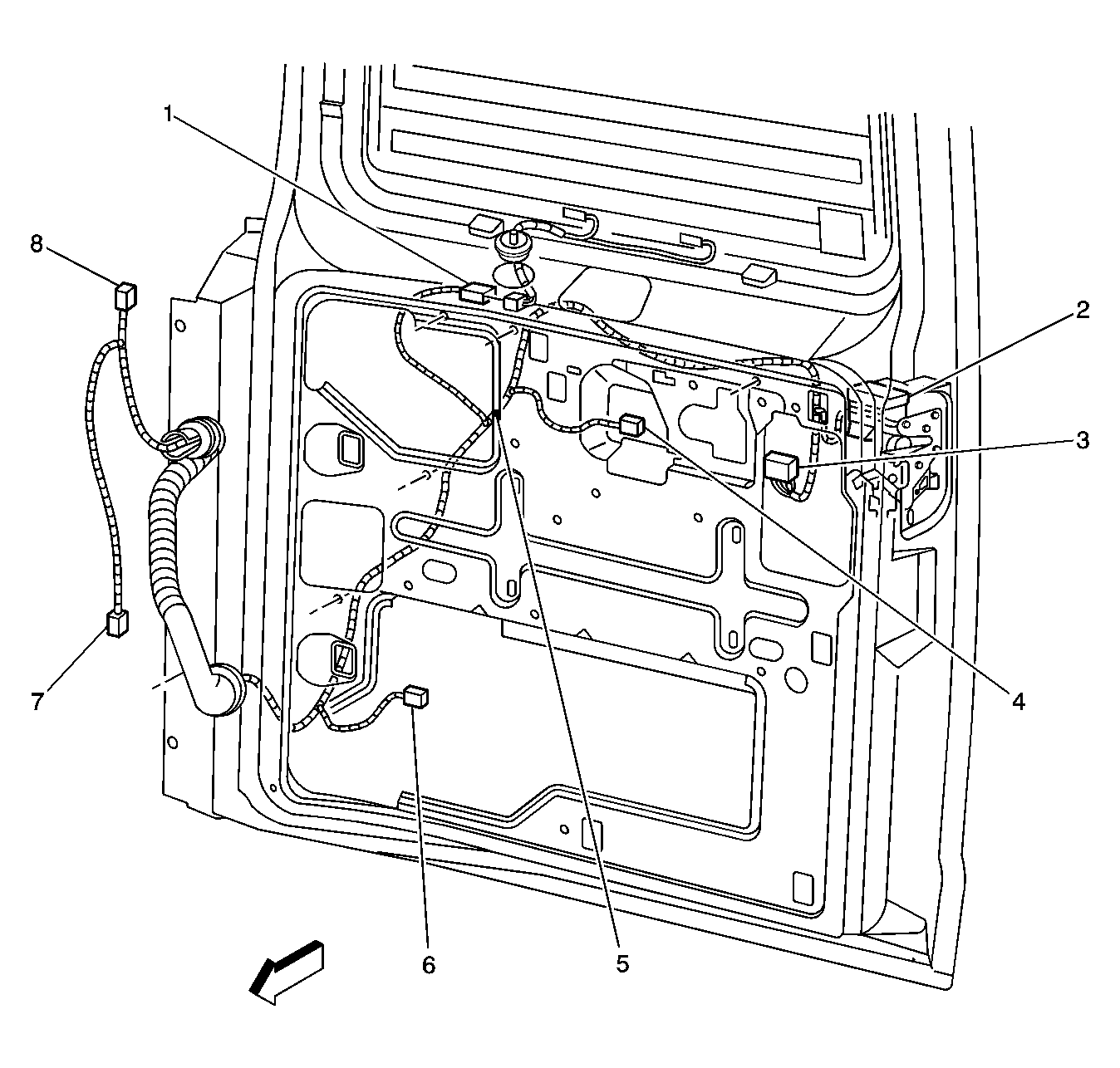

Fig 4: Component View - Right Rear Cargo Door Harness Routing (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid Connector - Right (C49)
2	Door Latch Assembly - Cargo
3	Door Lock Switch Connector - Rear Cargo (AU3)
4	License Lamp Connector
5	S902
6	Speaker Connector - RR Door (UB1/UC6)
7	C412
8	C400
